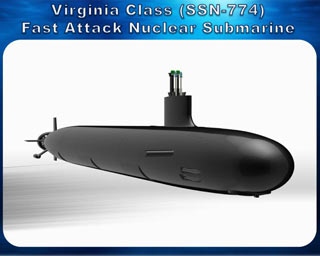

Virginia Class - Submarine

Virginia Class - Submarine

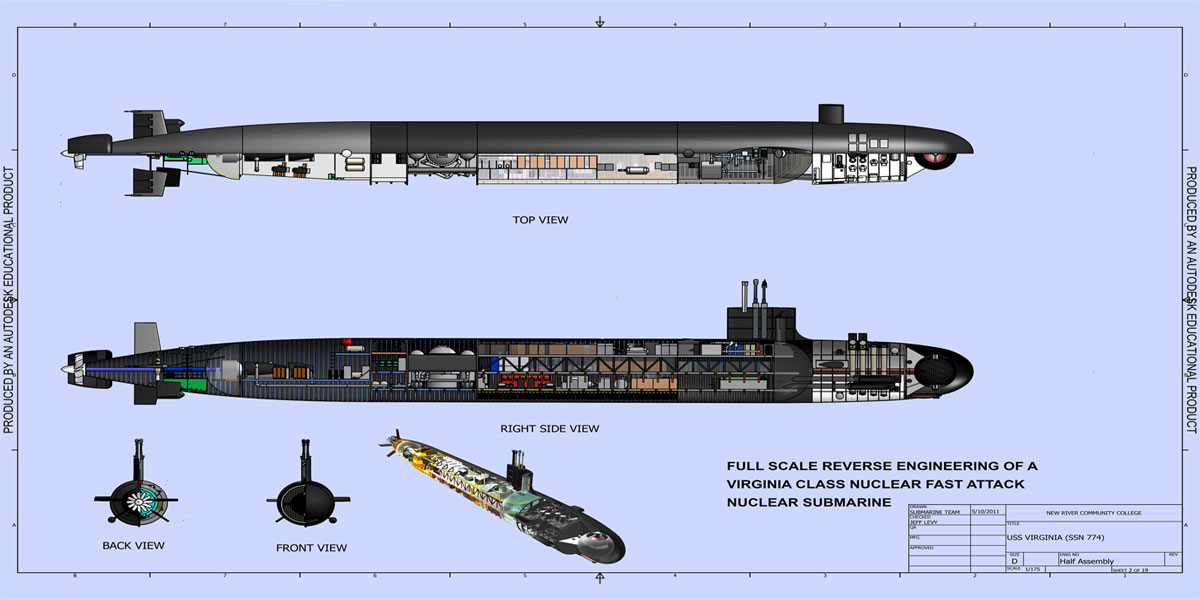

Five advanced Engineering Design Technology students along with their instructor, Jeff Levy, undertook the task of reverse engineering the most sophisticated weapon ever devised and implemented in the history of Naval war fare; the Virginia Class fast attack nuclear submarine with only information that was available in public domain as well as working with a couple former submarine officers that shared general information about the submarine from first-hand accounts.

The submarine research center in Maine also played a key role in helping the students understand the workings of this complicated boat.

“I reviewed the project and was impressed with your students’ ability to take information within the public domain and develop a believable graphical representation of a fast-attack submarine. Their work clearly demonstrates an understanding of spatial arrangement, functional realism and a high-level of competency utilizing the full capability of the design, too.”
Chris Miner – VA Class Project Manager, USN.

VA Class - Submarine Details

USS Virginia SSN 774 Section 7

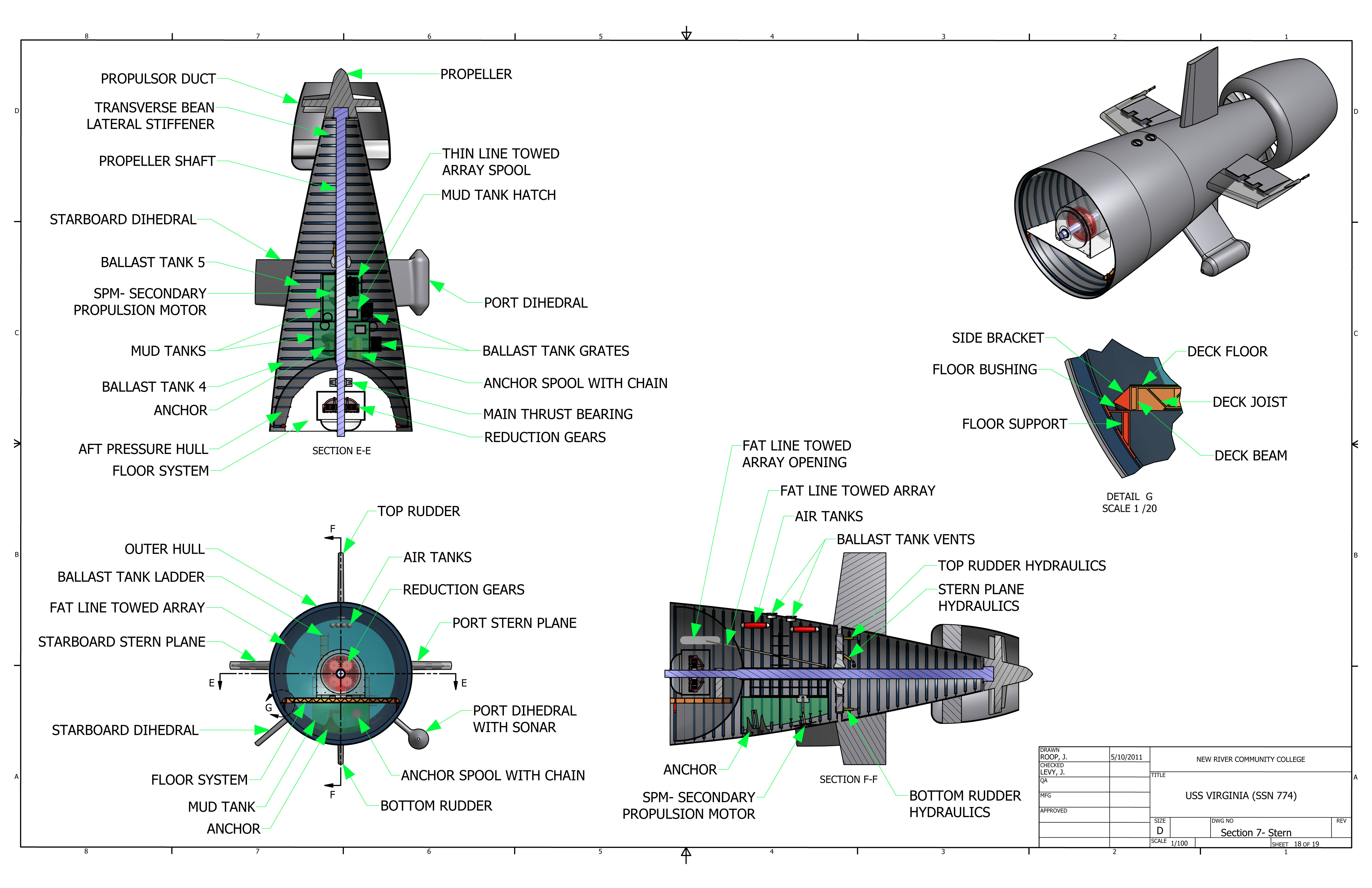

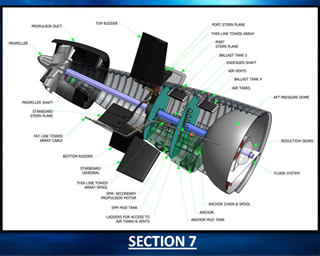

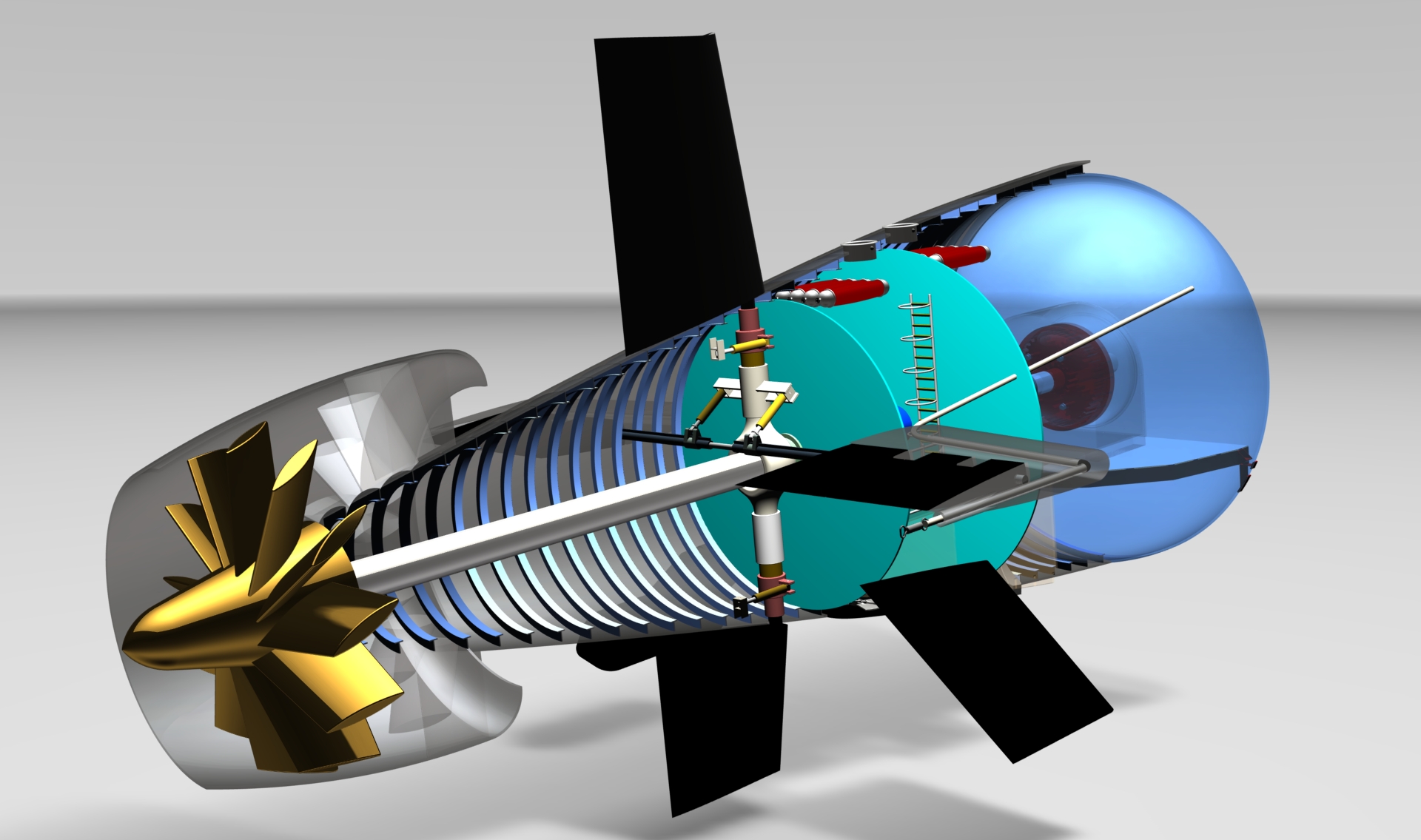

USS Virginia SSN 774 Section 7 - Stern

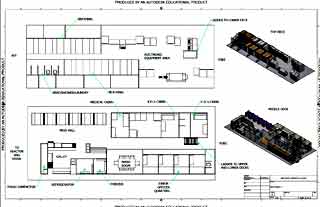

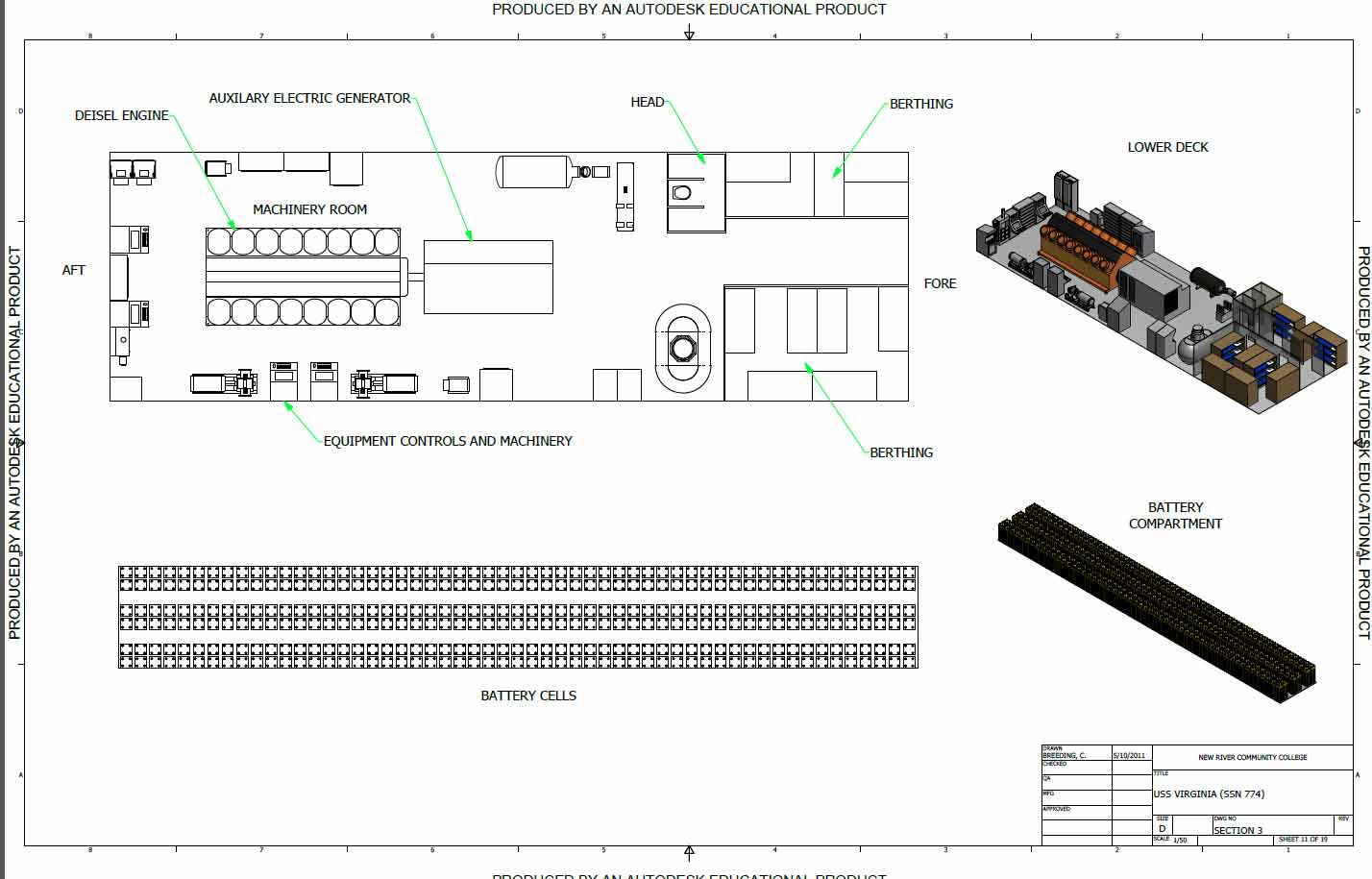

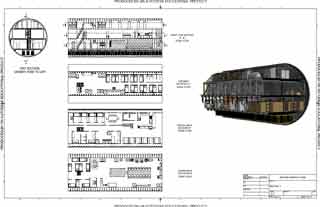

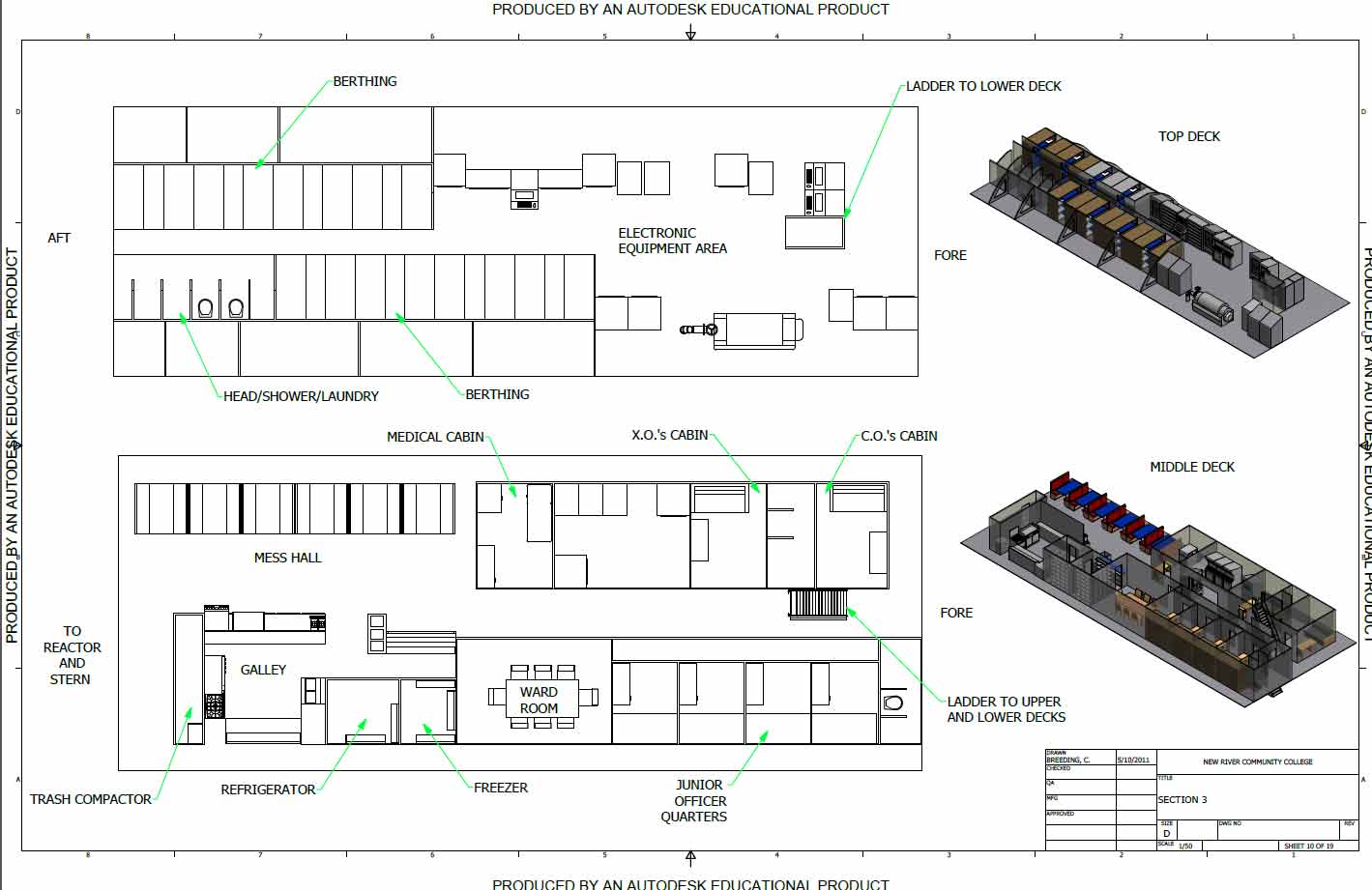

Bottom Deck Floor Layout Section 1

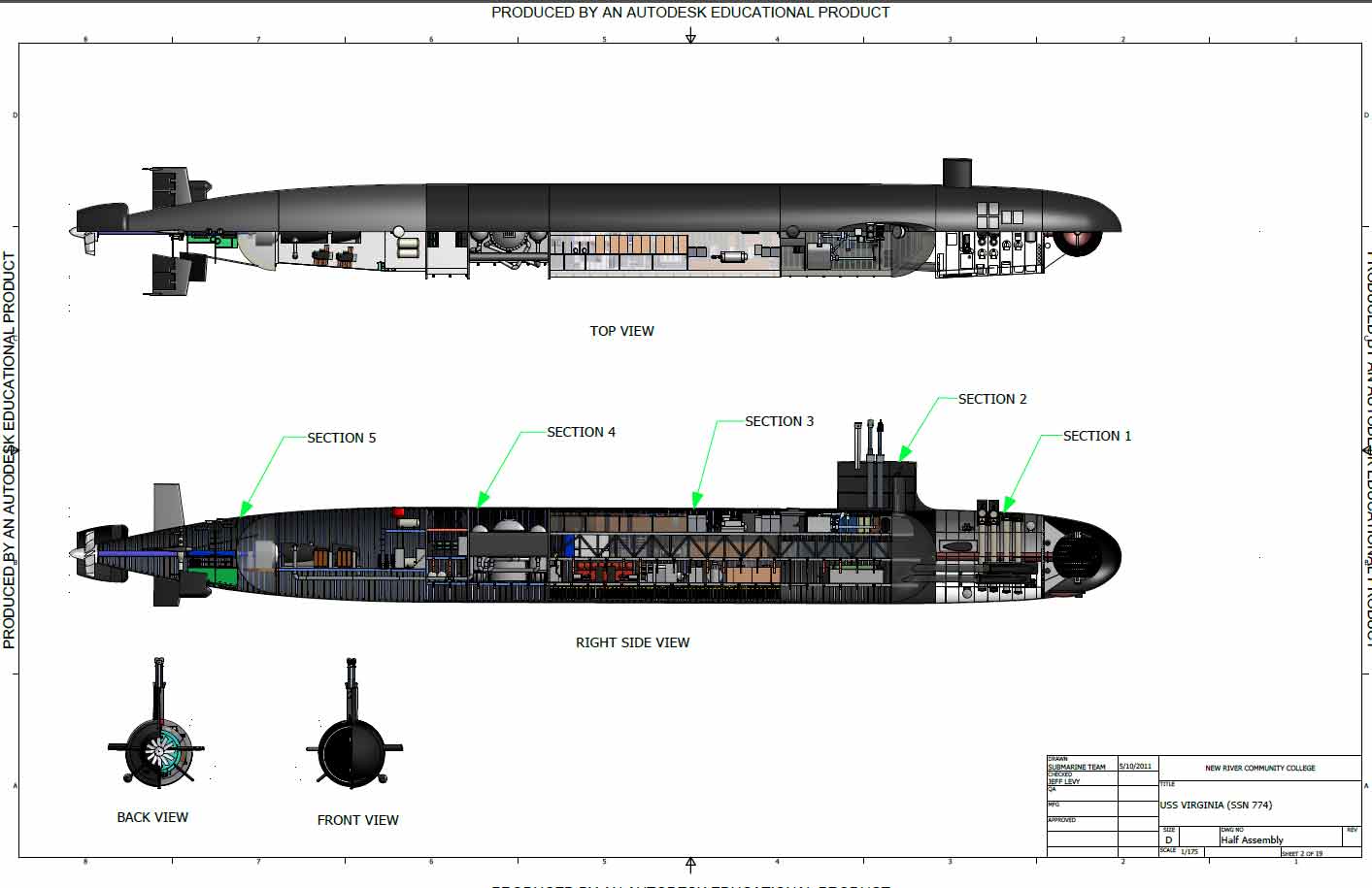

Half Assembly
Fall Assembly
Fall Assembly 1

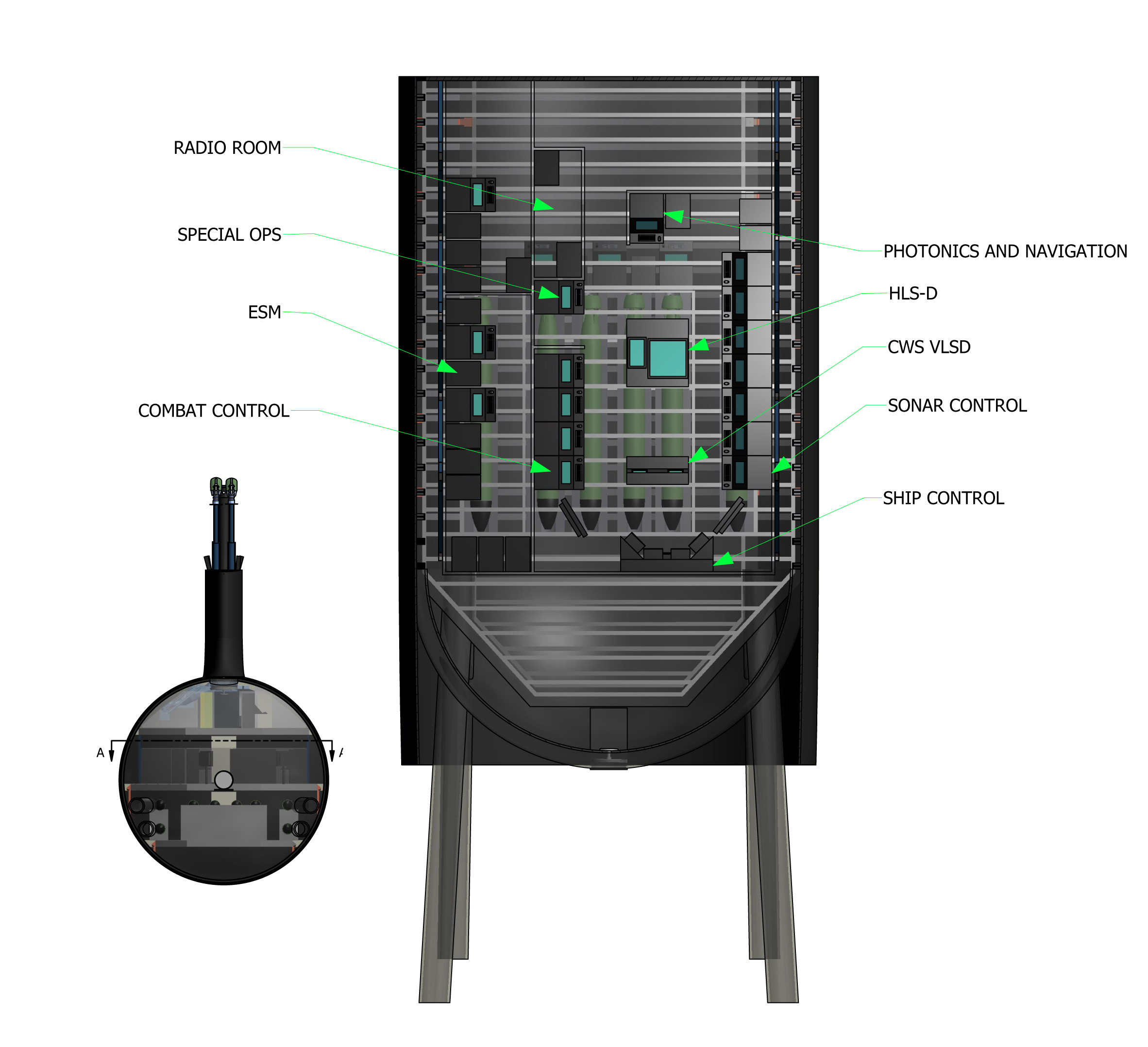

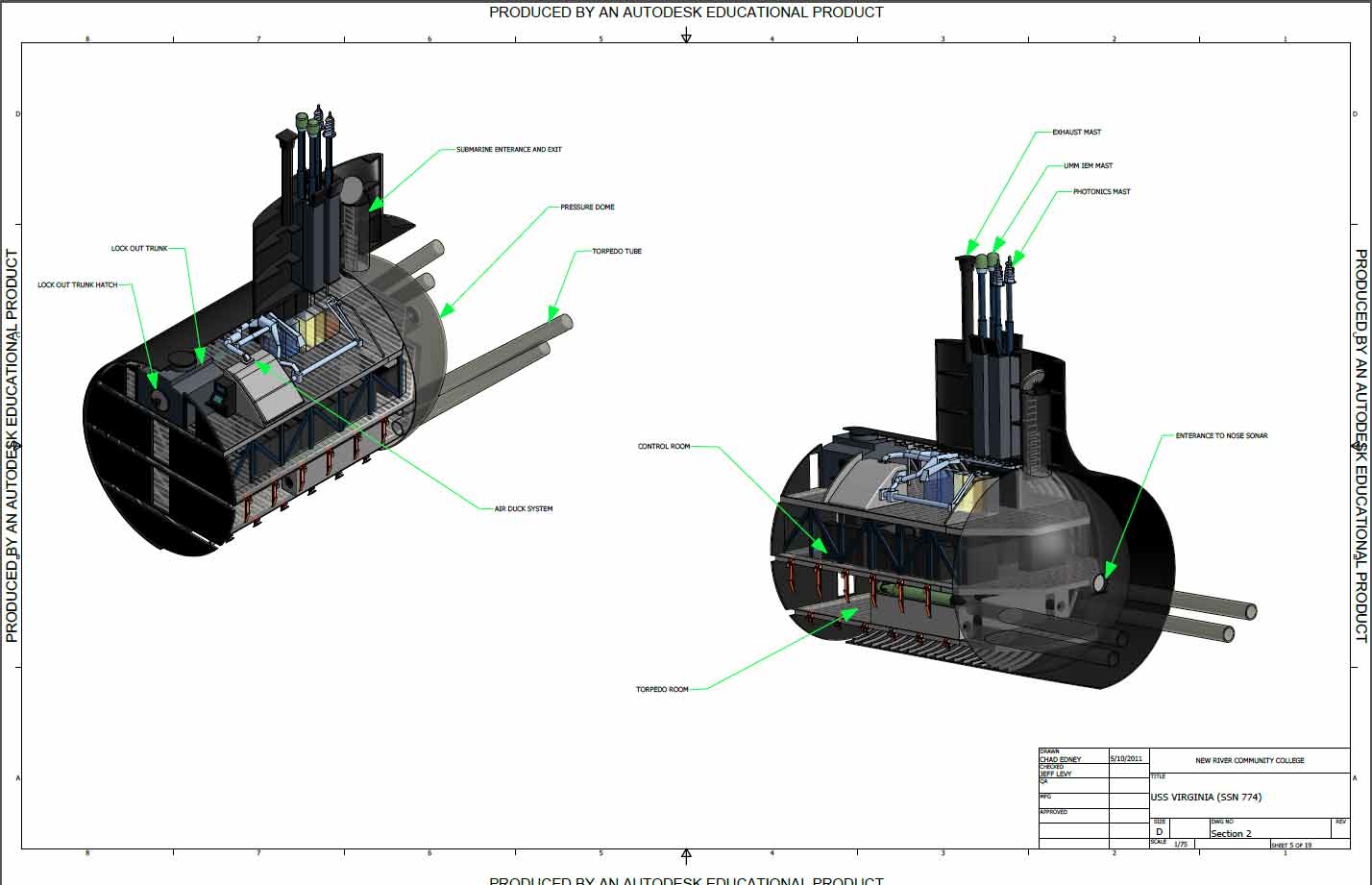

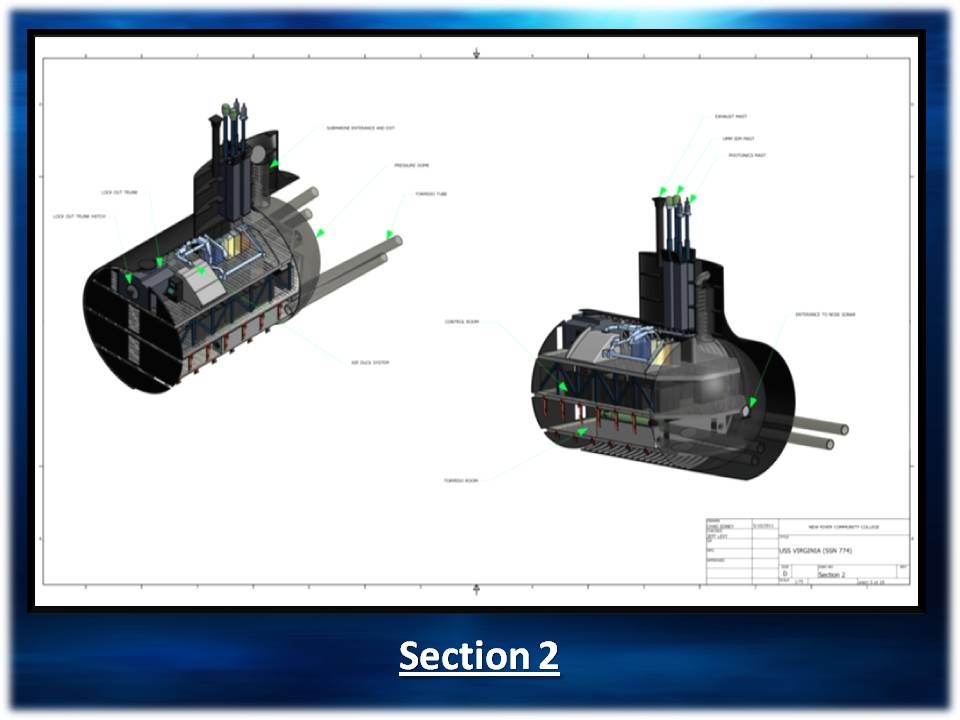

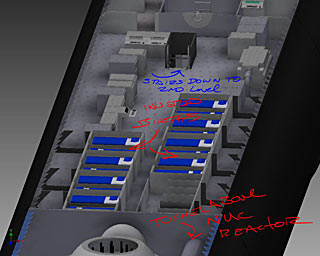

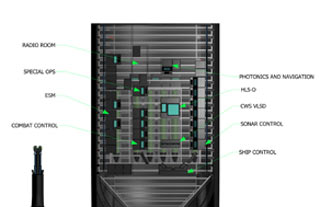

Section 2 Middle Deck
Section 2 Full View

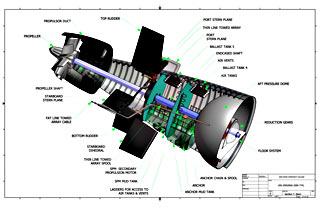

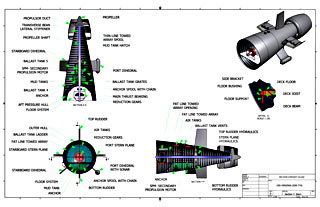

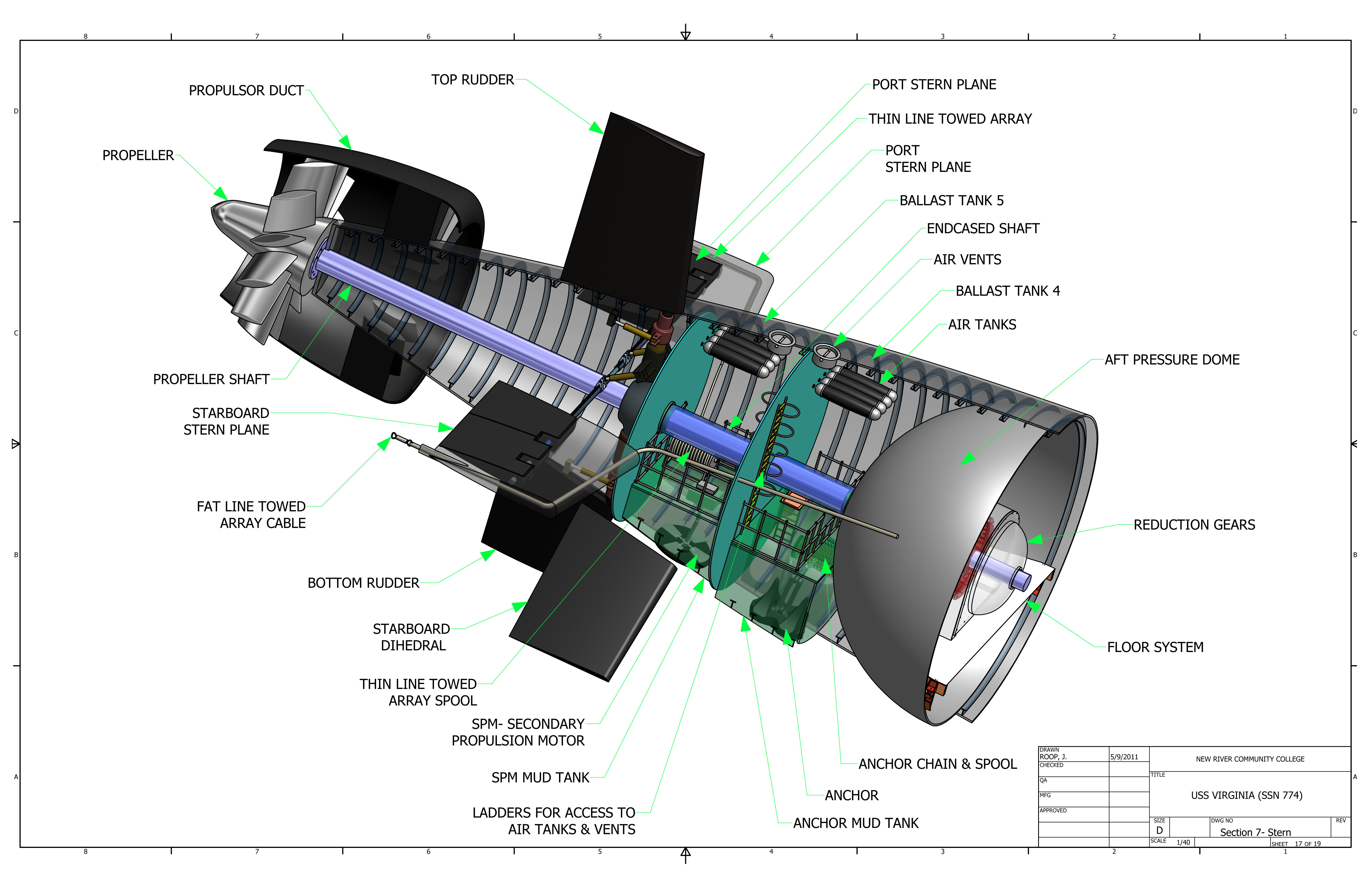

Aft Section Detail

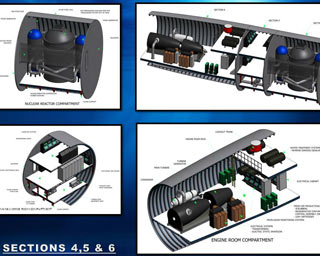

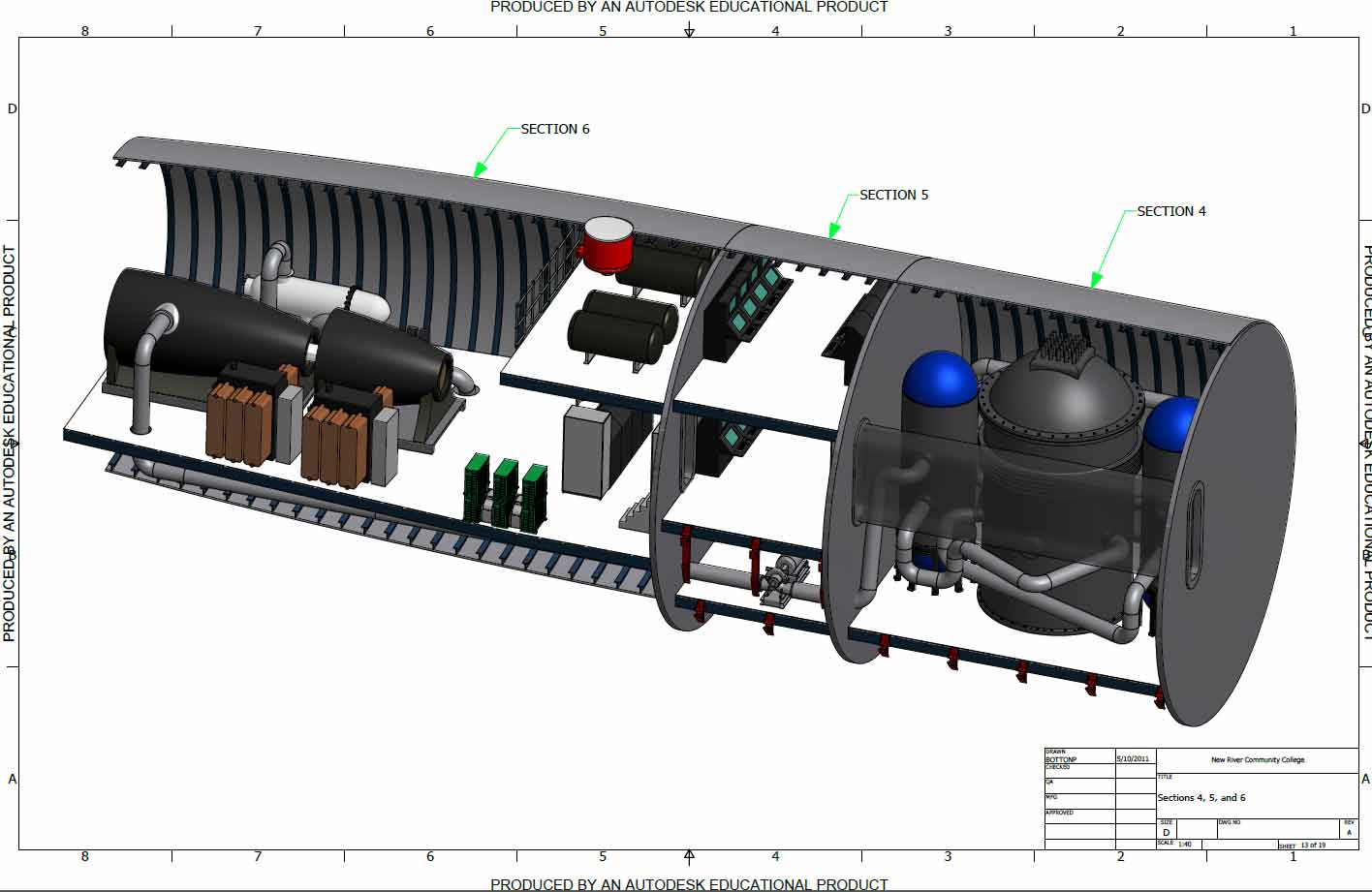

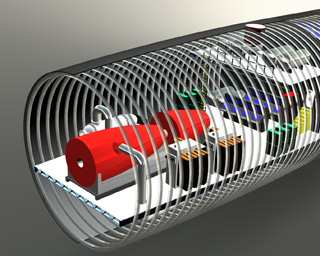

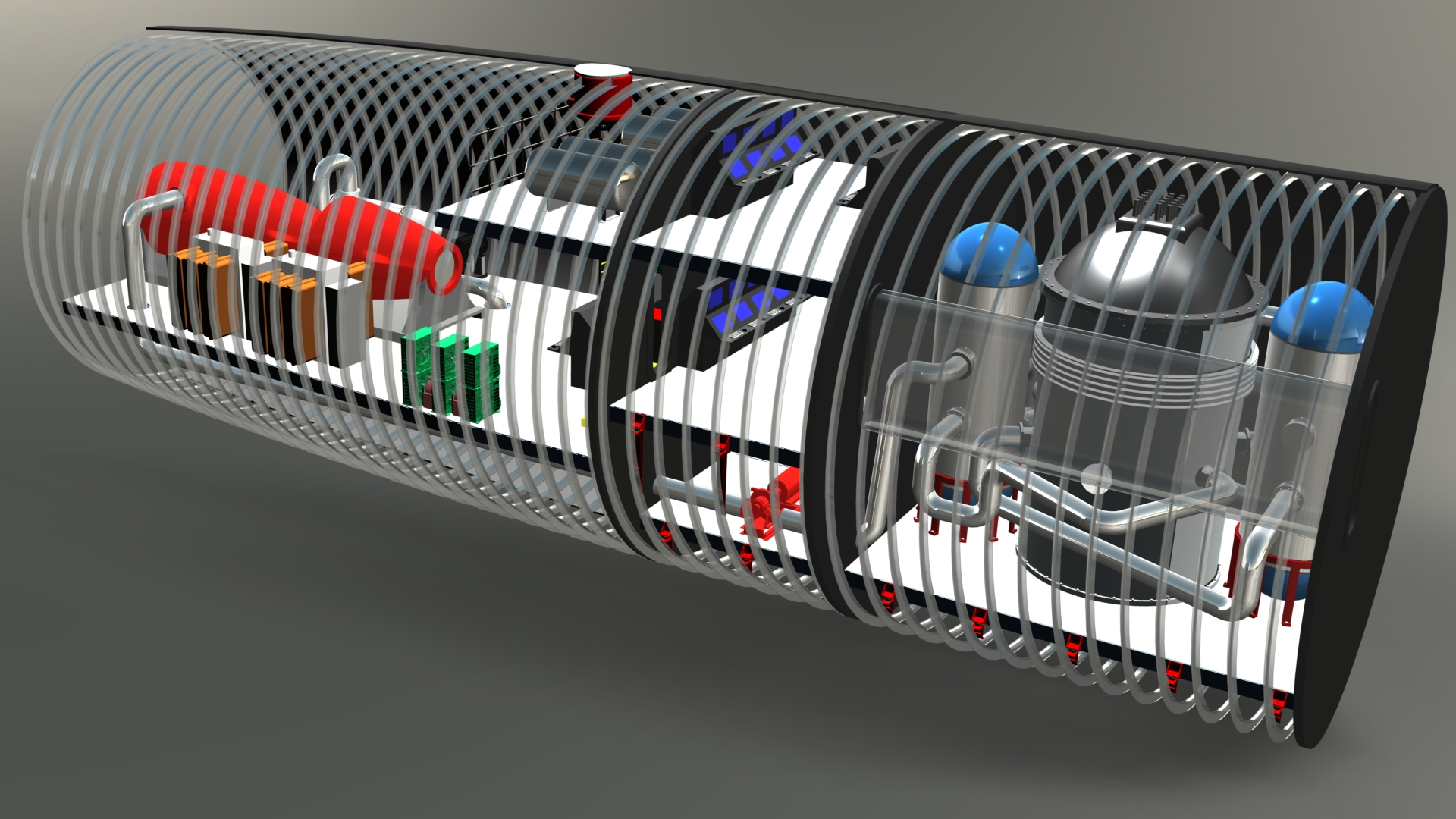

Section 4,5,6
Section 4,5, and 6

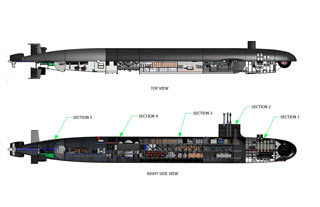

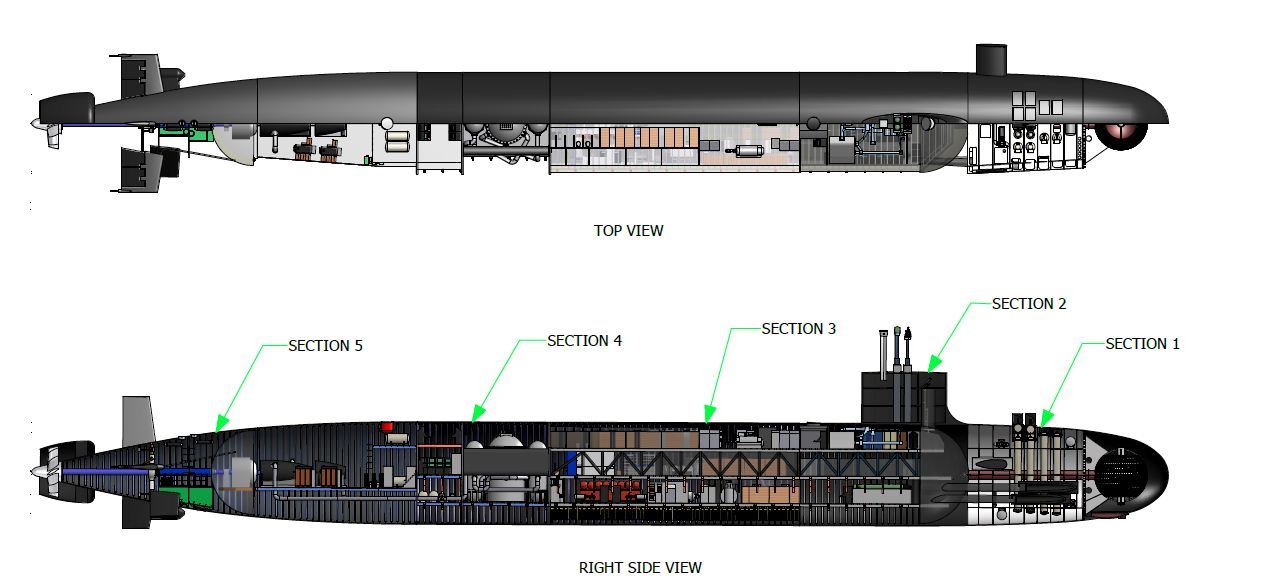

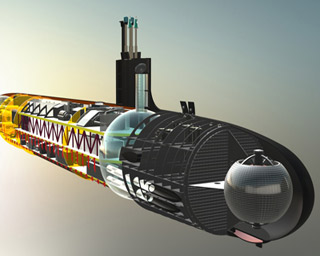

Full View

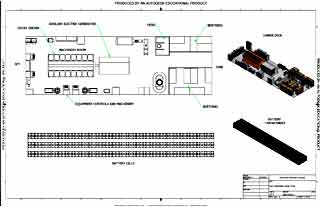

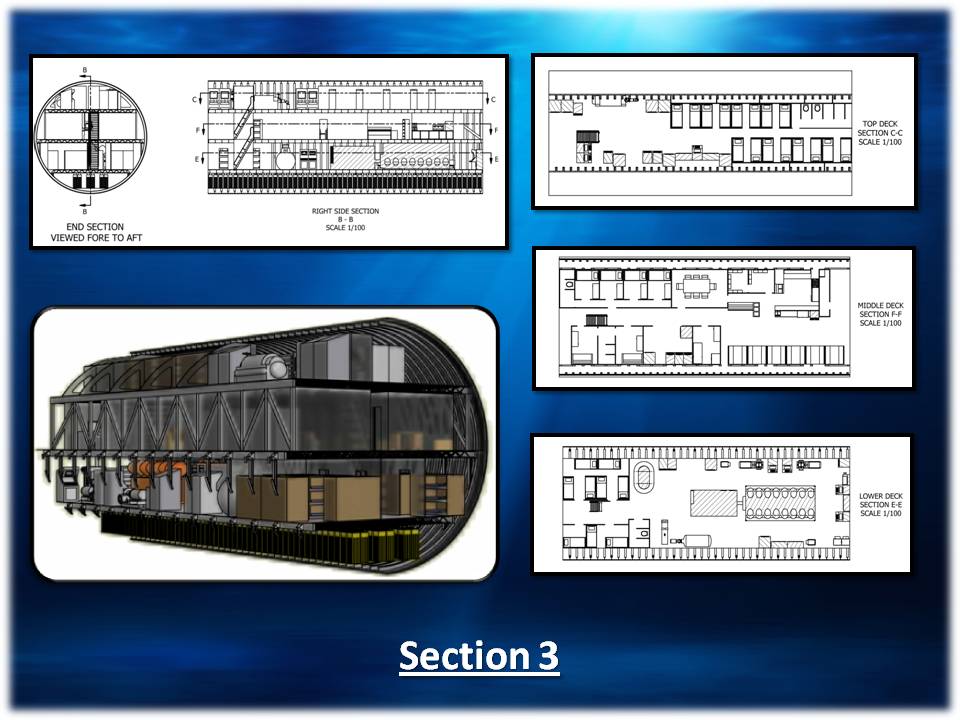

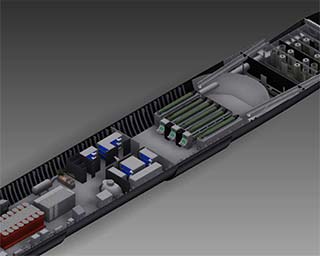

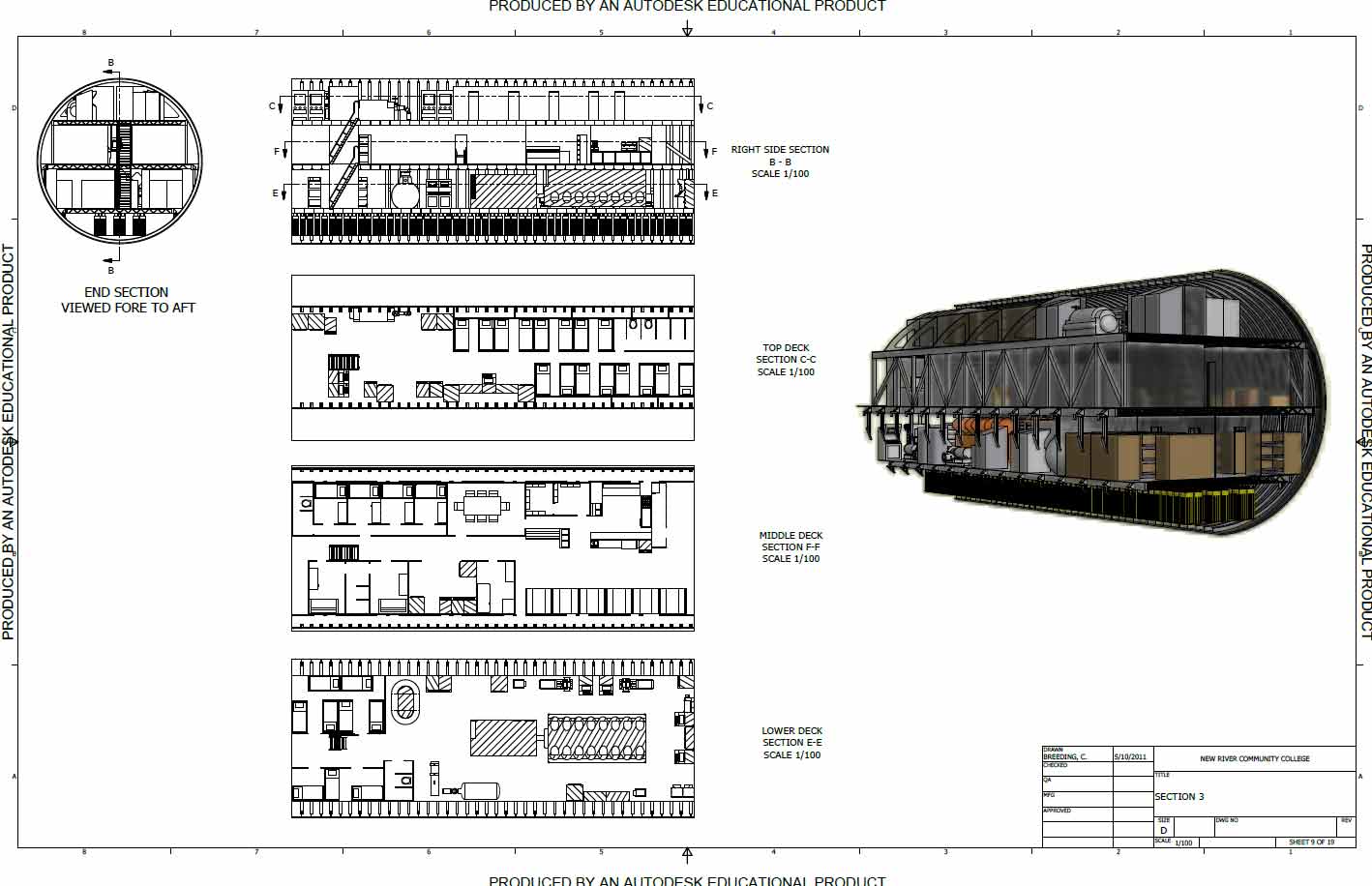

Section 3
Section 3
USS Virginia (SSN 774)

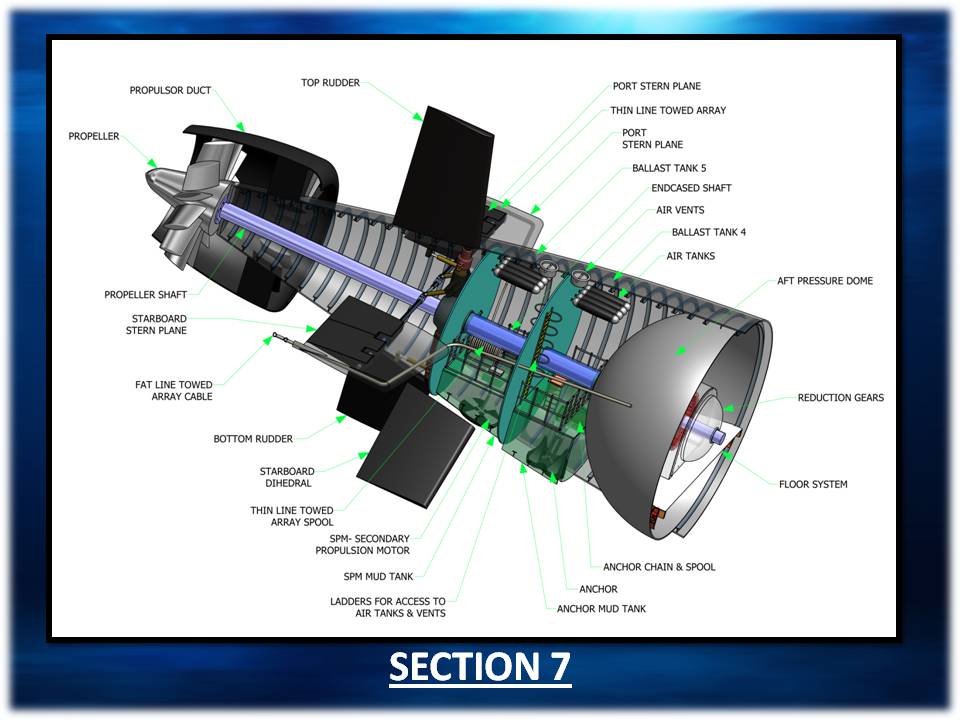

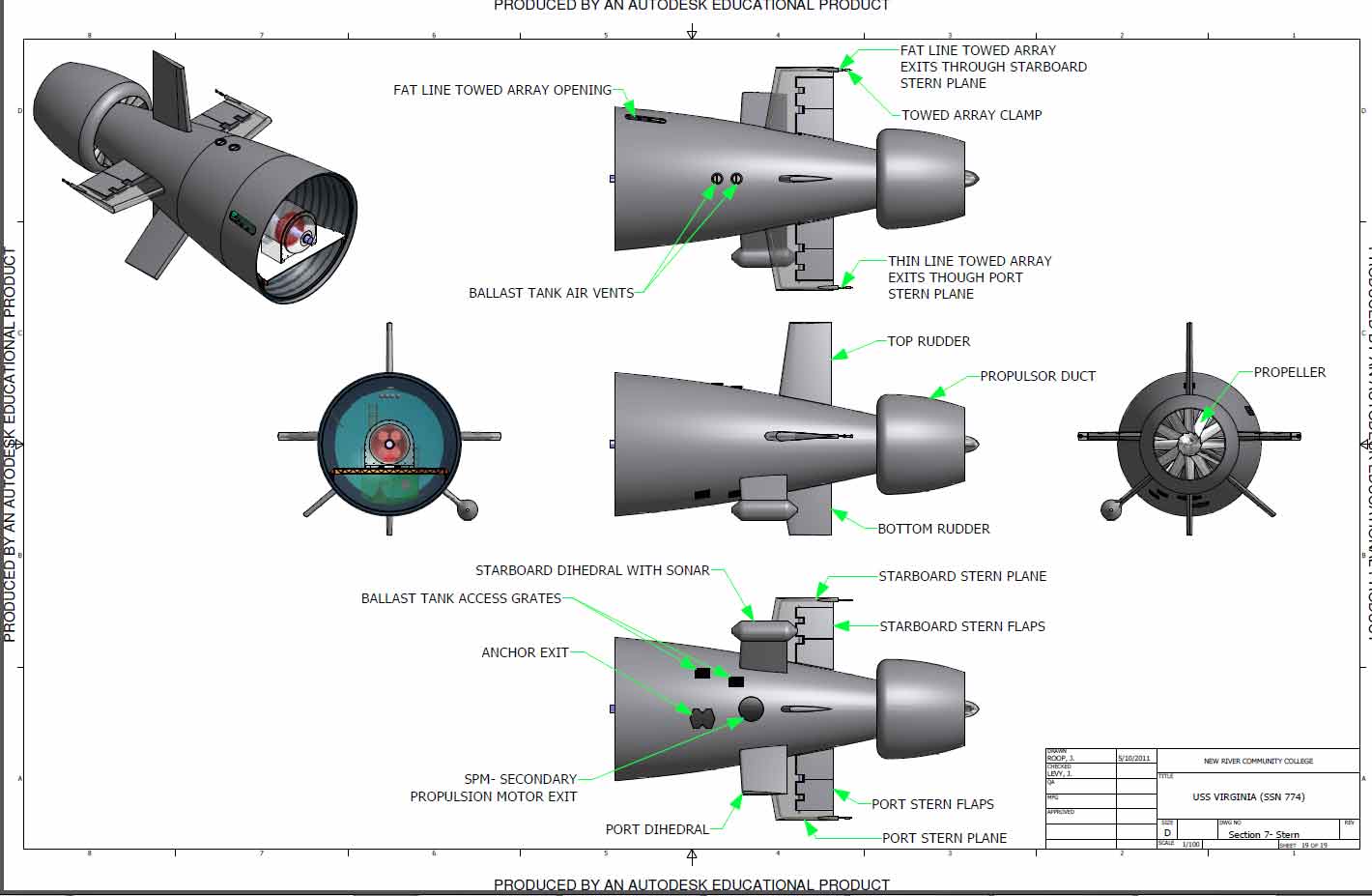

Section 7 Stem

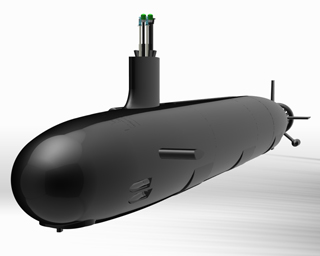

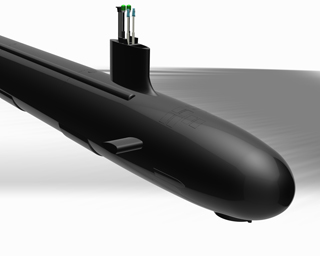

VA Class Renders

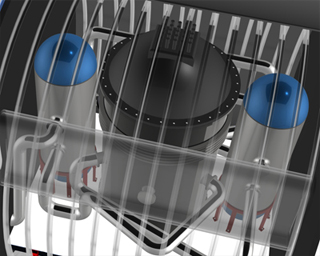

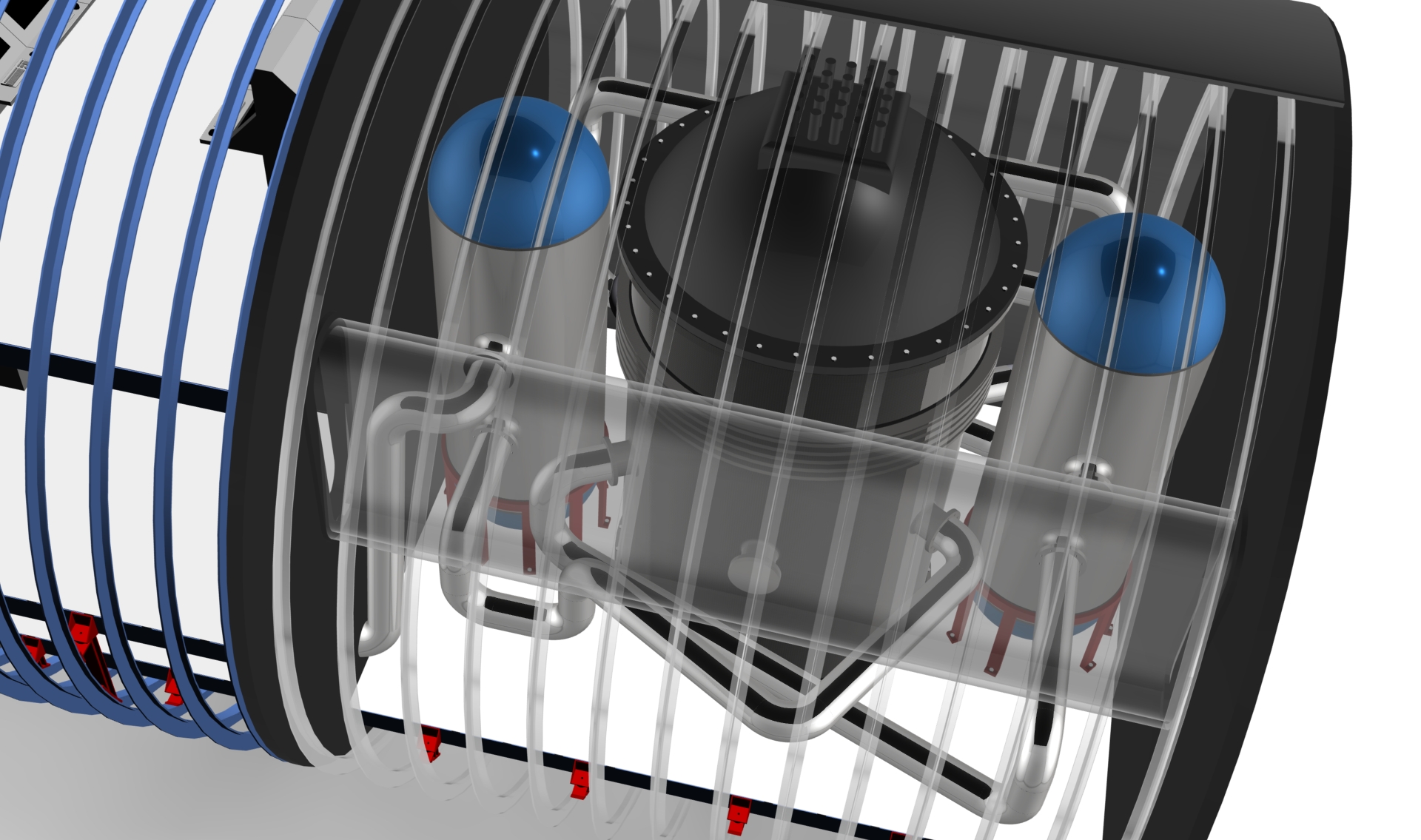

Reactor Room

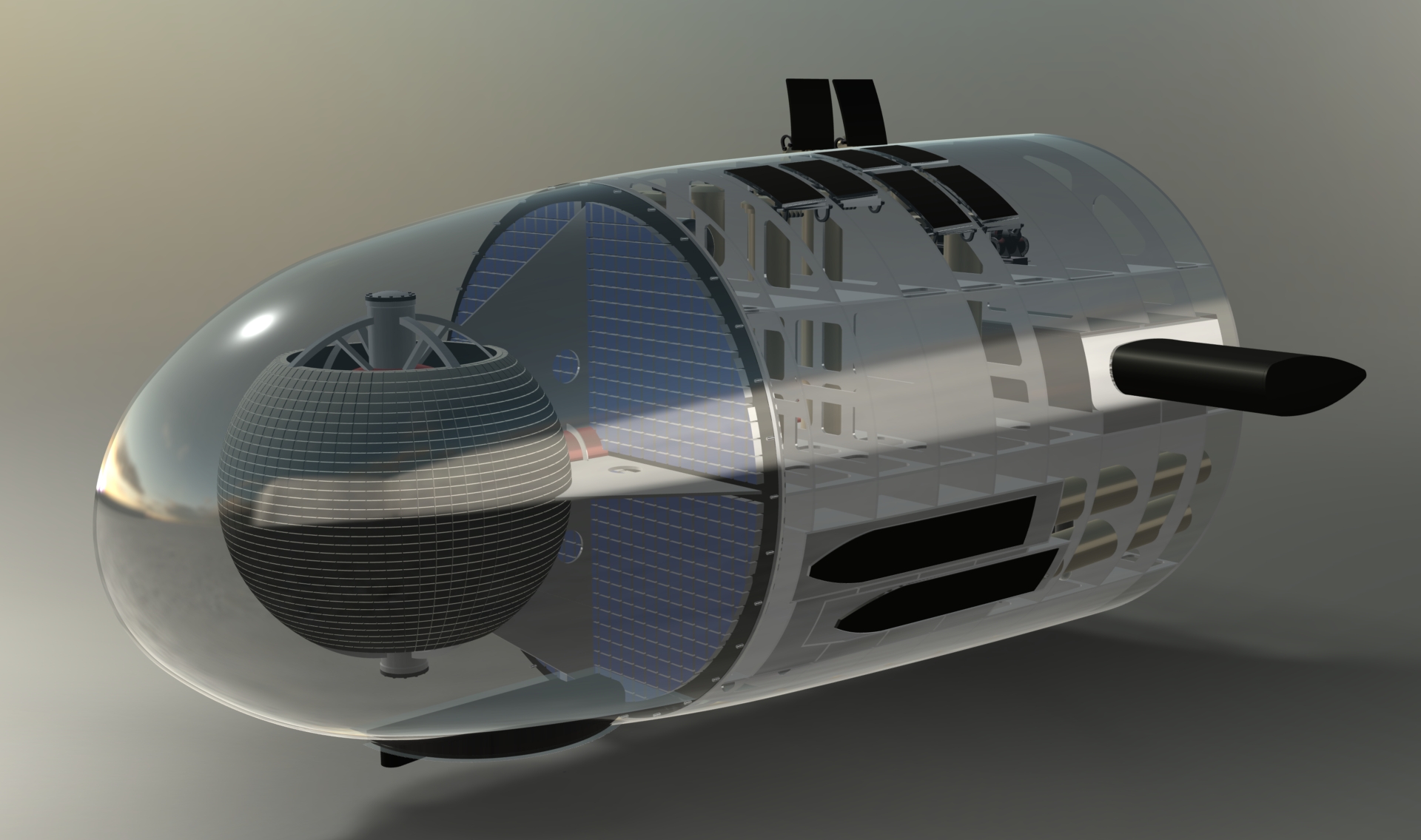

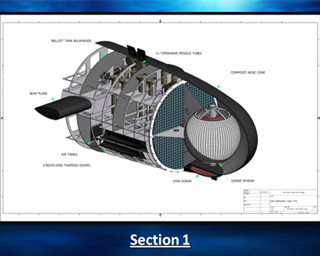

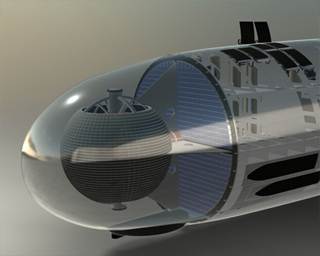

Section 1 Bow Dome

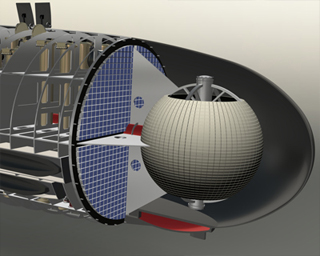

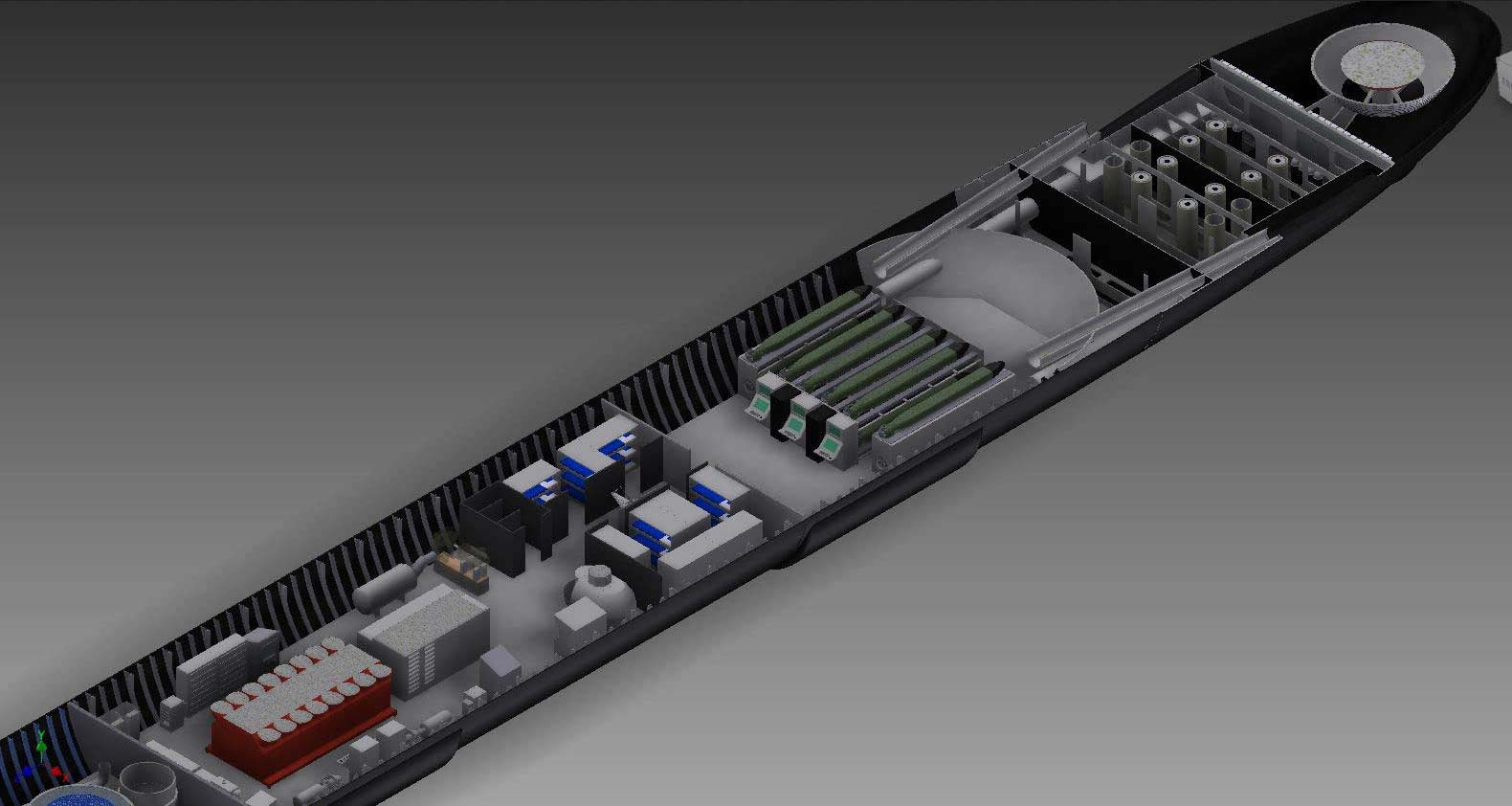

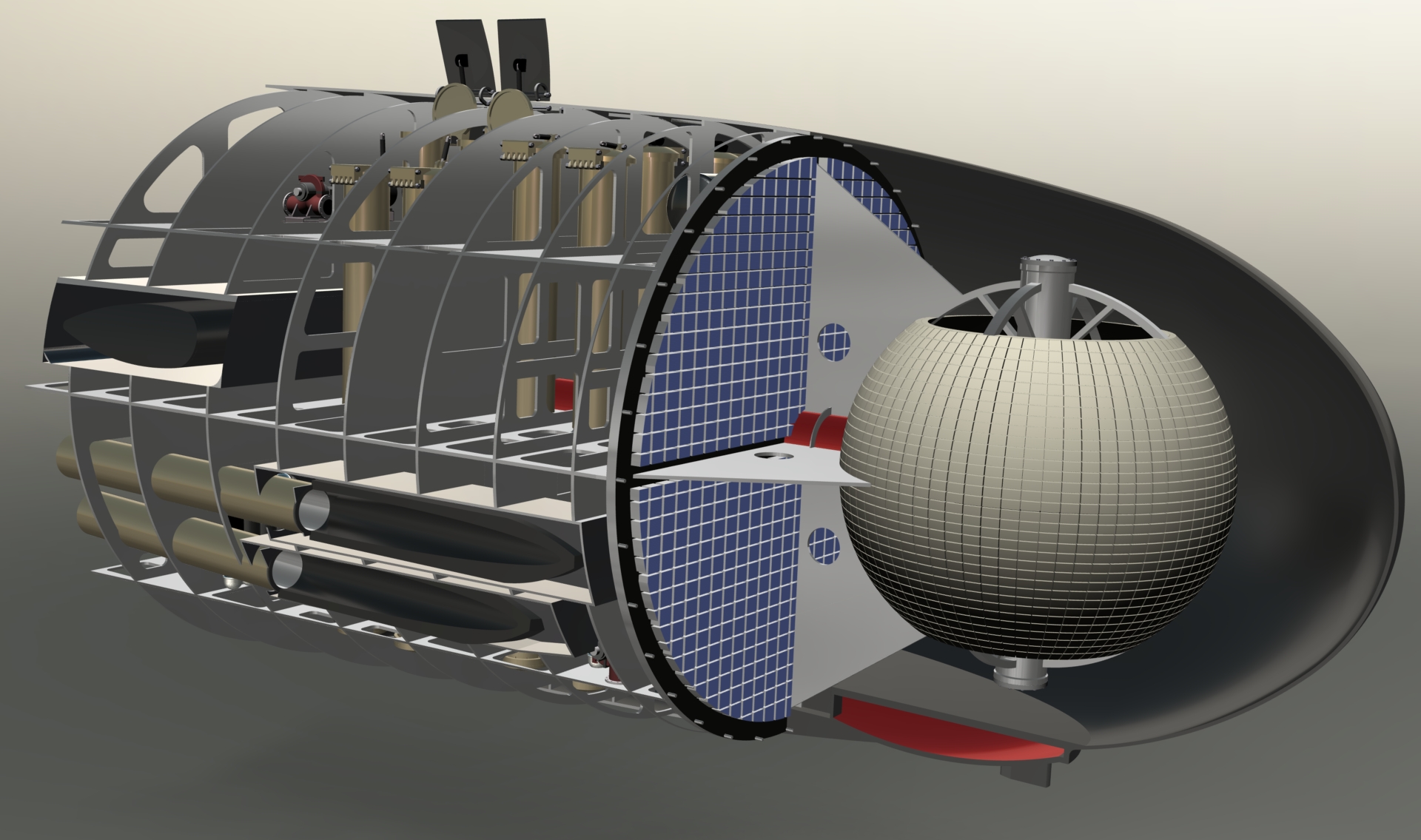

Section 1 Cut Away

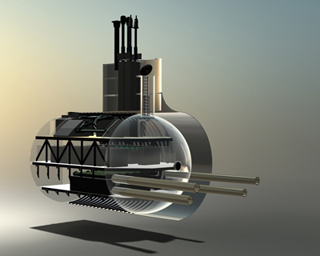

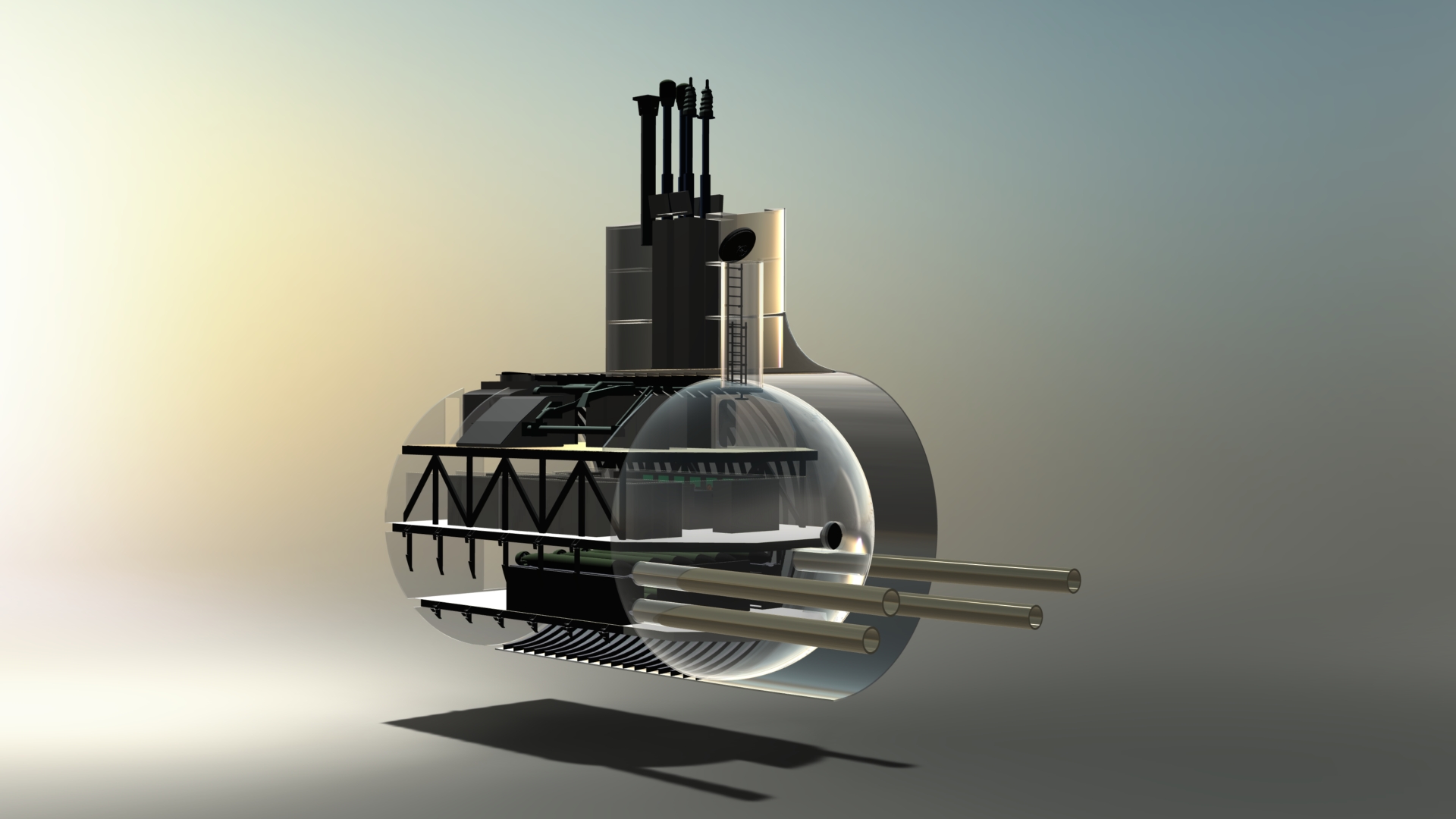

Section 2 Half Assembly ISO Right Site

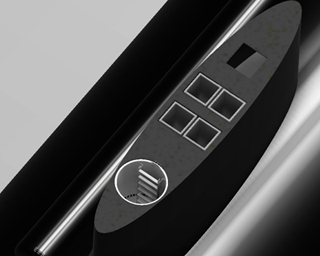

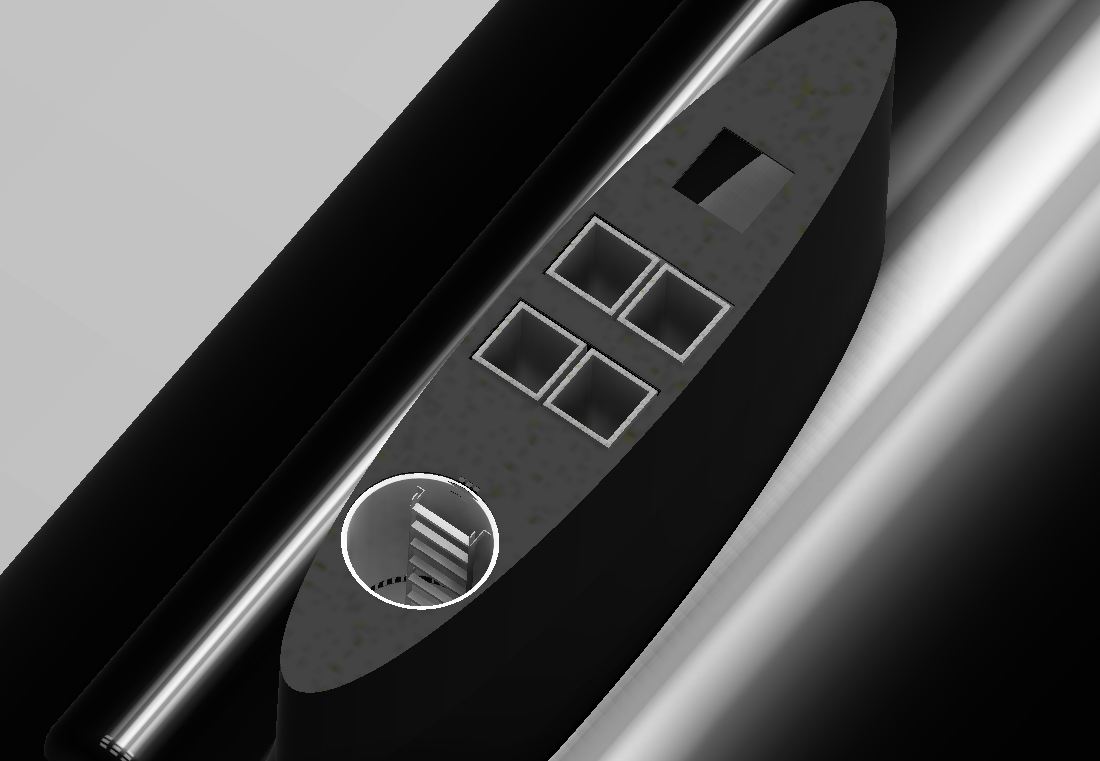

Section Ladder Mast Sail
Section 2 Half Assembly ISO Right Site
Section 4-5-6

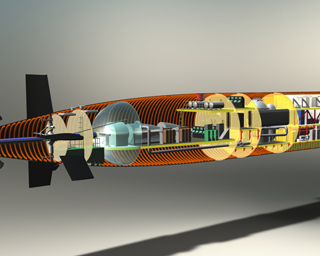

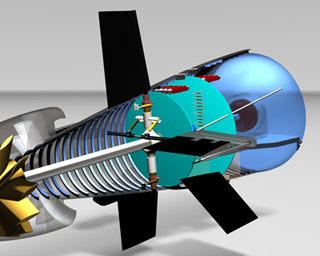

Stern Back
Section 7

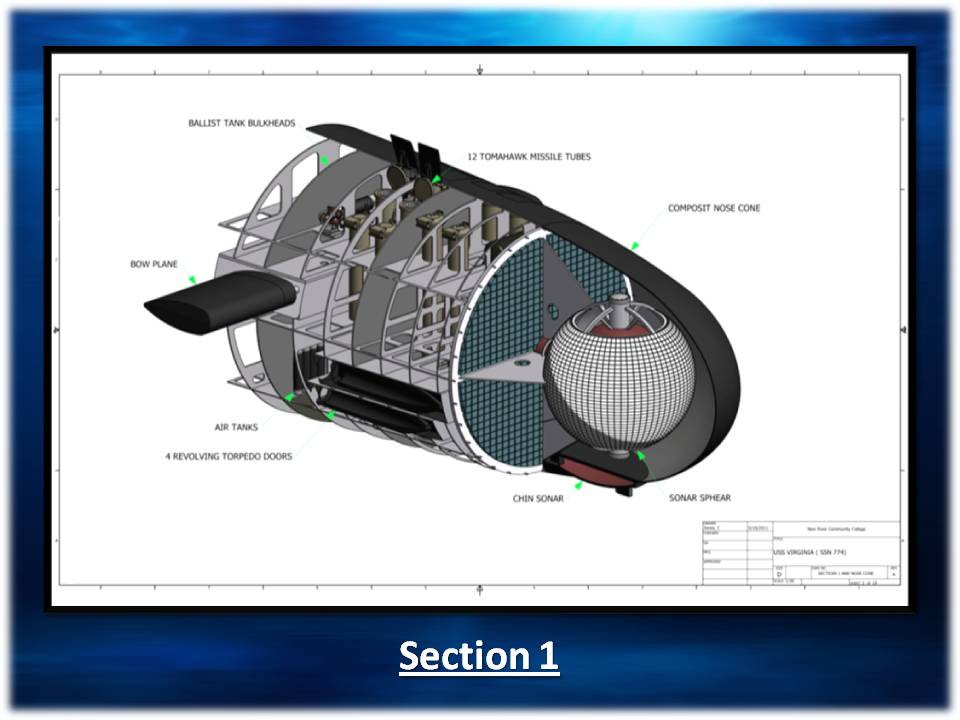

Section 1
Under Water

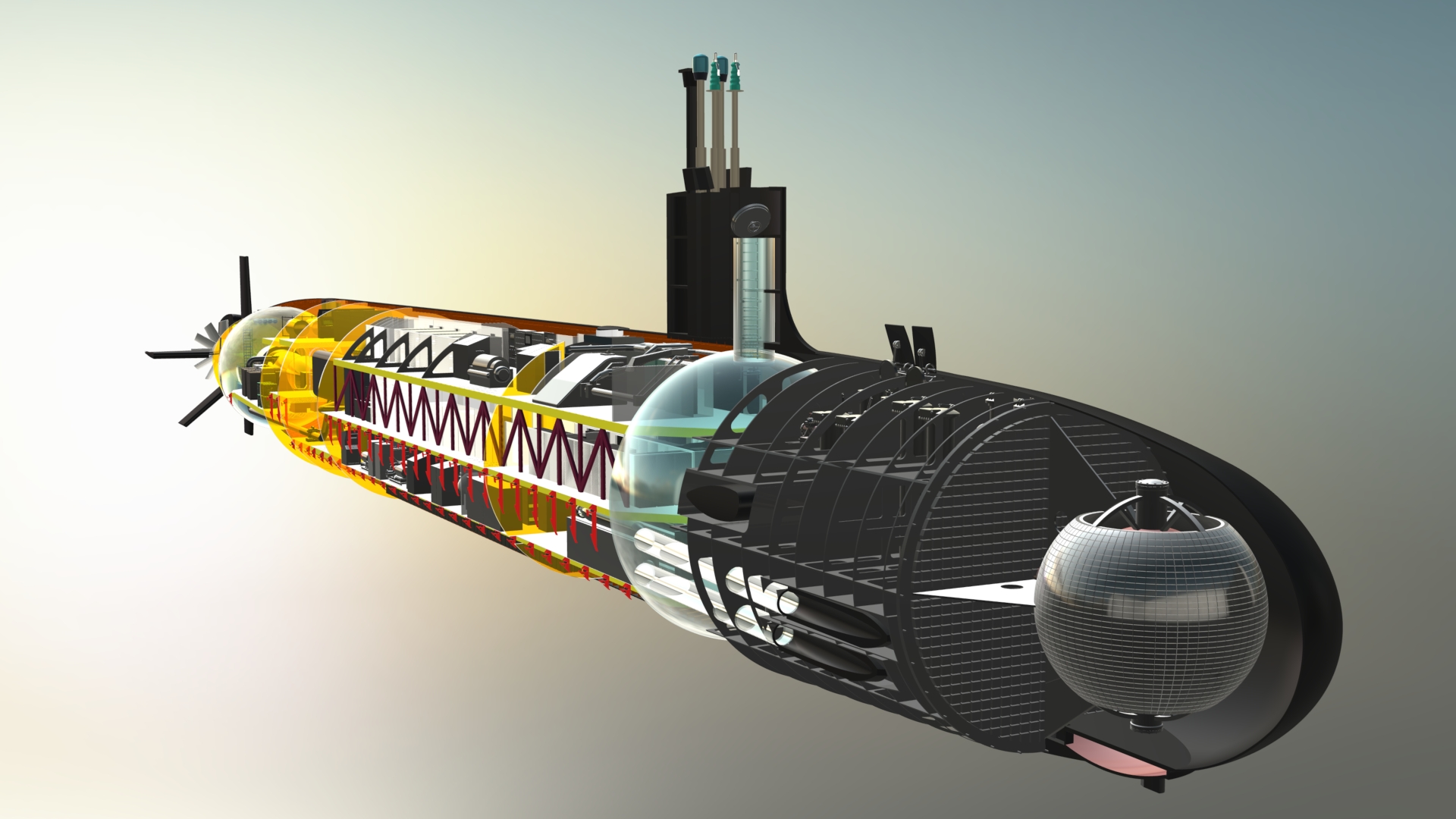

Half Assembly Front Side

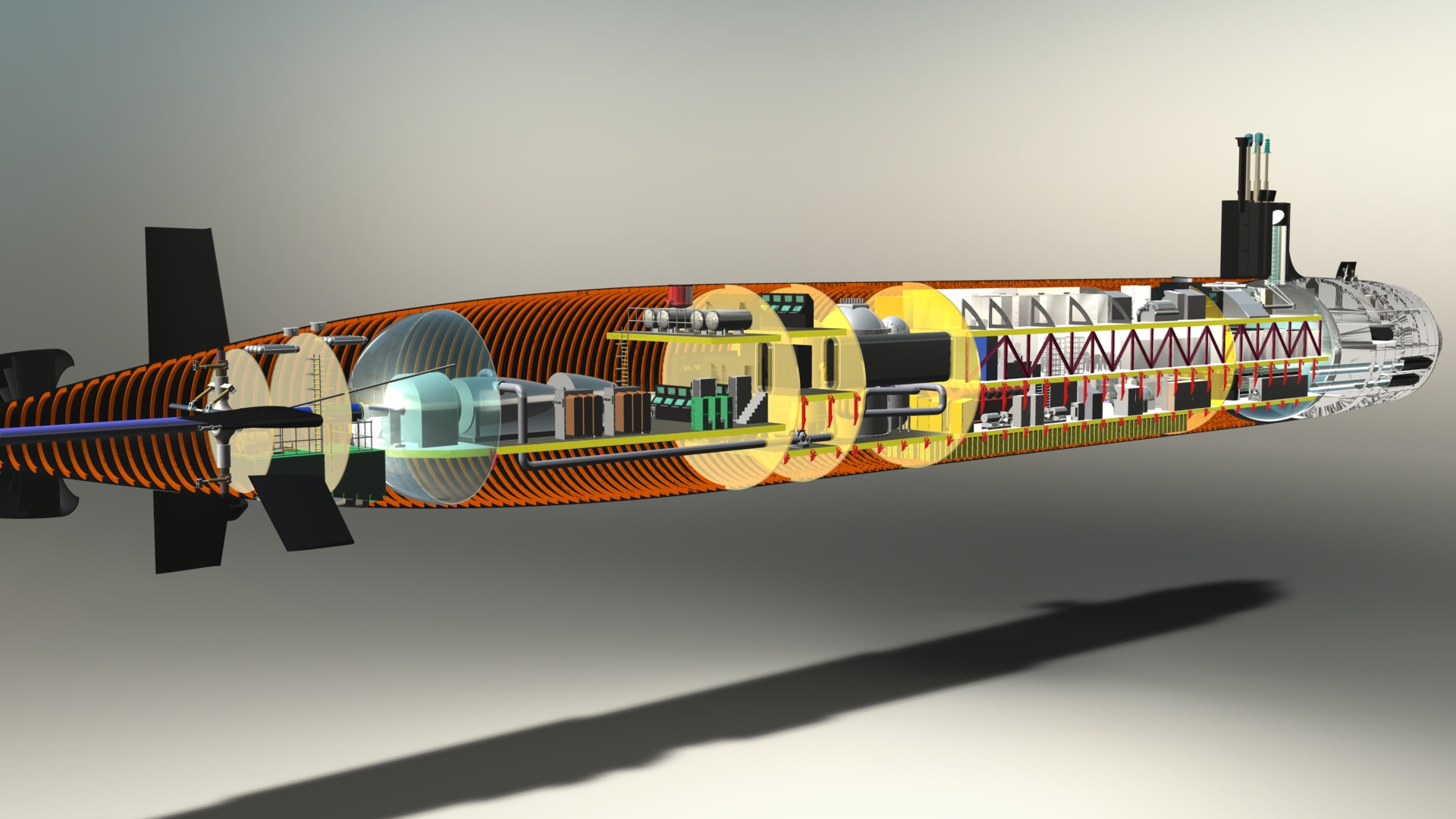

Half Assembly Back Side

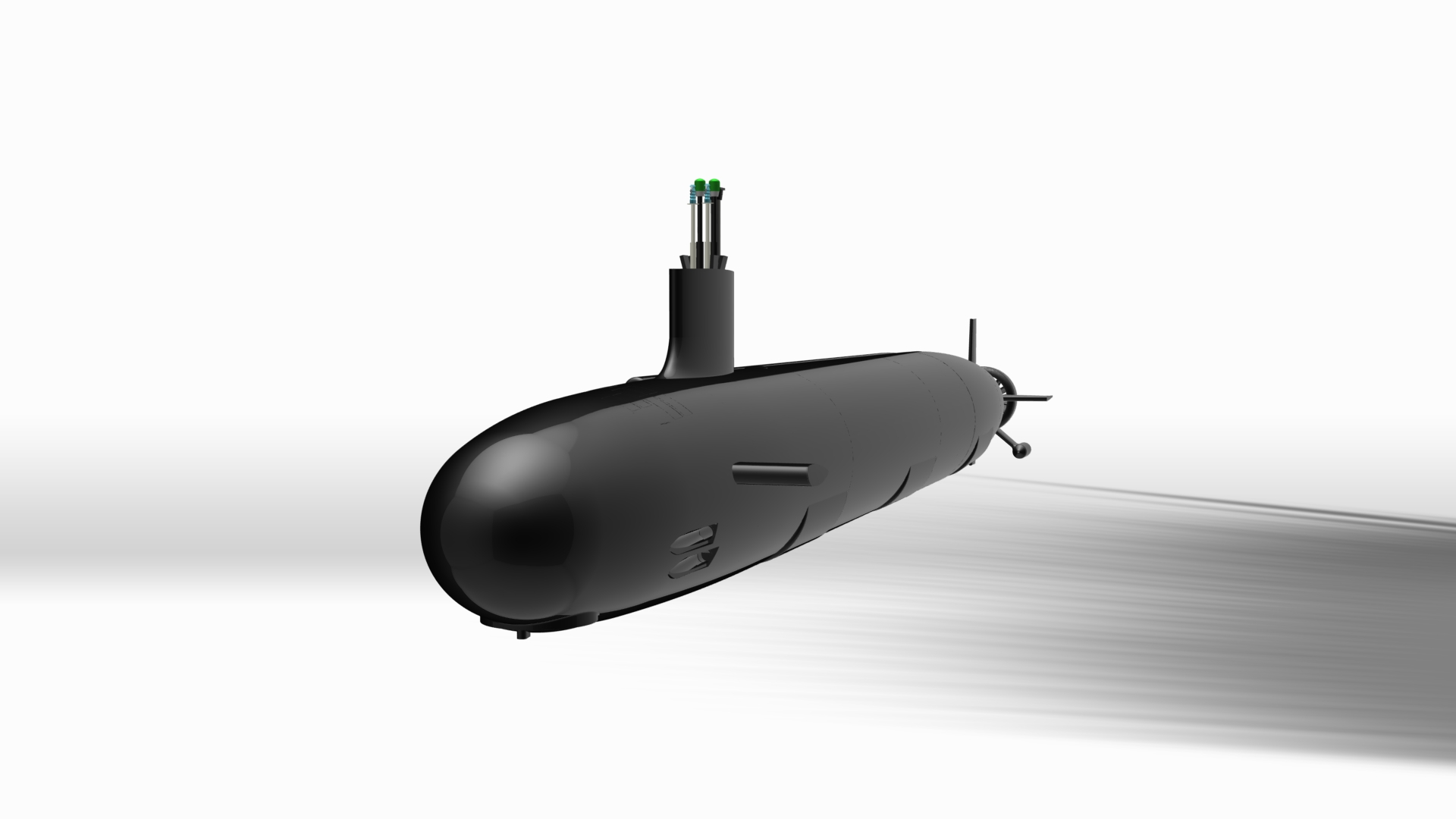

Full Assembly Left Side
Full Assembly Right Side

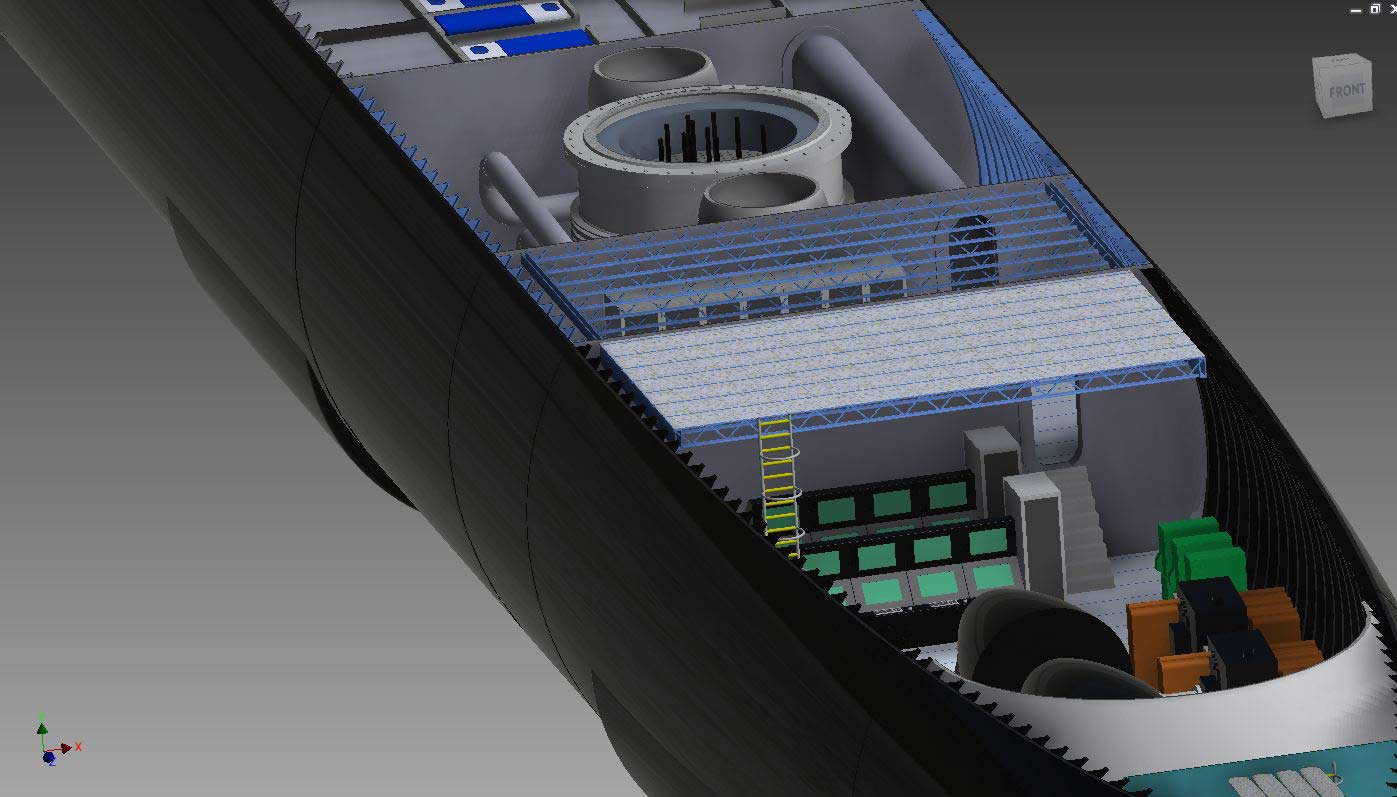

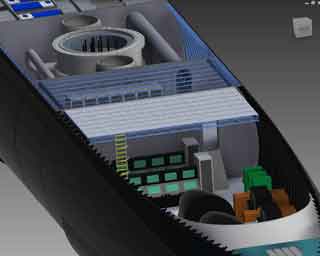

Section 2 Rear
Section 3 Rear
Section 4 Rear

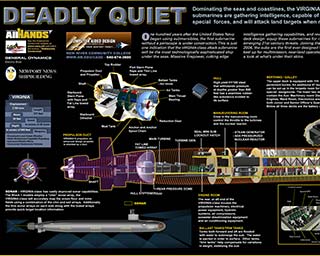

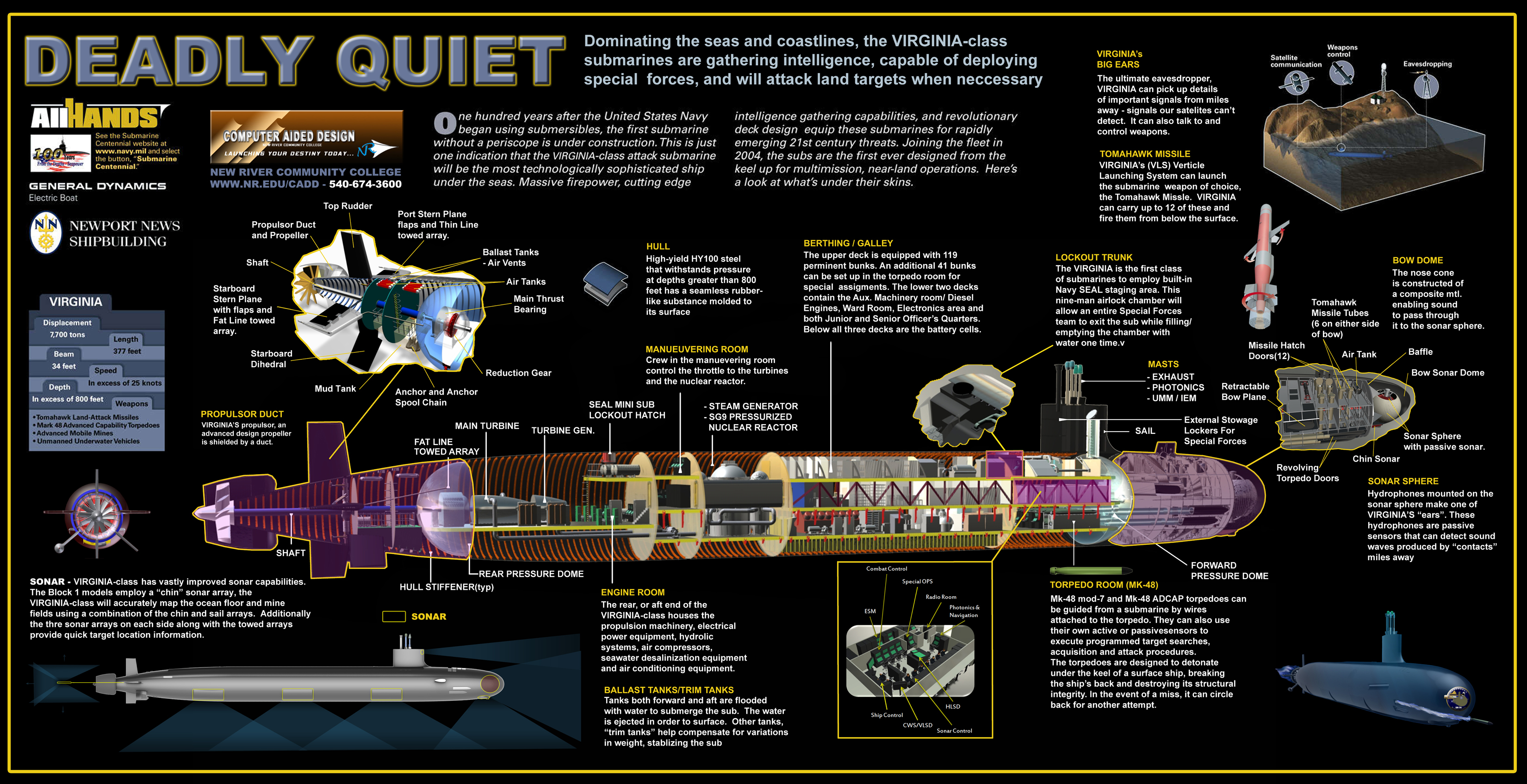

NRCC SSN774 Poster

VA Class Slides

USS Virginia SSN 774

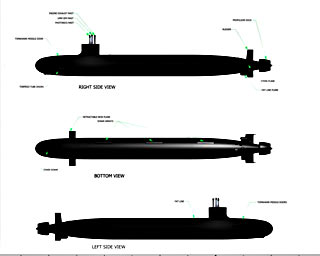

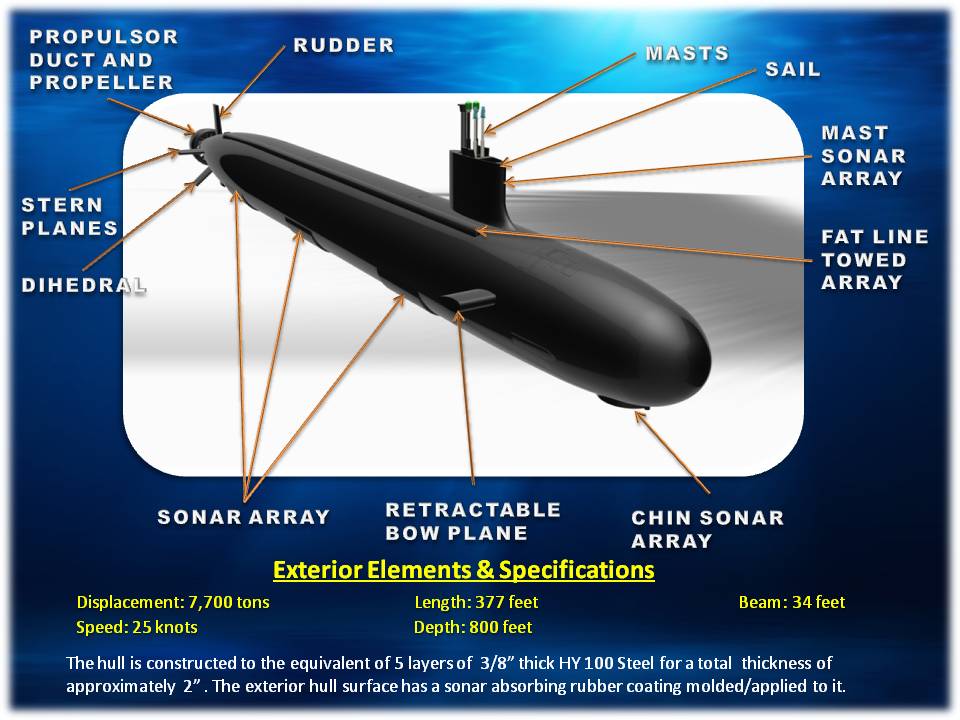

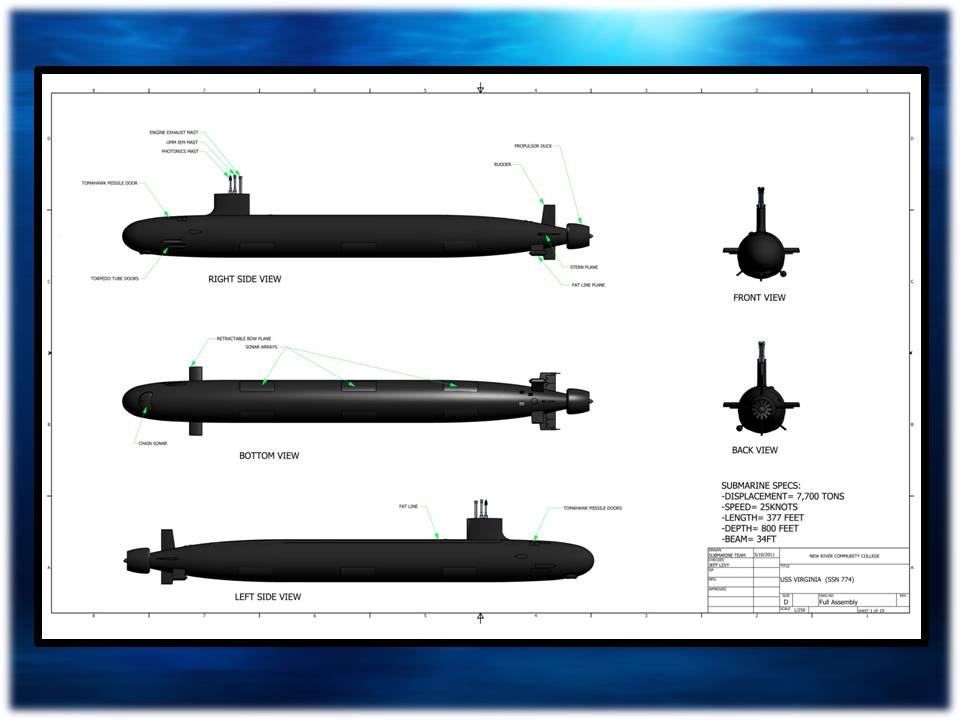

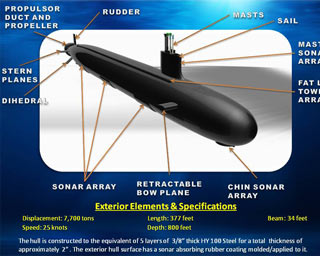

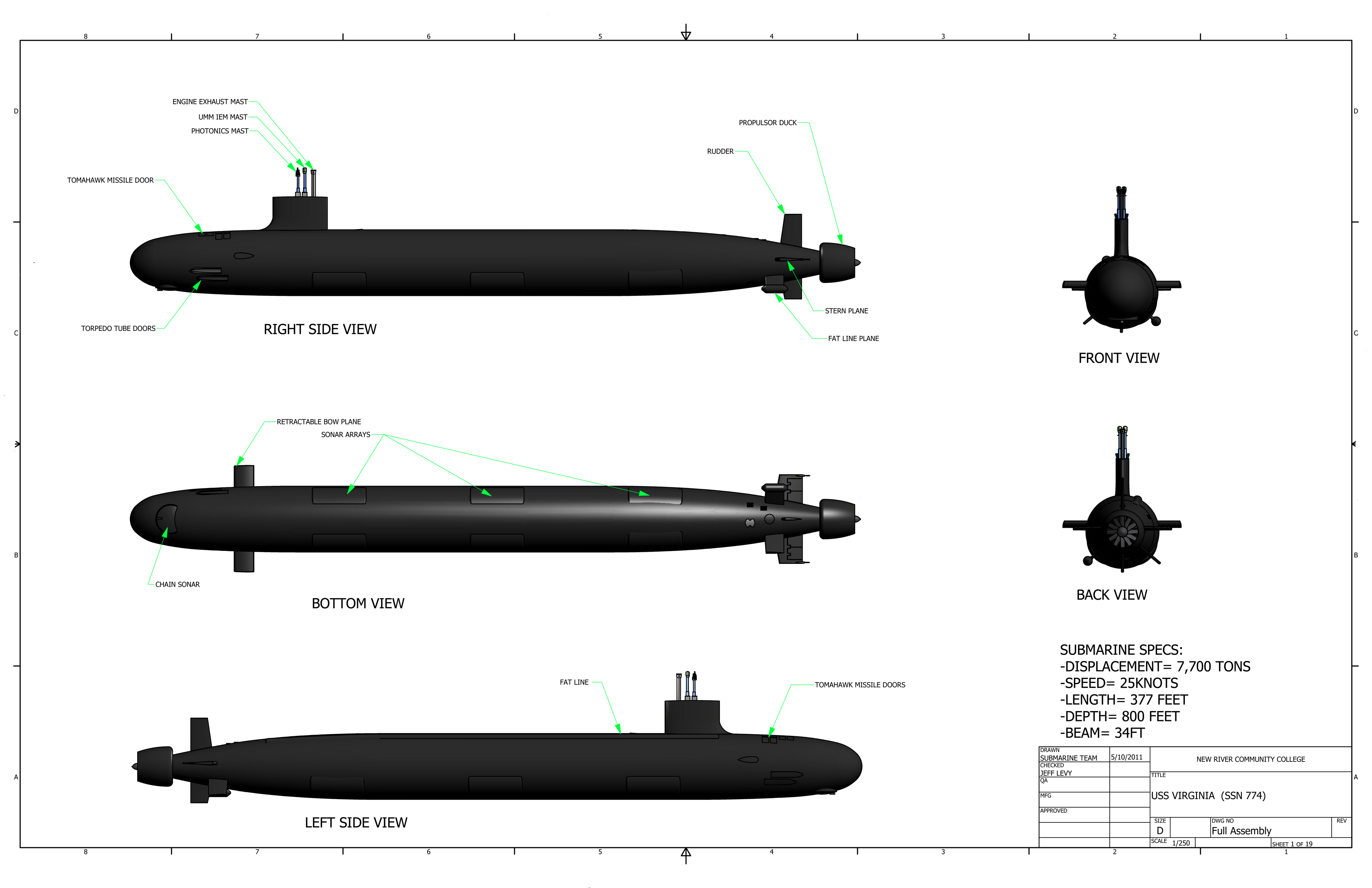

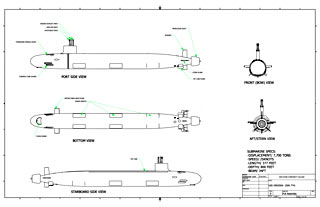

Exterior Elements & Specifications
USS Virginia SSN 774
Final USS Virginia SSN 774

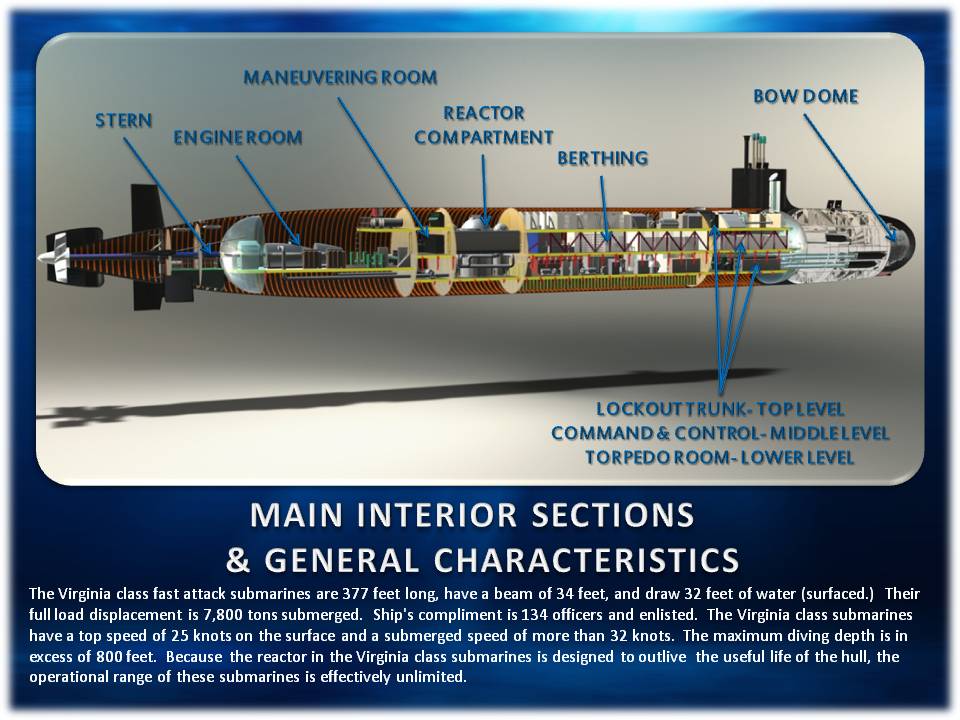

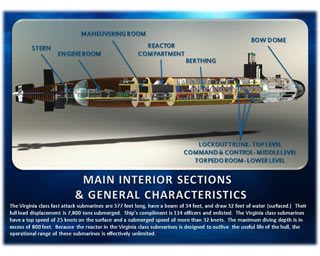

Main Interior Sections And General Characteristics

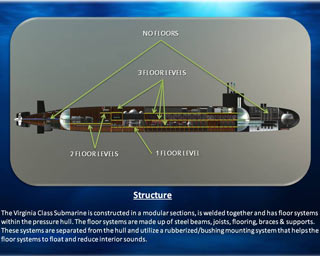

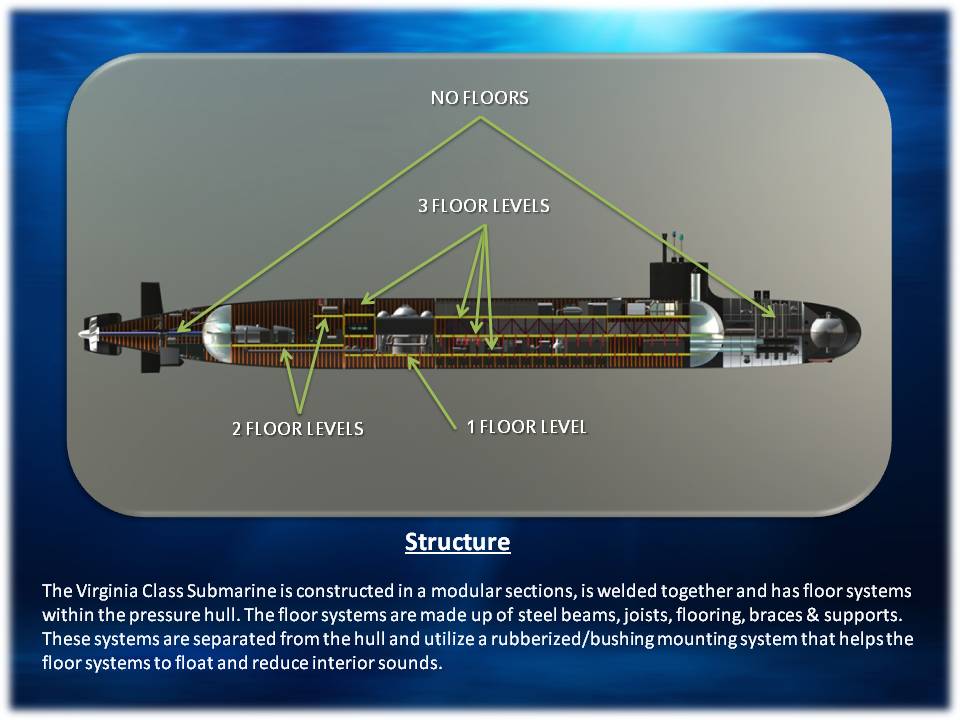

Structure

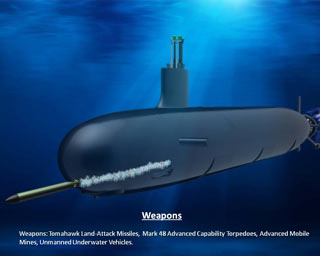

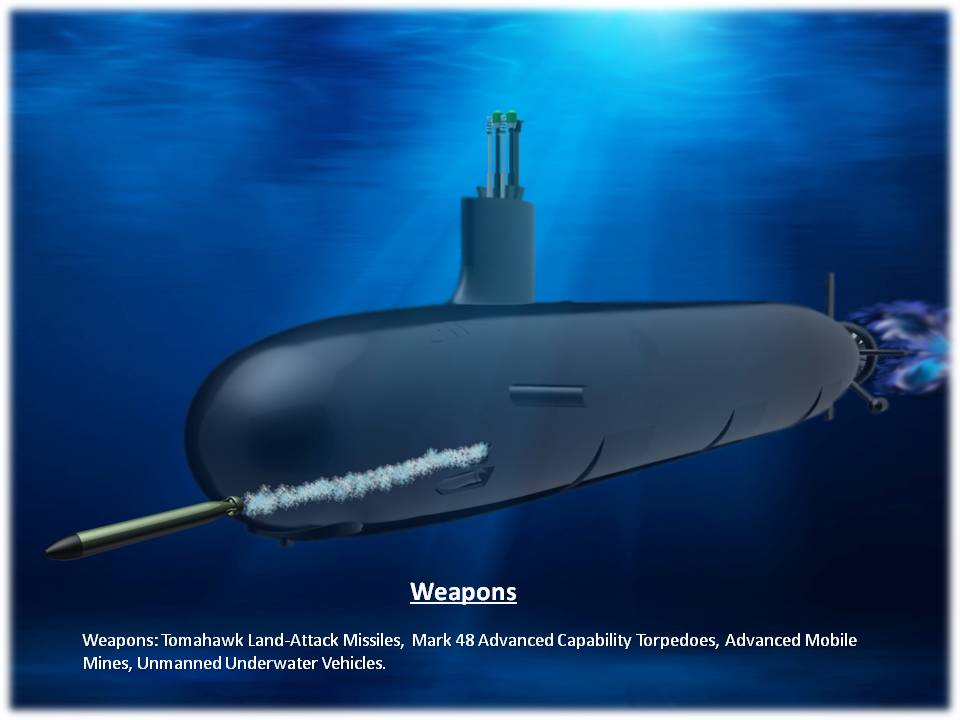

Weapons

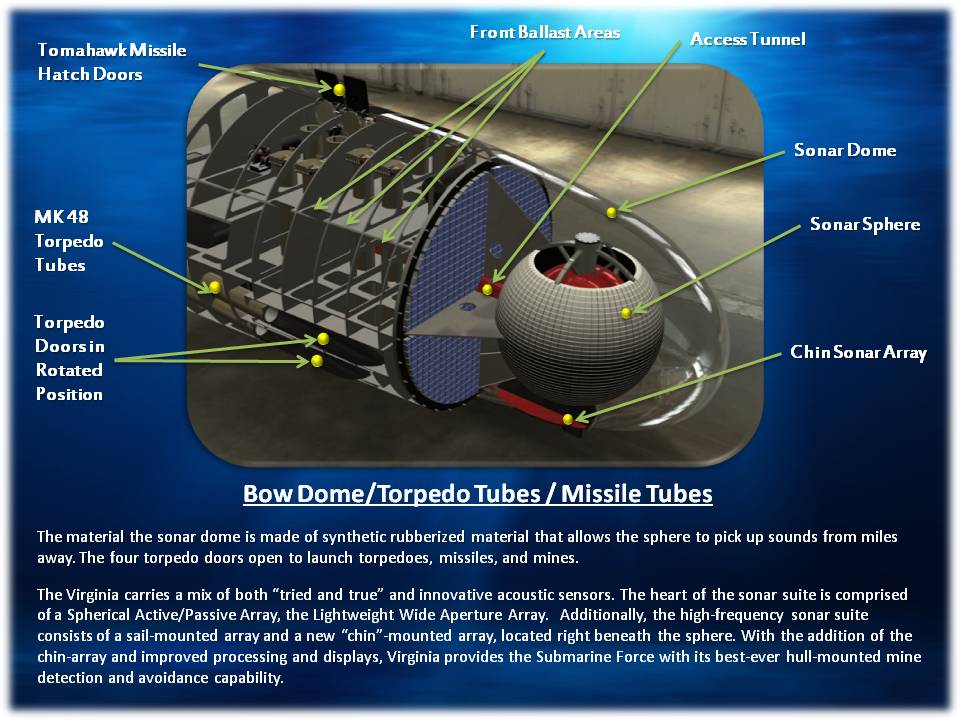

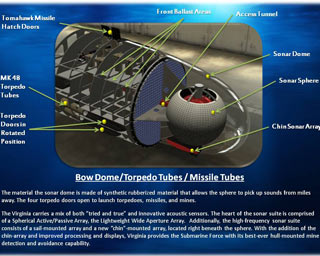

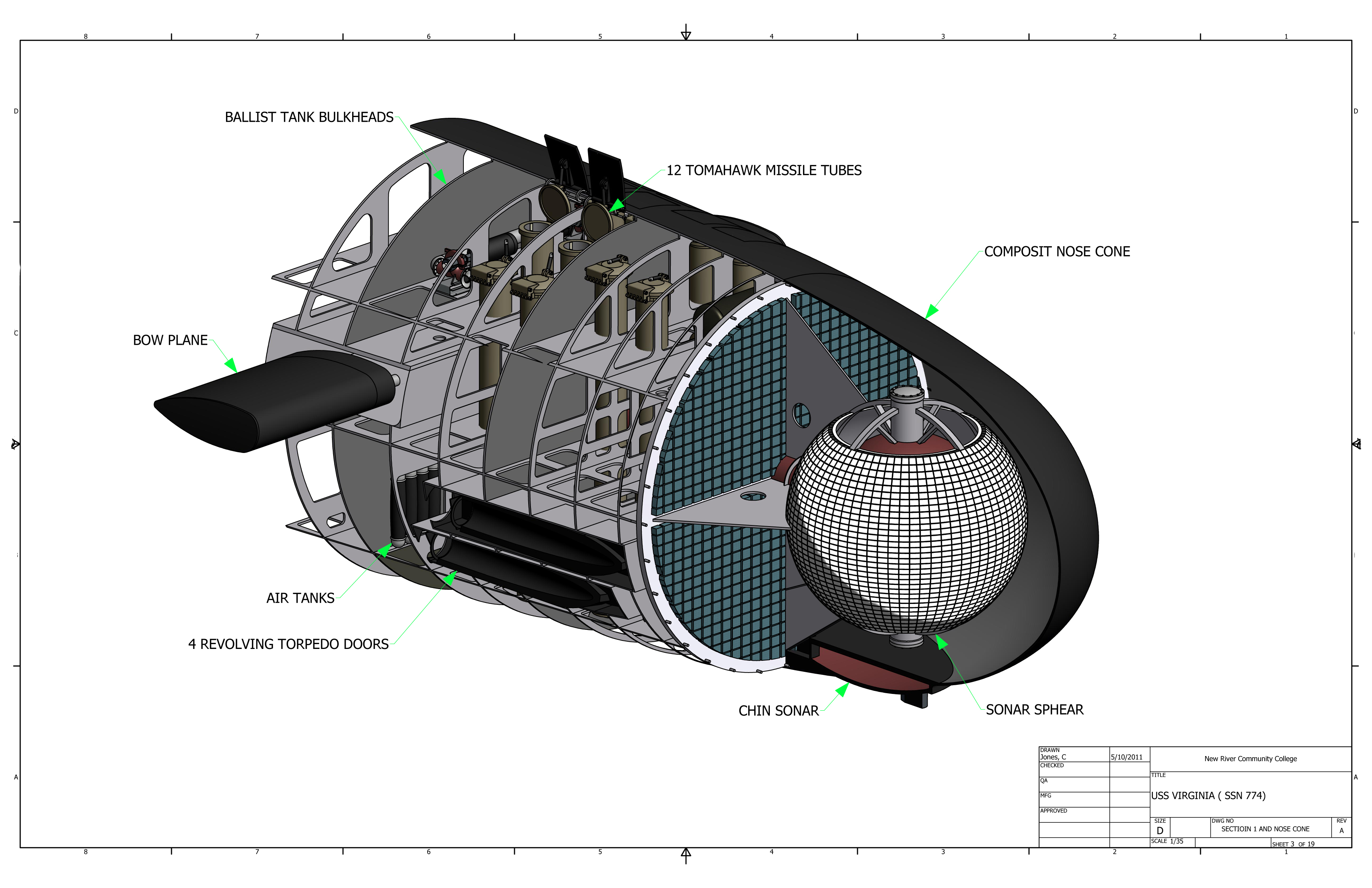

Bow Dome/Torpedo Tubes/Missile Tubes

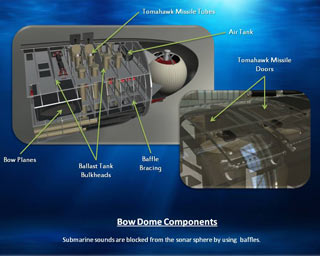

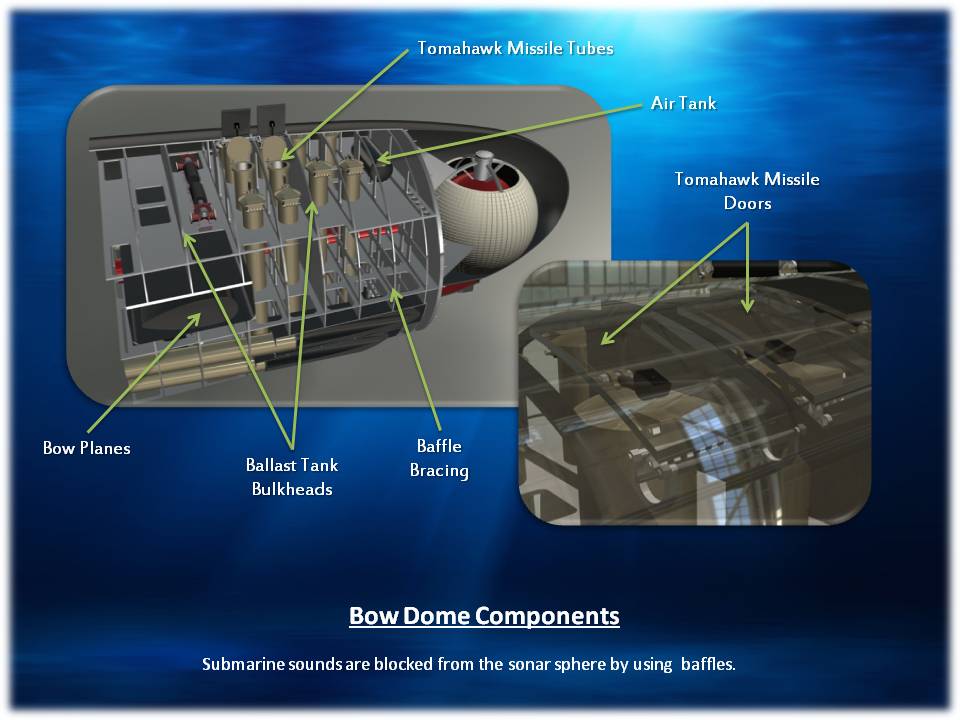

Bow Dome Components

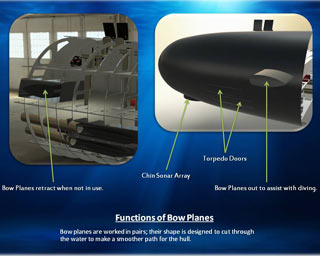

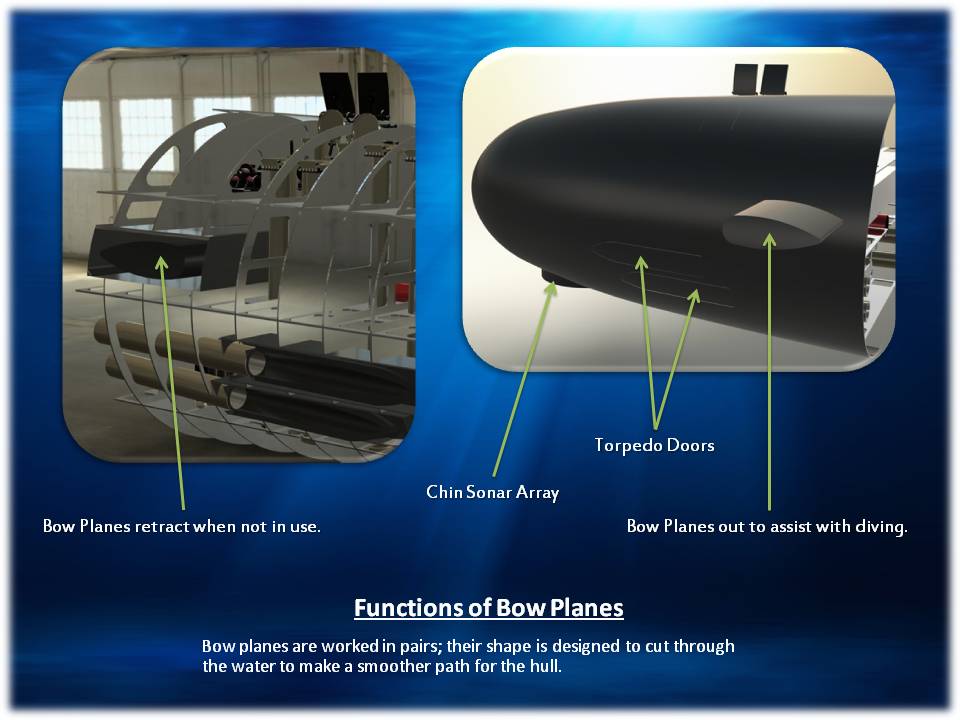

Functions of Bow Planes

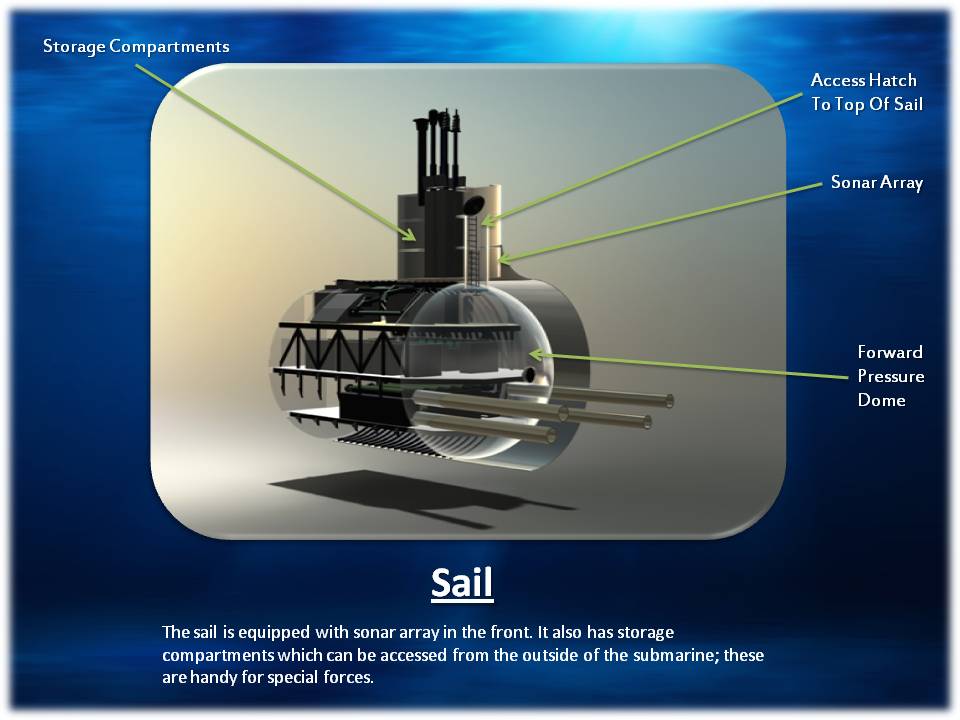

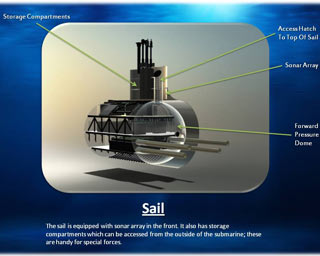

Sail

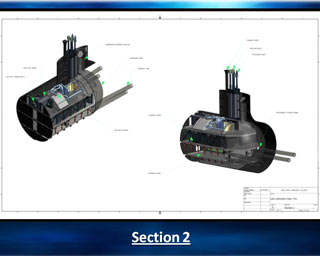

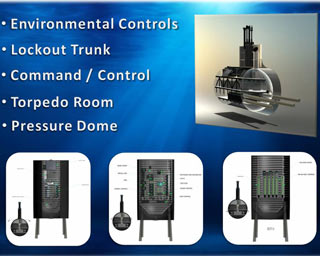

Section 2

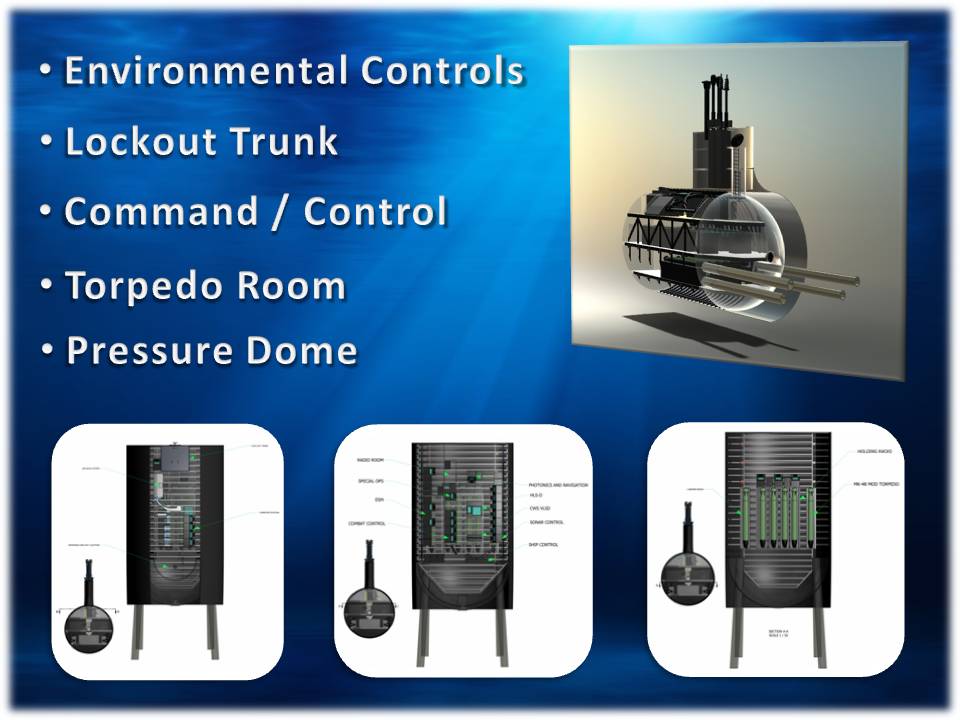

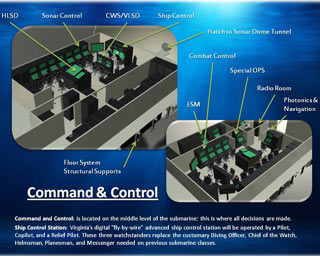

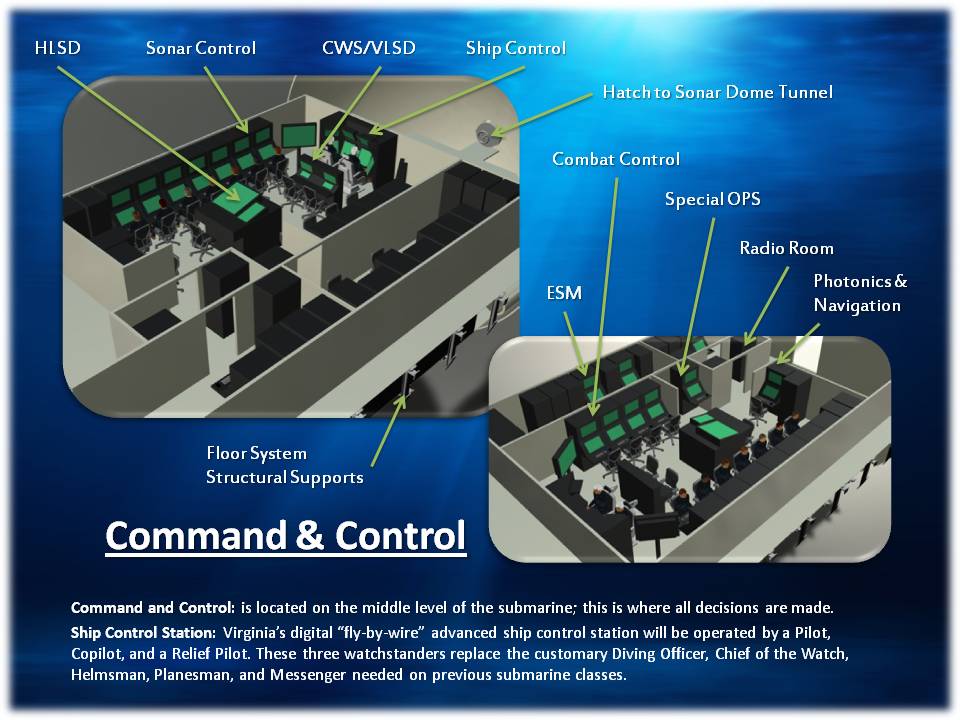

Command and Control

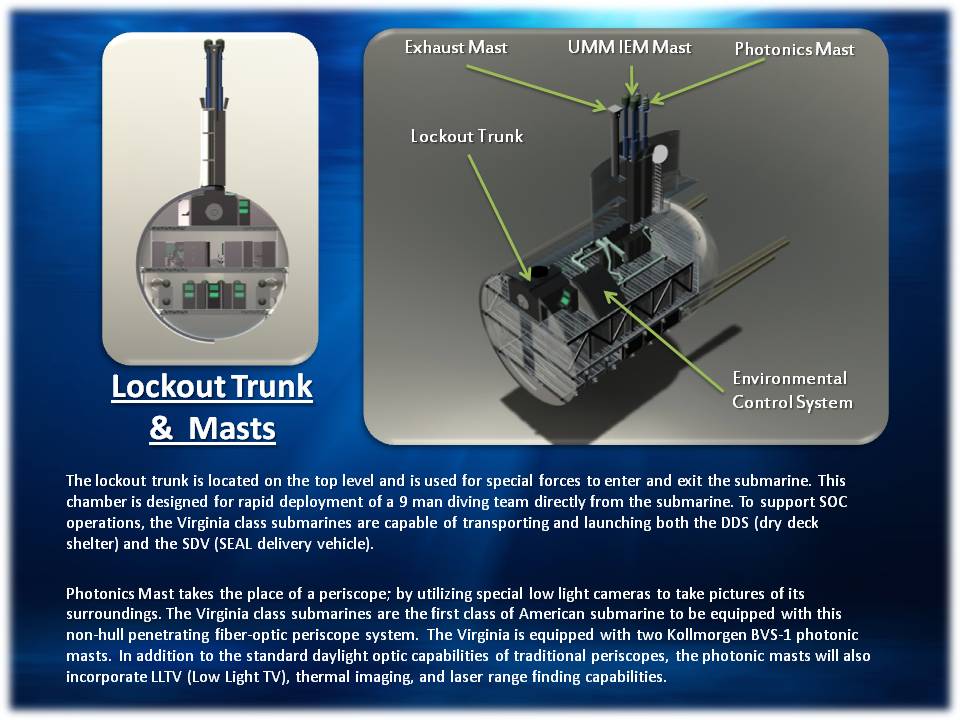

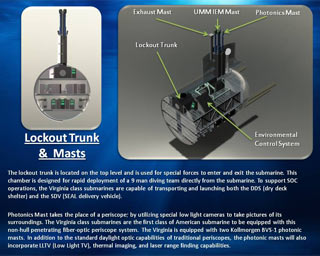

Lockout Trunk and Masts

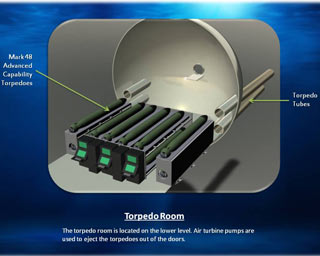

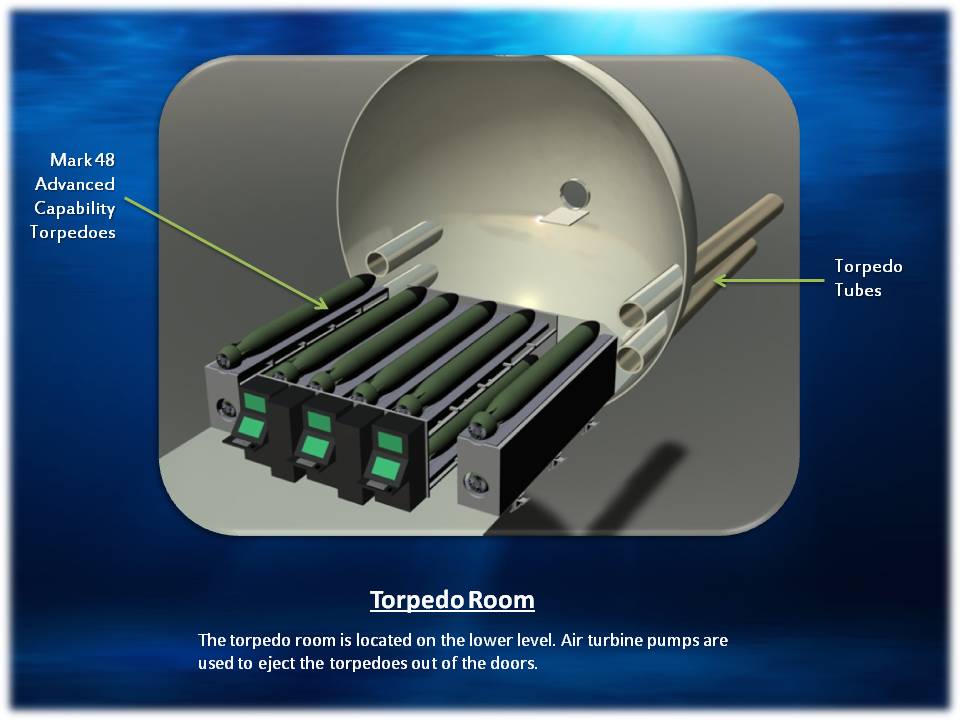

Tropedo Room

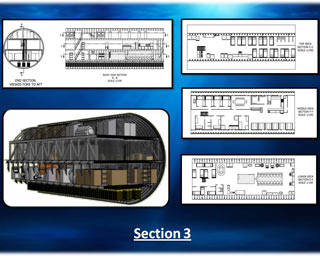

Section 3
Pressure Dome

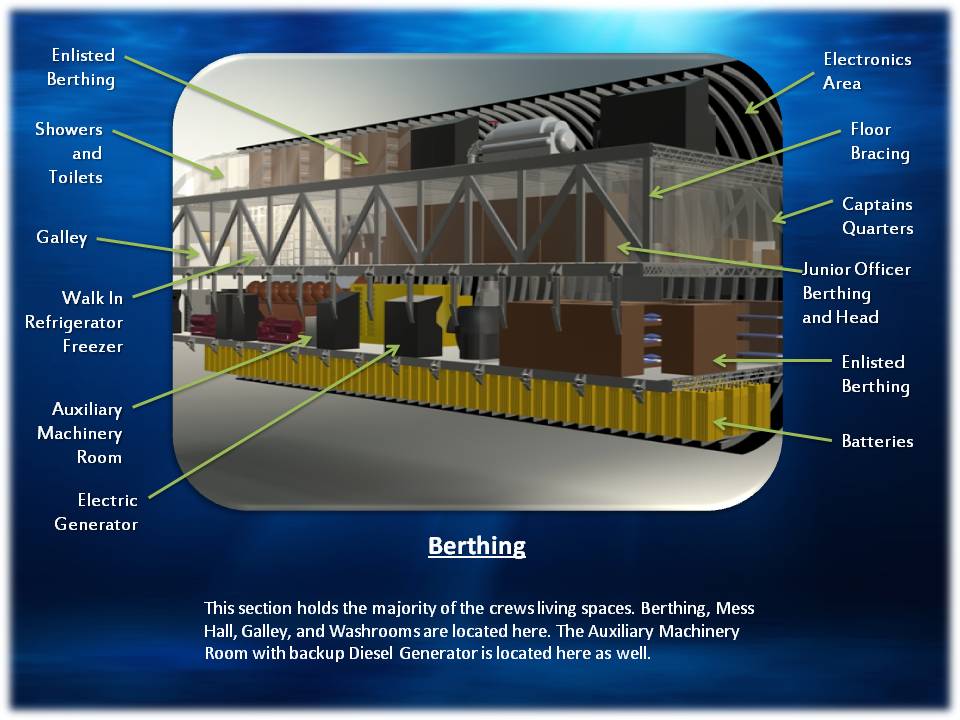

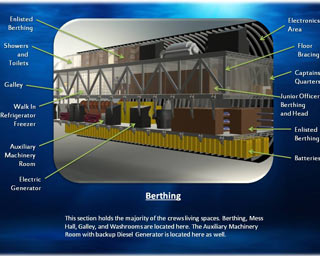

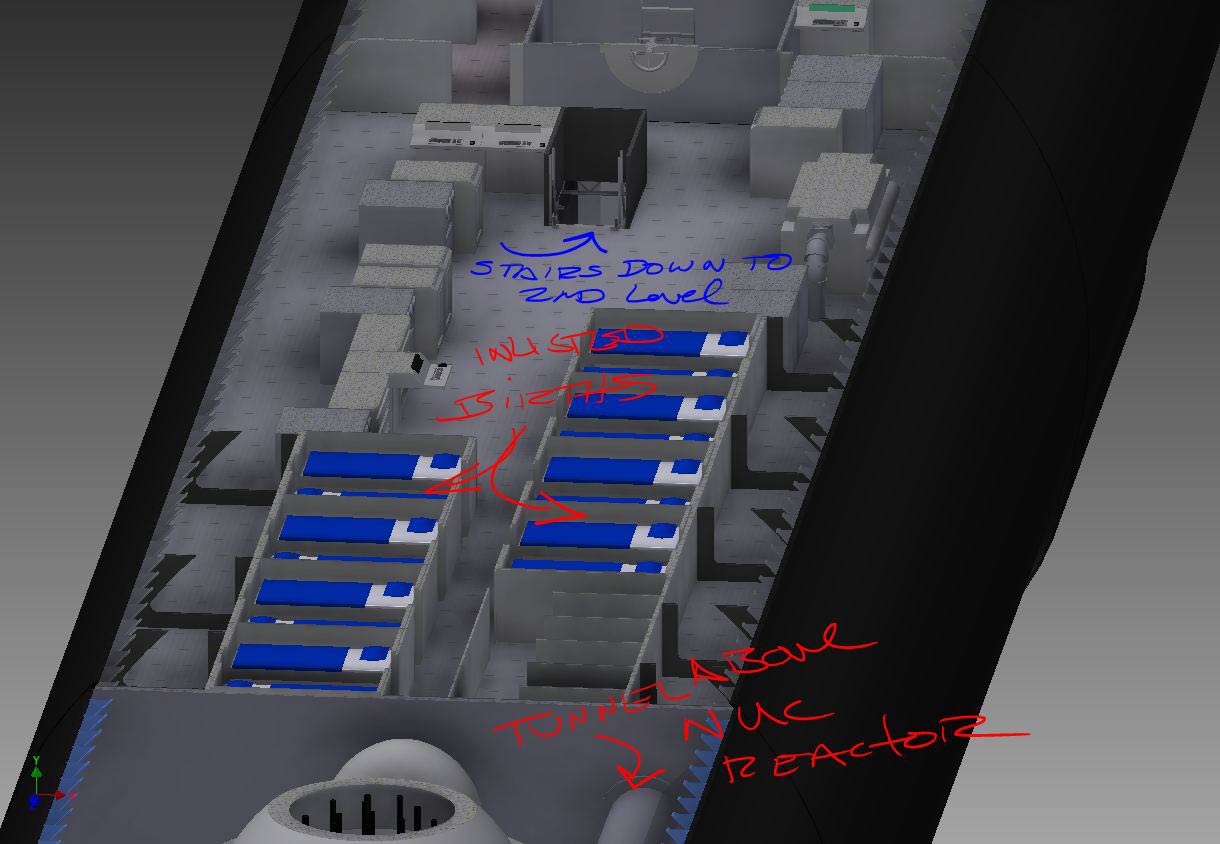

Berthing

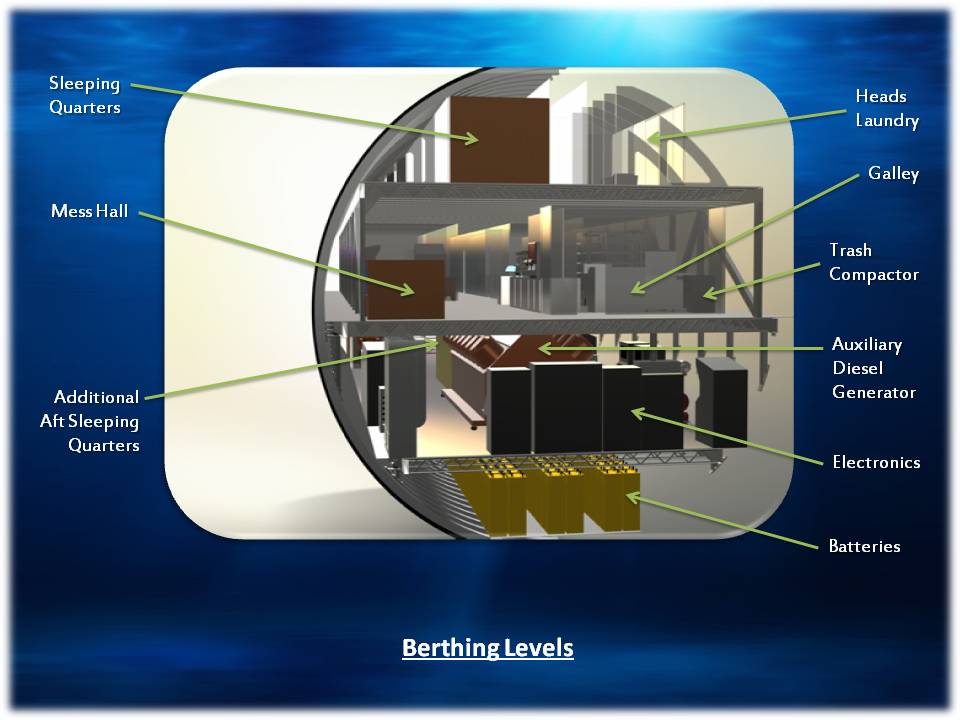

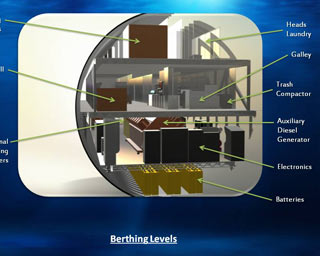

Berthing Levels

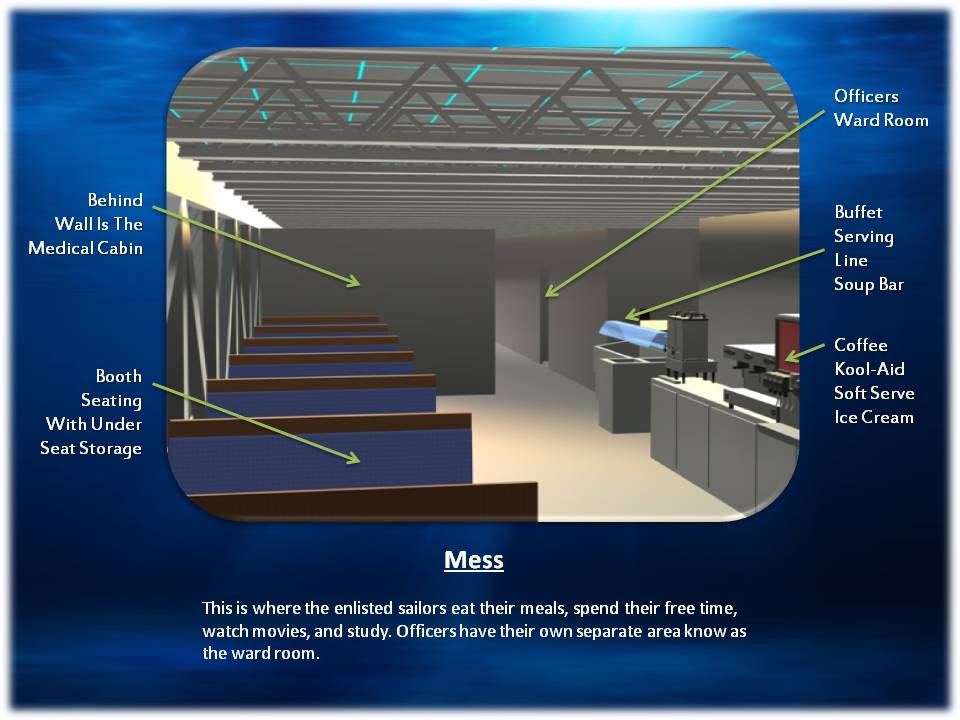

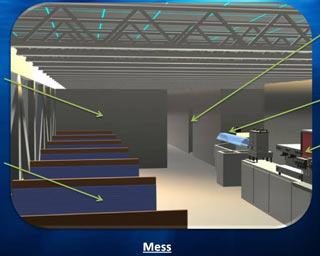

Mess

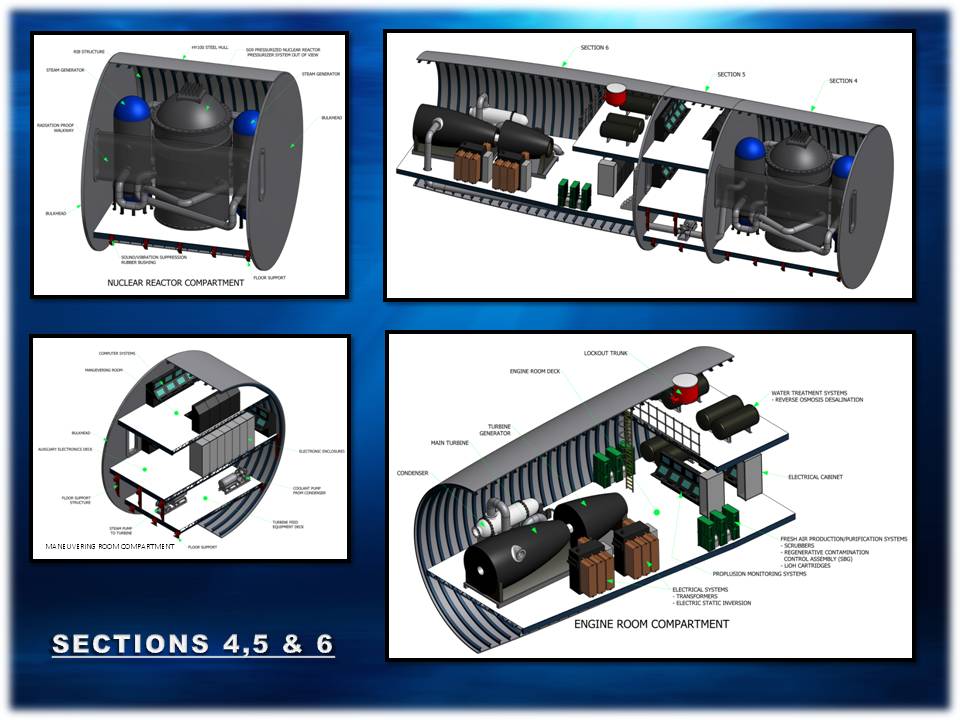

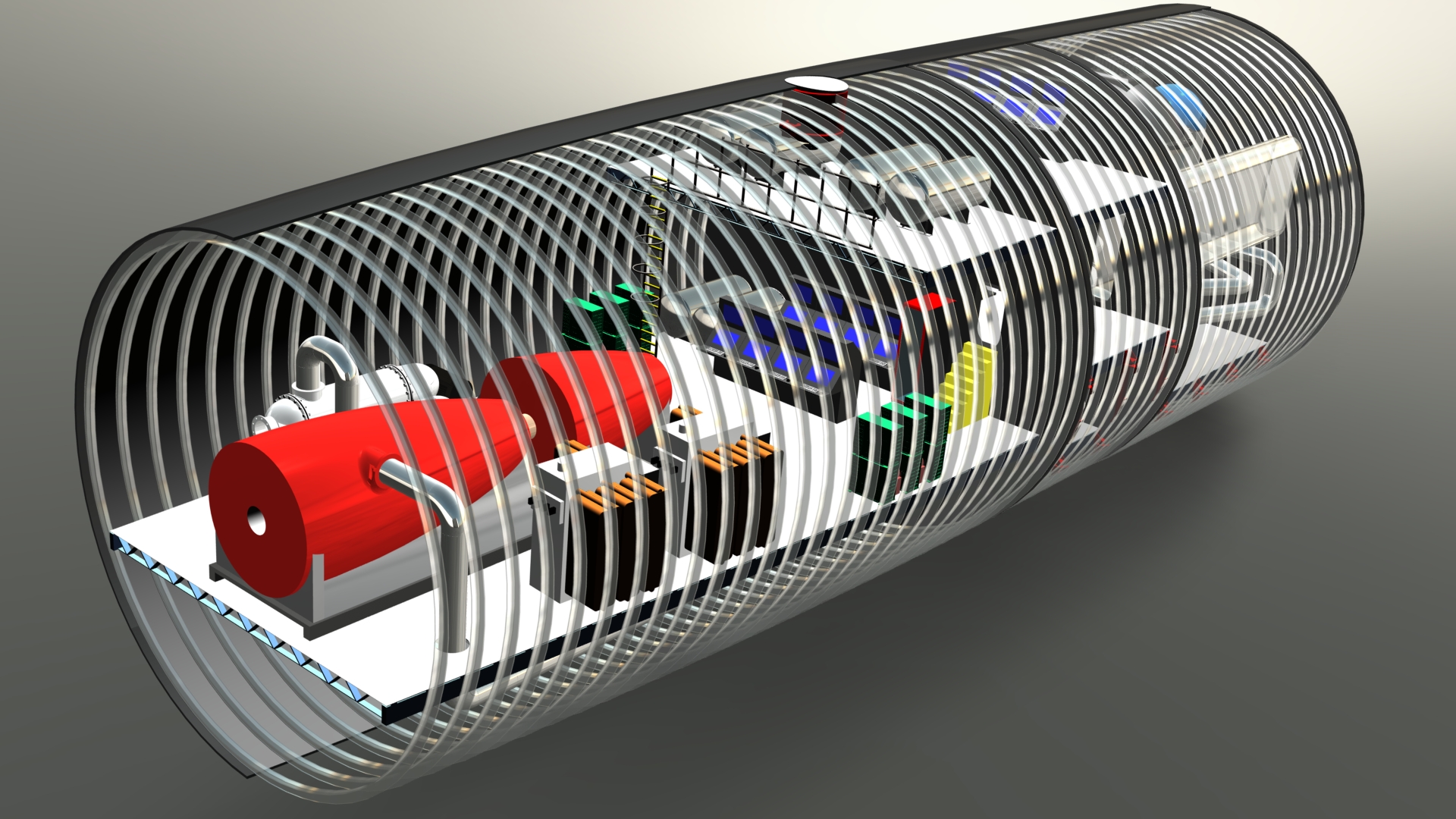

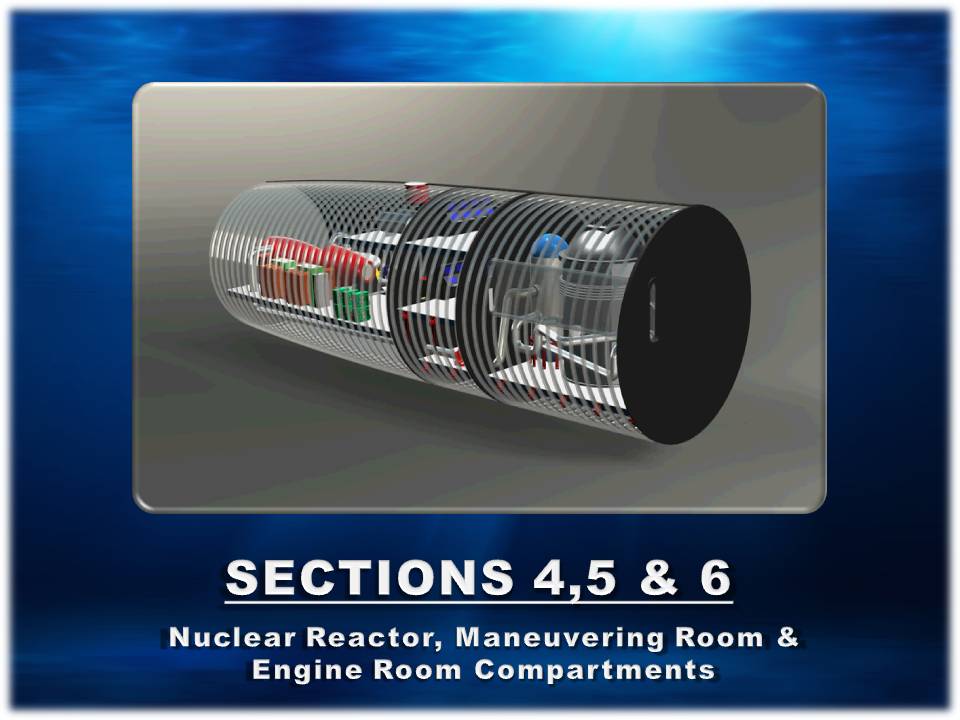

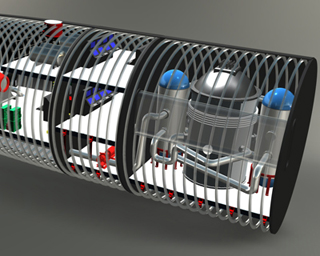

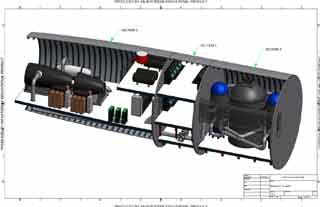

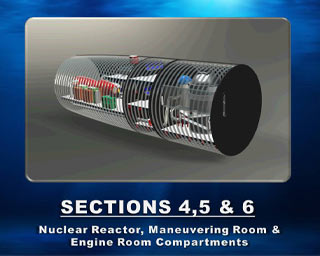

Sections 4,5 and 6

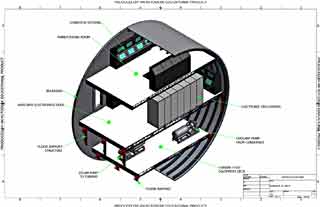

Sections 4,5 and 6

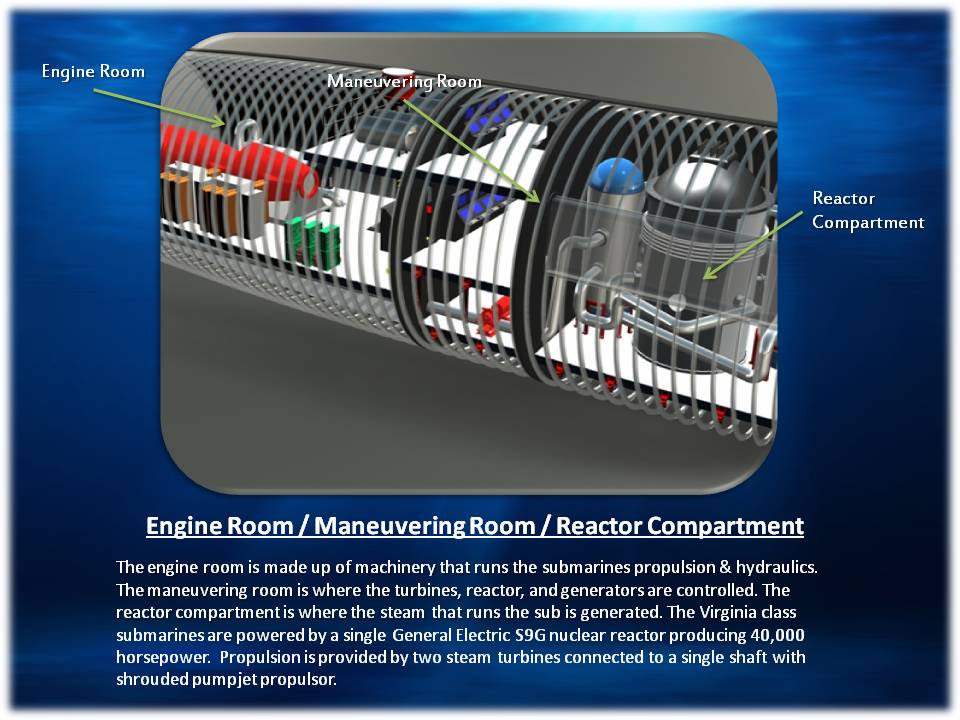

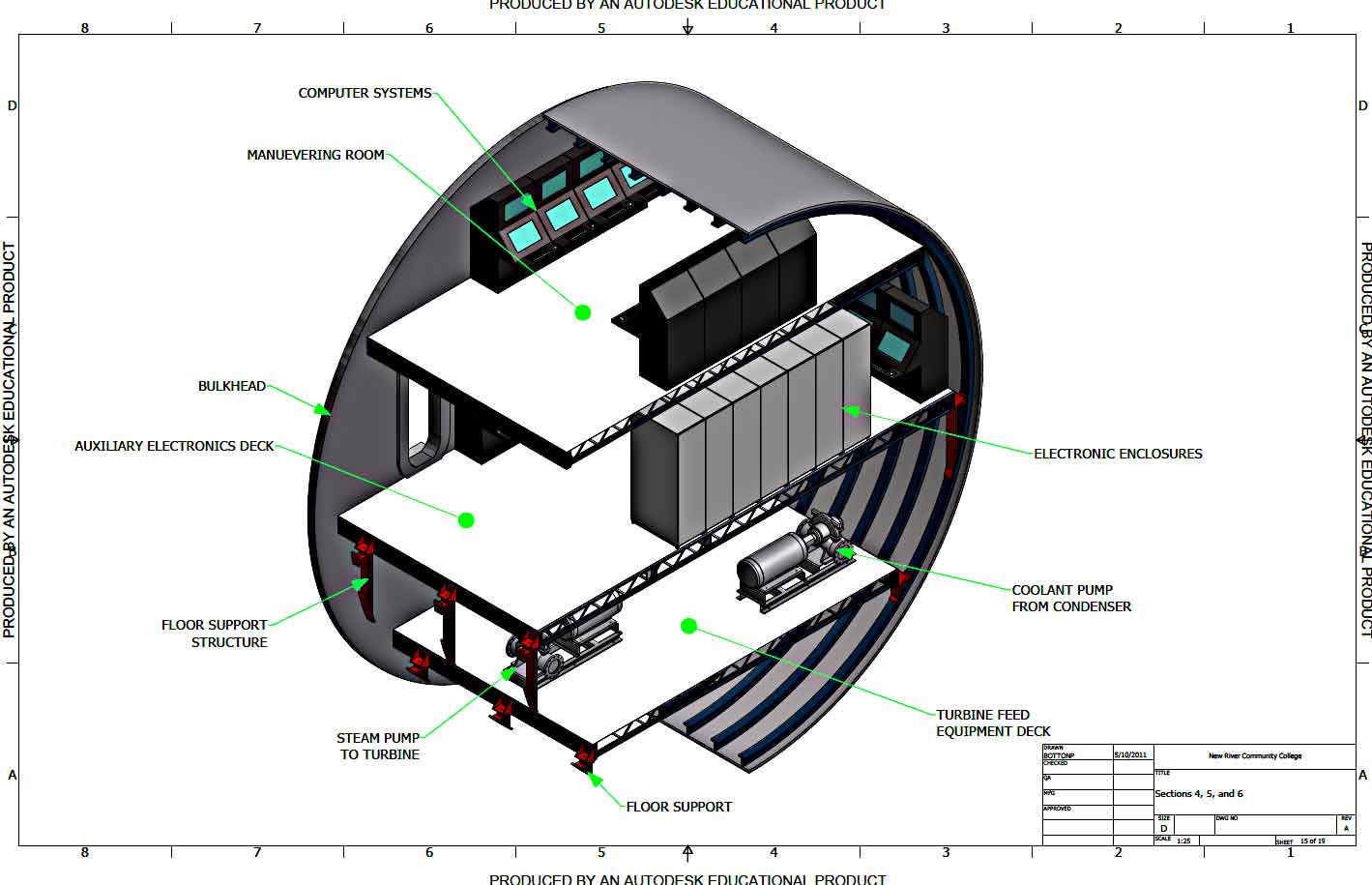

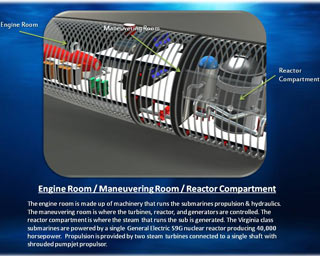

Engine Room/Maneuvering Room/Reactor Compartment

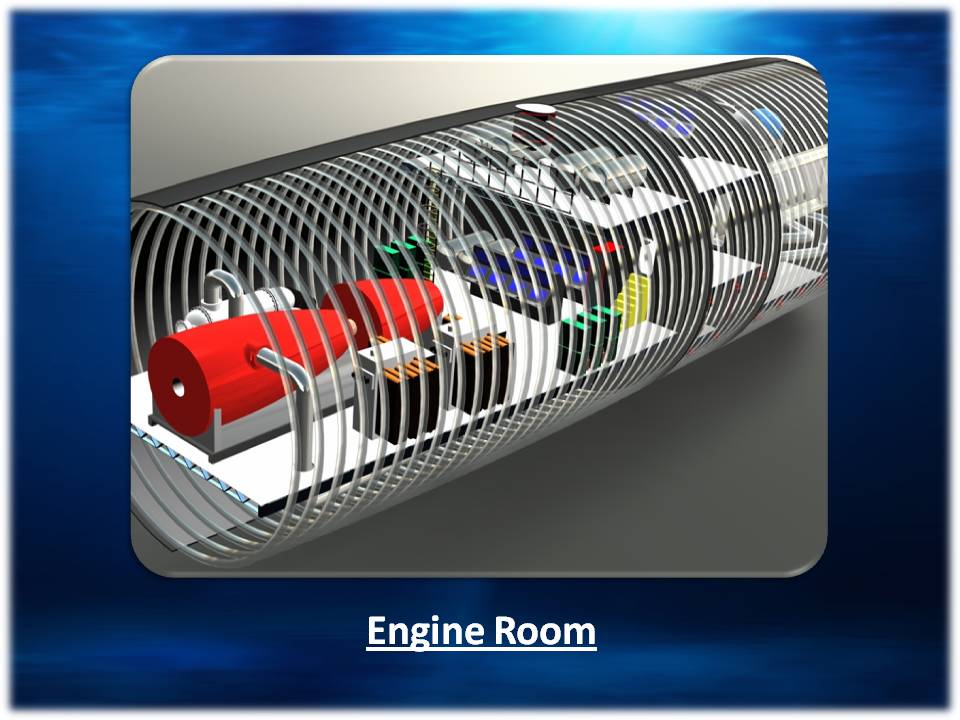

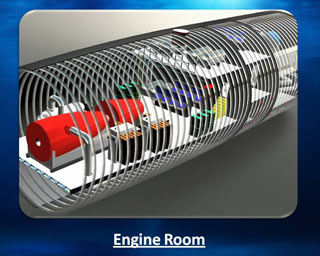

Engine Room

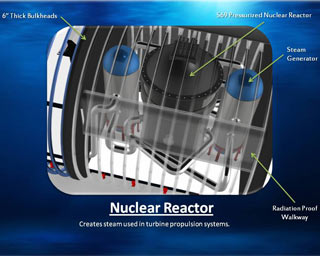

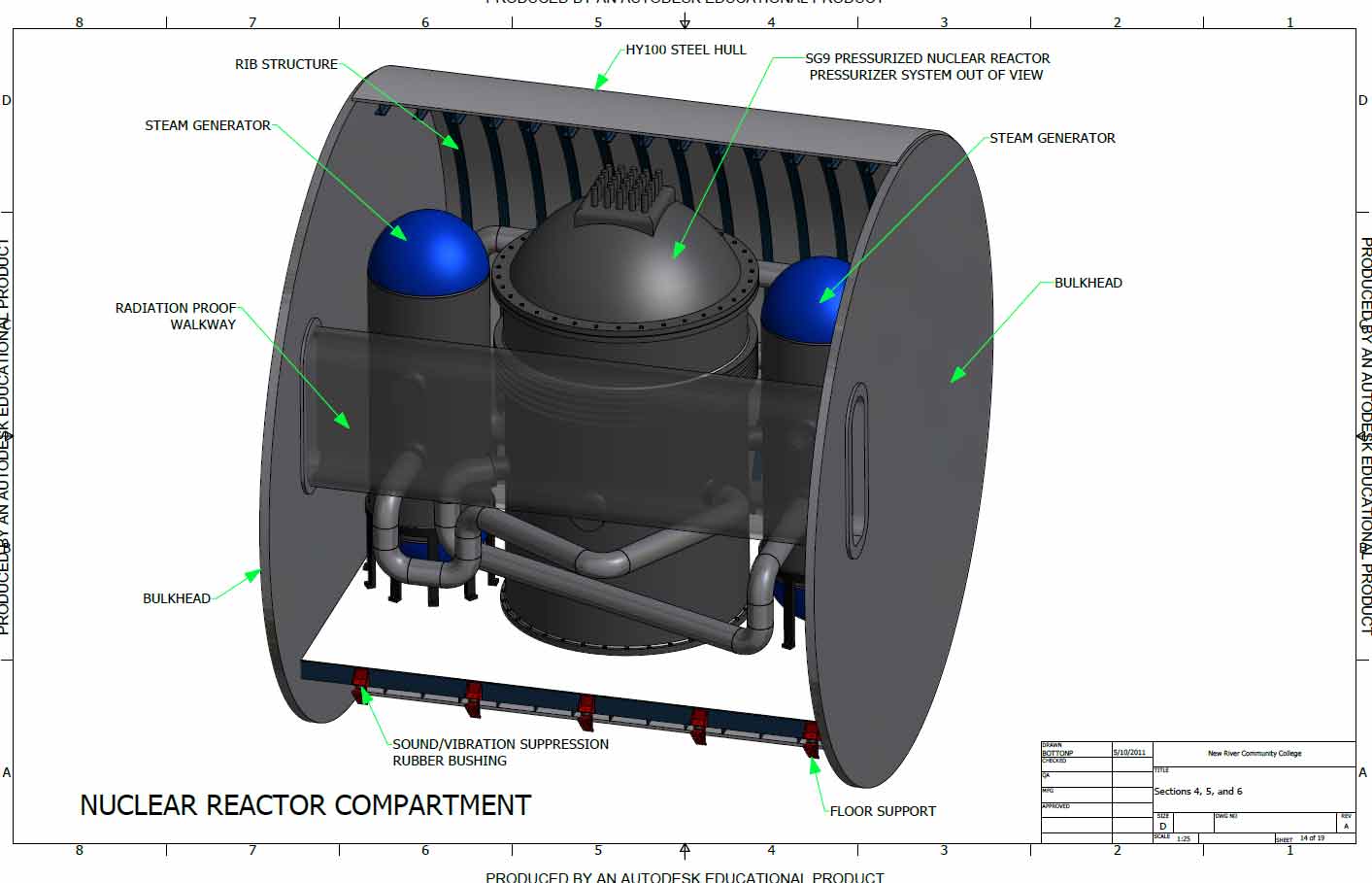

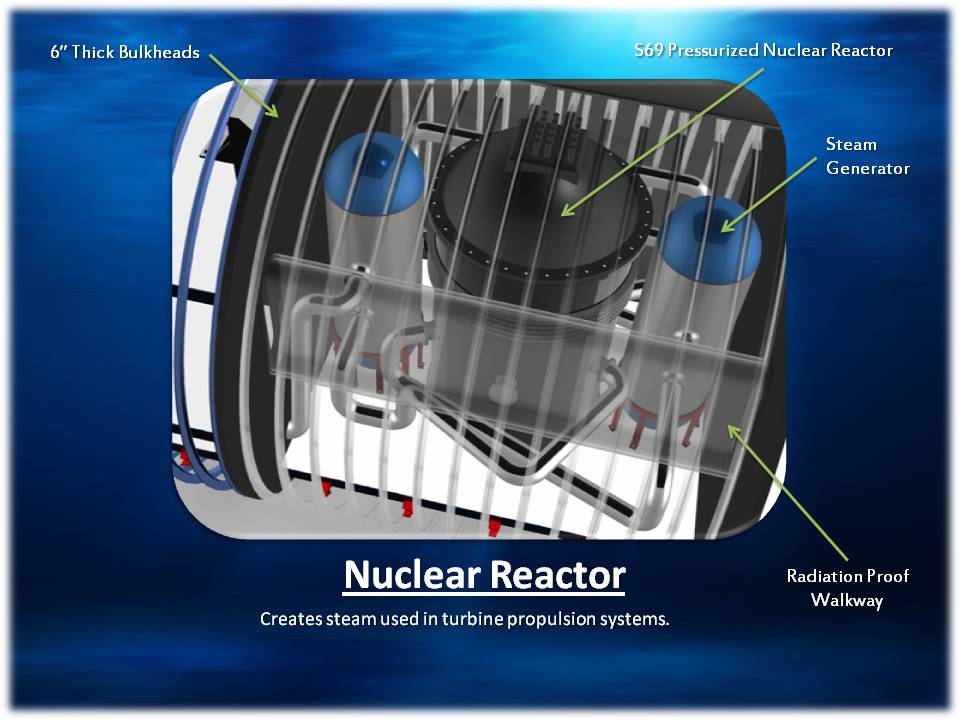

Nuclear Reactor

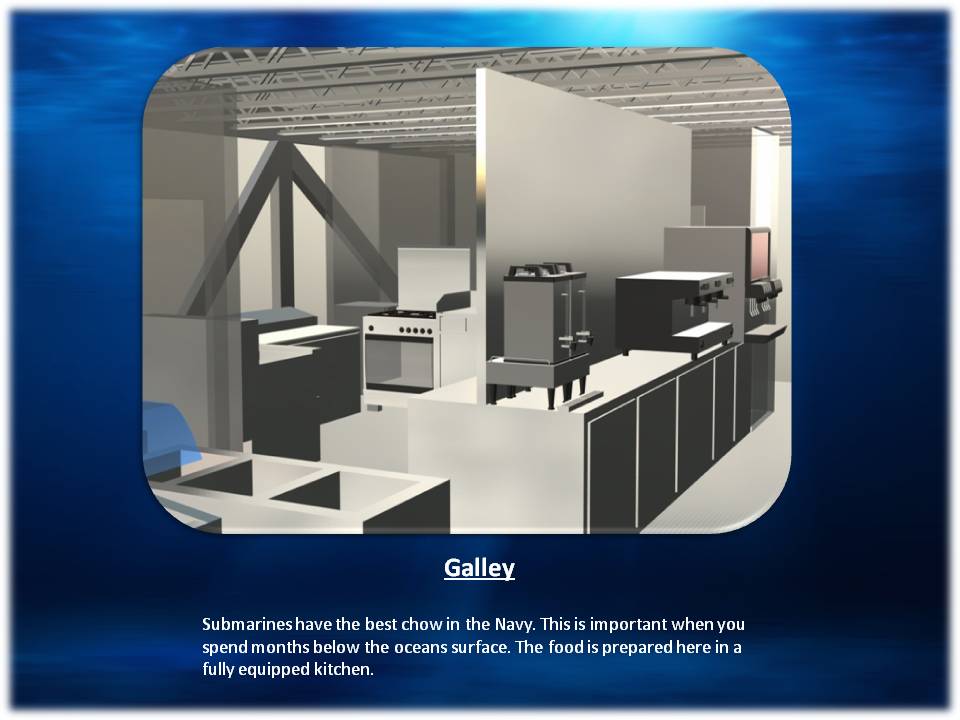

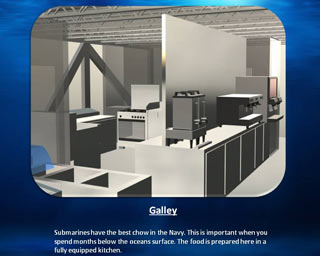

Galley

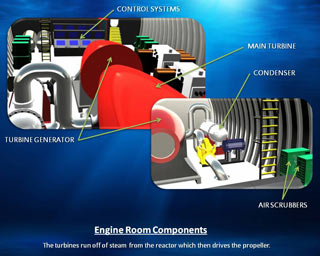

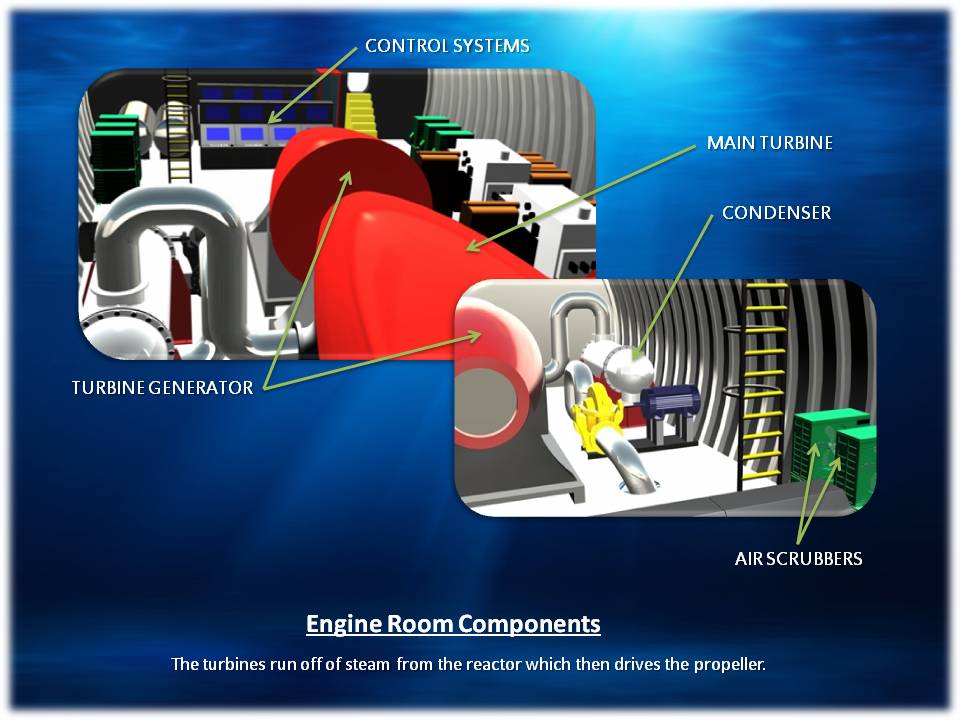

Engine Room Components

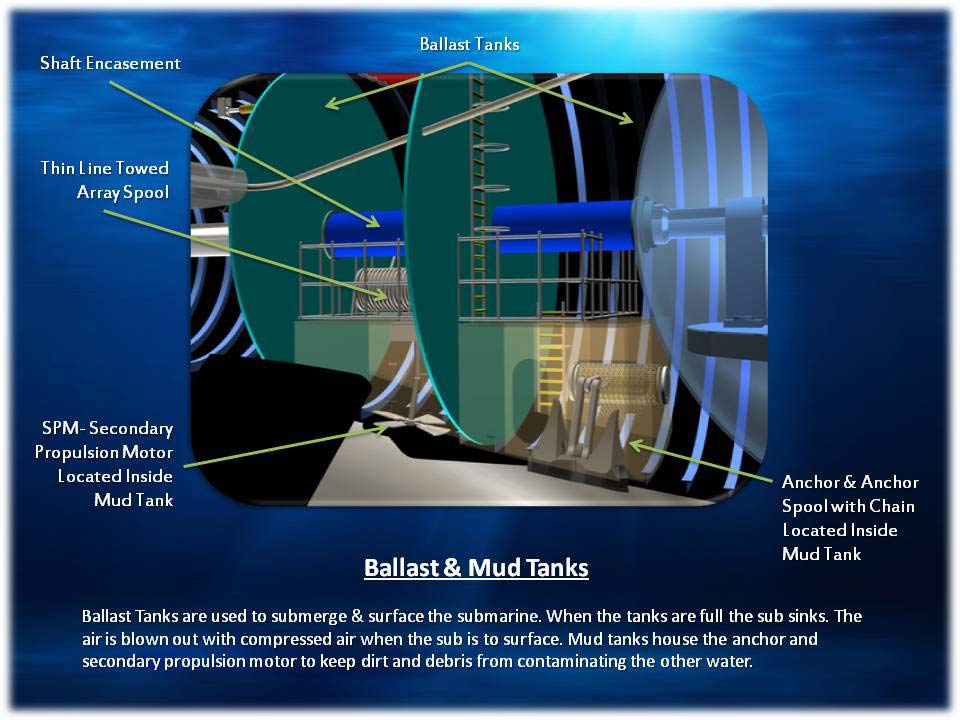

Ballast and Mud Tanks

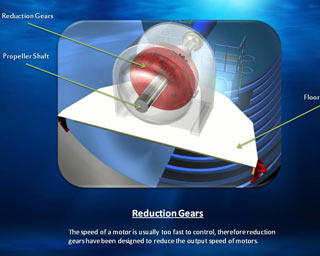

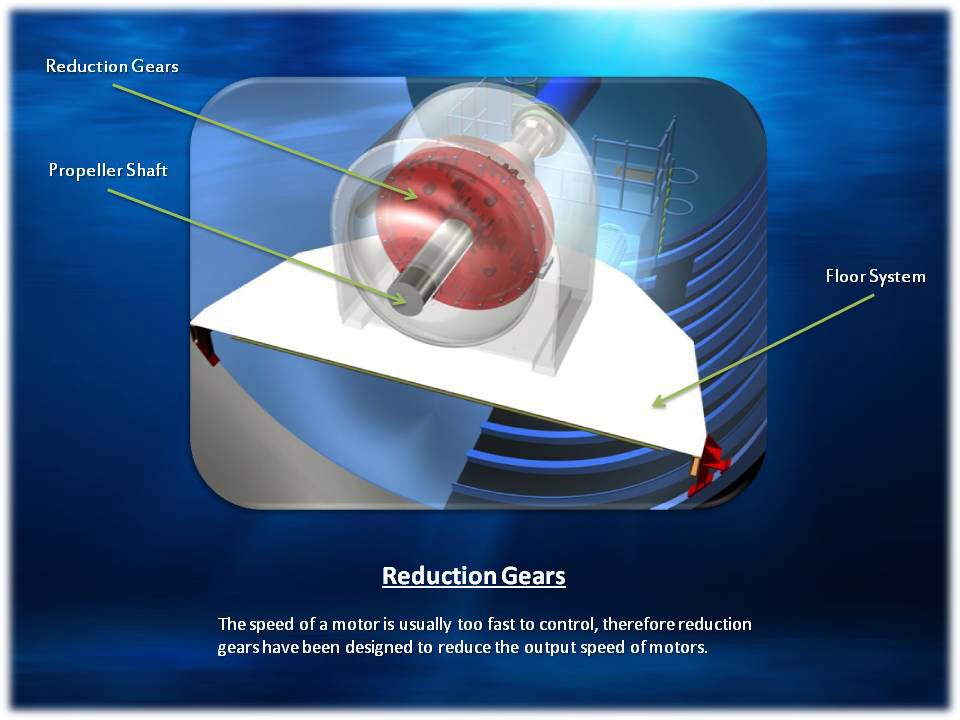

Reduction Gears

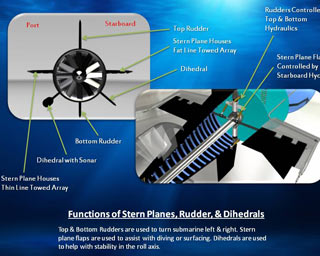

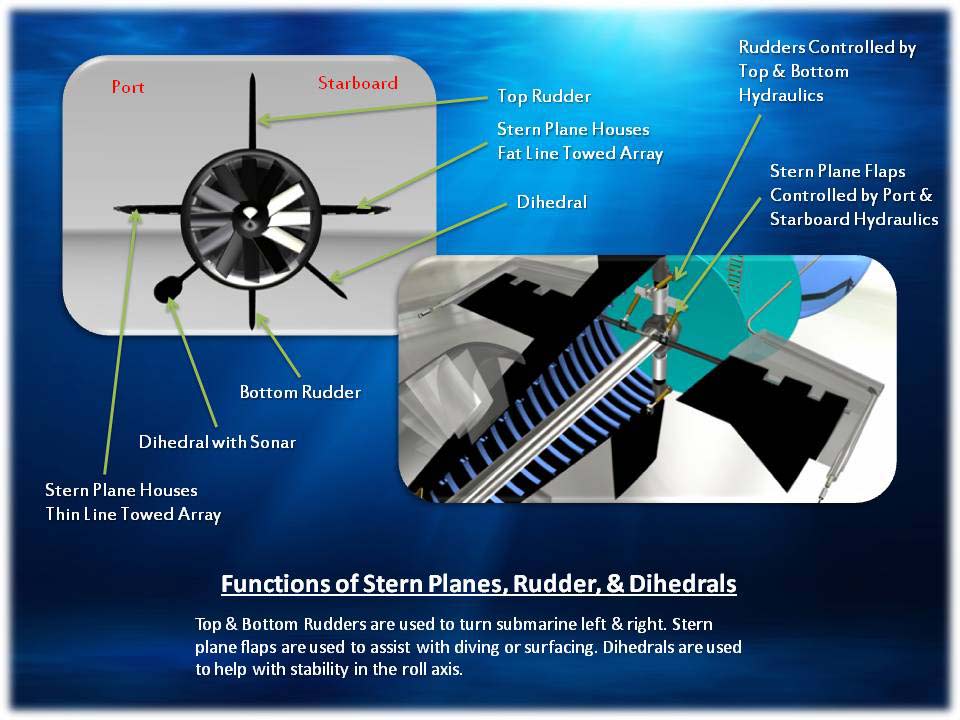

Functions of Stern Planes, Rudder, and Dihedrals

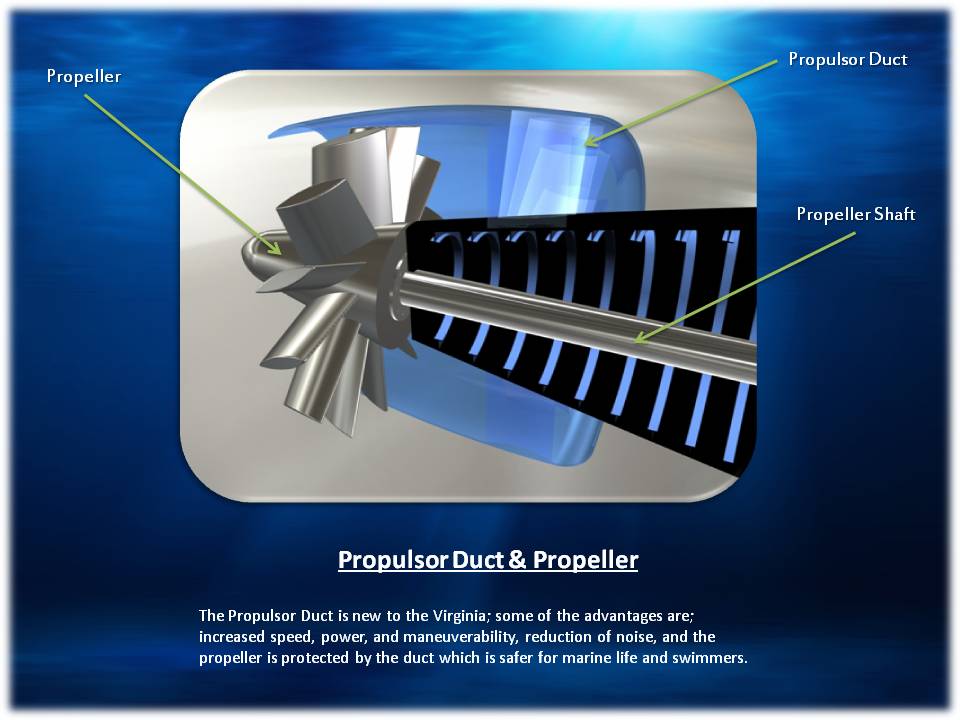

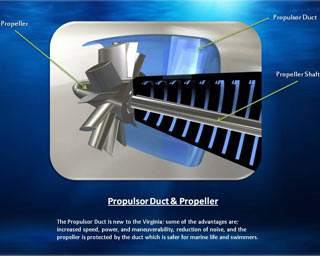

Propulsor Duct and Propeller
Submarine and American Flag

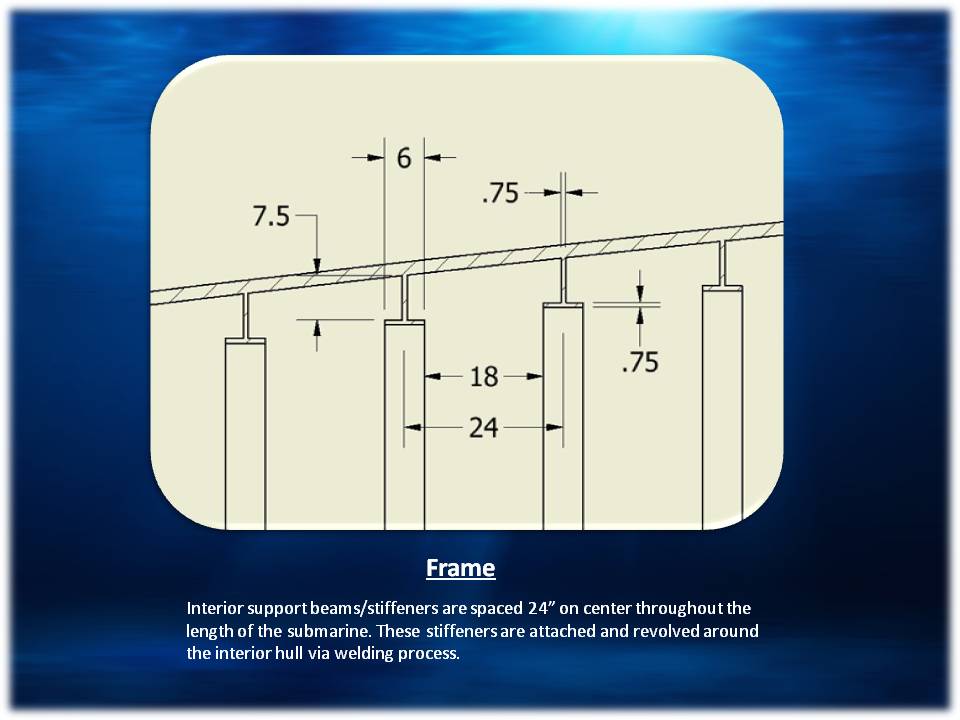

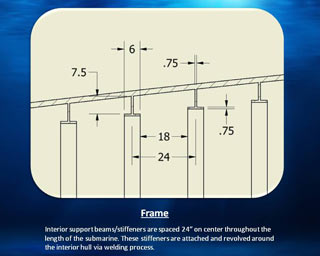

Section Frame
