Virginia Class - Submarine

Virginia Class - Submarine

Five advanced Engineering Design Technology students along with their instructor, Jeff Levy, undertook the task of reverse engineering the most sophisticated weapon ever devised and implemented in the history of Naval war fare; the Virginia Class fast attack nuclear submarine with only information that was available in public domain as well as working with a couple former submarine officers that shared general information about the submarine from first-hand accounts.

The submarine research center in Maine also played a key role in helping the students understand the workings of this complicated boat.

“I reviewed the project and was impressed with your students’ ability to take information within the public domain and develop a believable graphical representation of a fast-attack submarine. Their work clearly demonstrates an understanding of spatial arrangement, functional realism and a high-level of competency utilizing the full capability of the design, too.”
Chris Miner – VA Class Project Manager, USN.

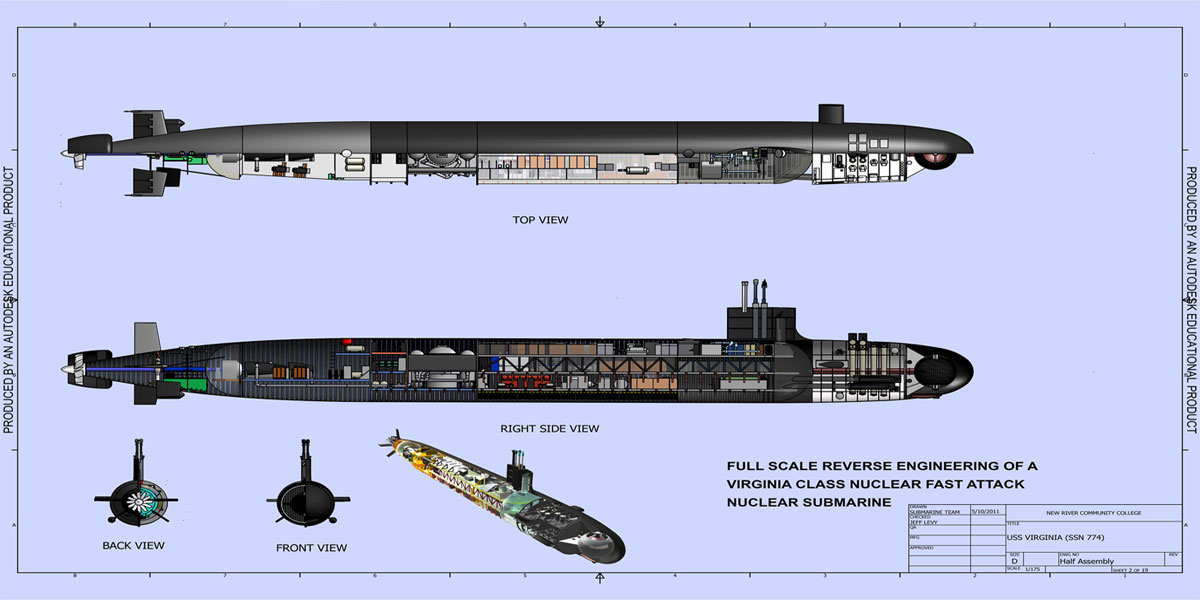

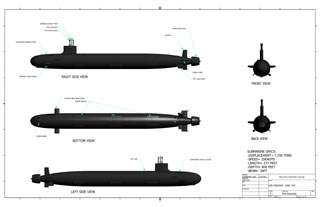

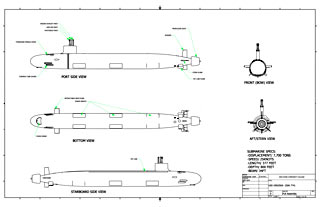

VA Class - Submarine Details

USS Virginia SSN 774 Section 7

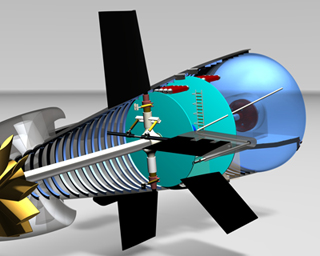

USS Virginia SSN 774 Section 7 - Stern

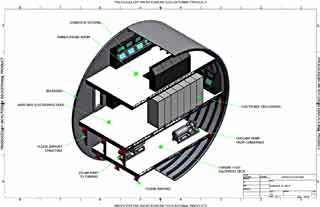

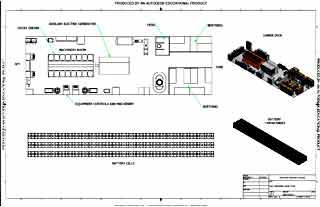

Bottom Deck Floor Layout Section 1

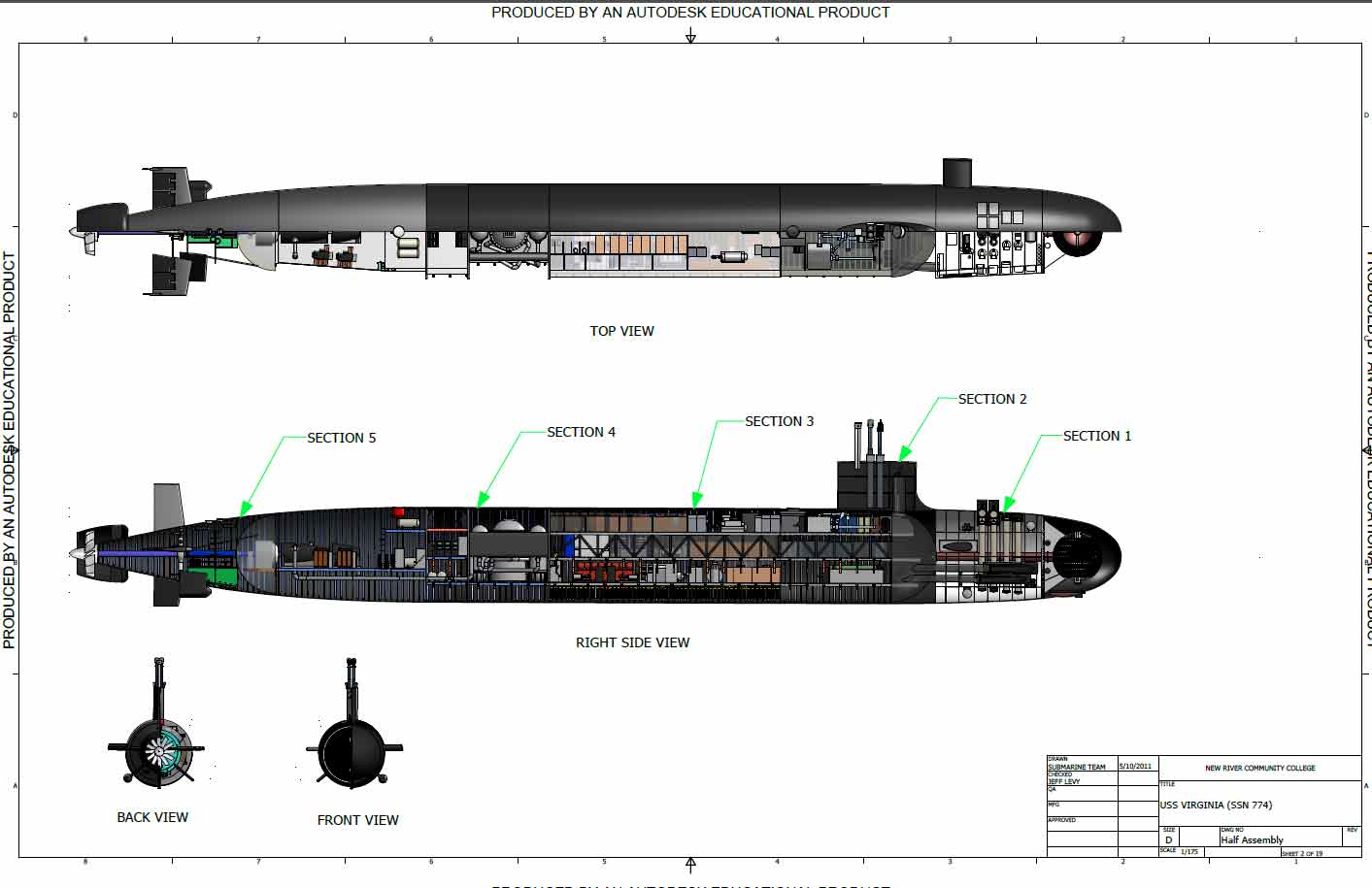

Half Assembly
Fall Assembly
Fall Assembly 1

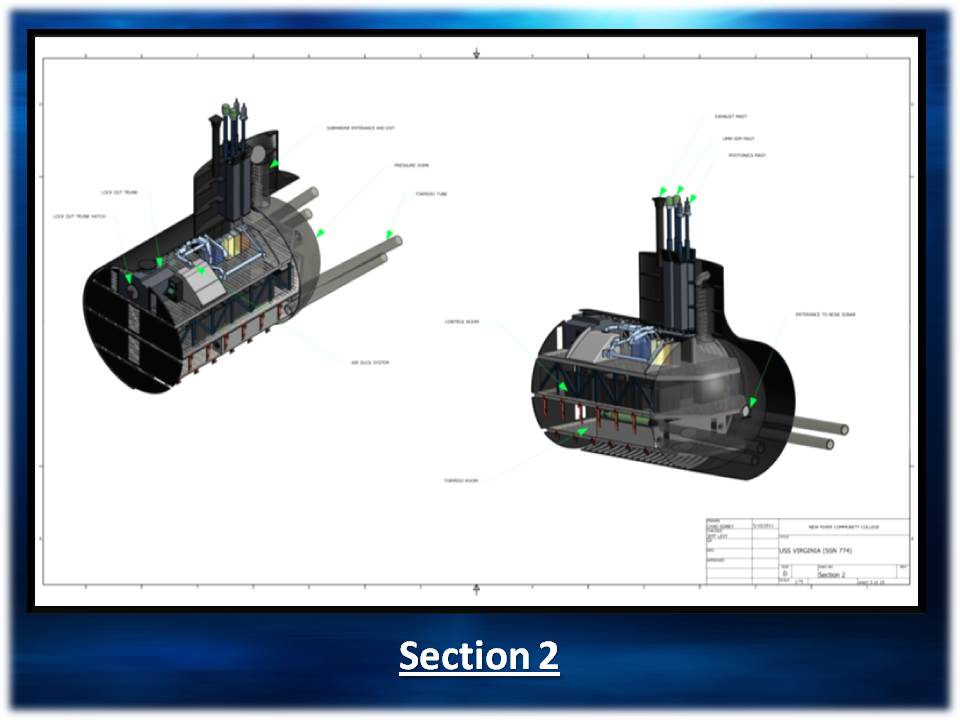

Section 2 Middle Deck
Section 2 Full View

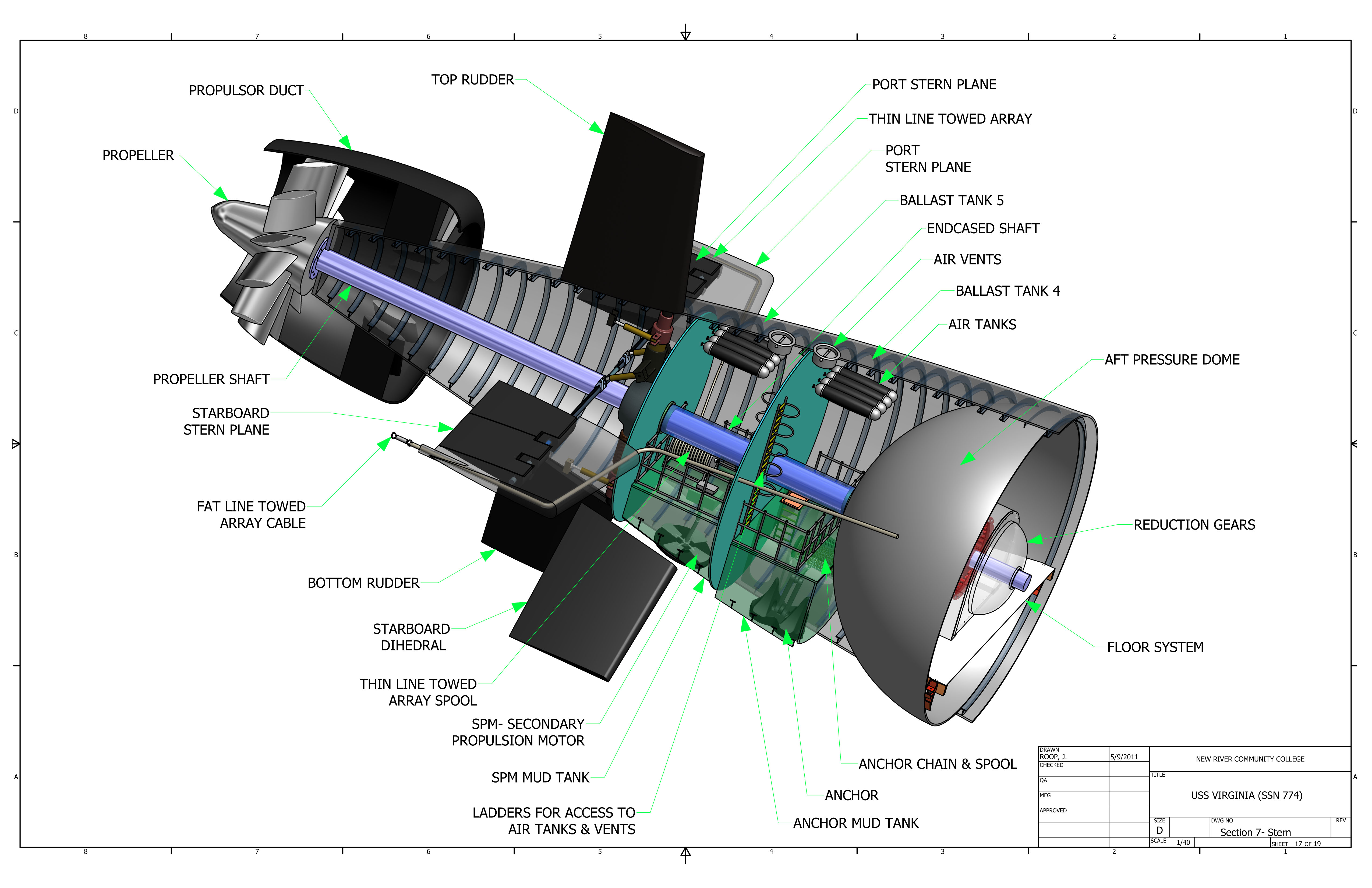

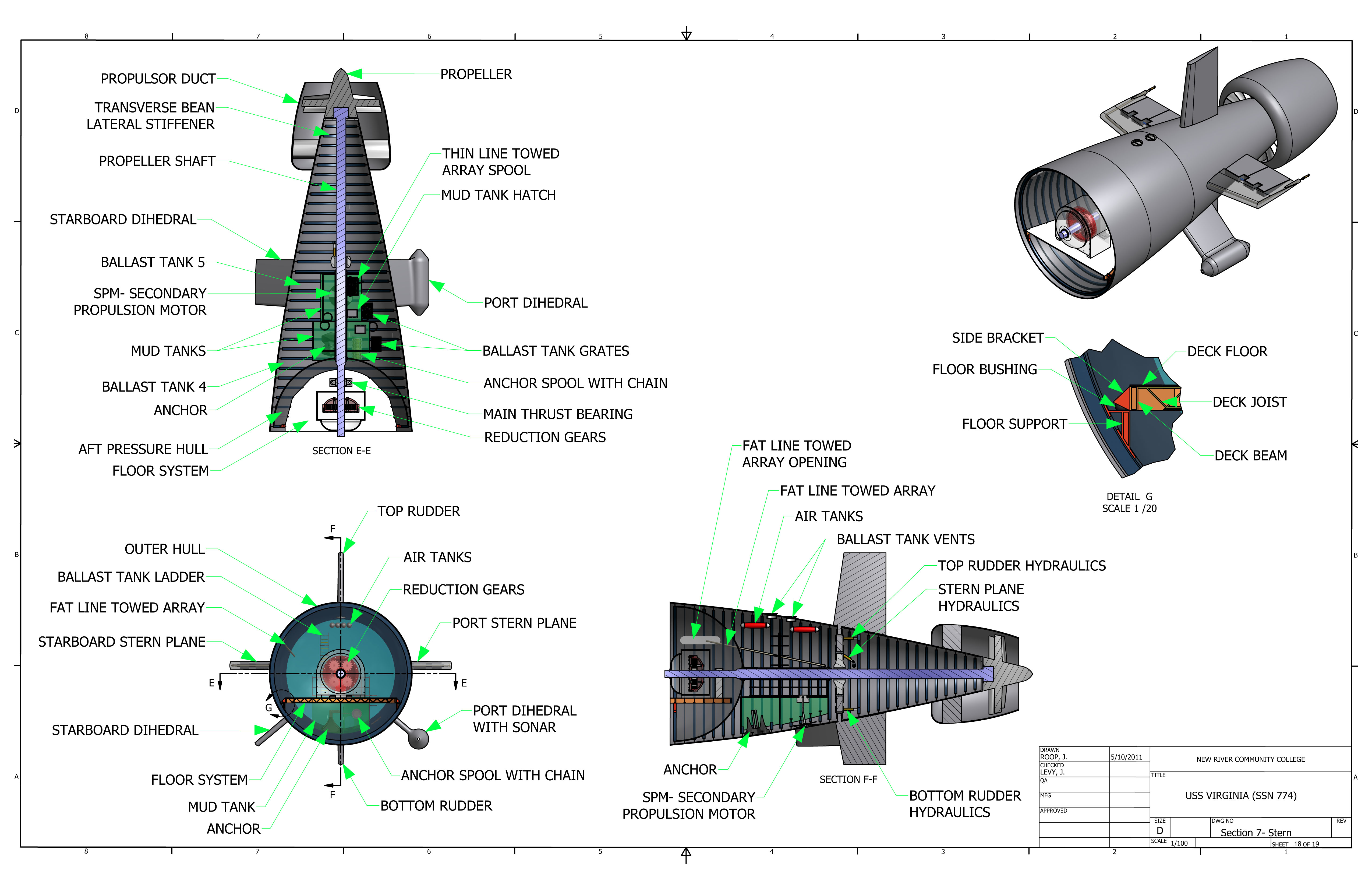

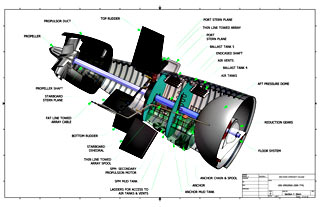

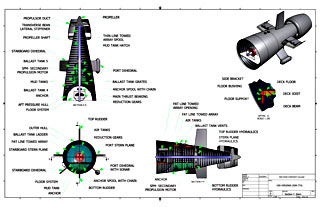

Aft Section Detail

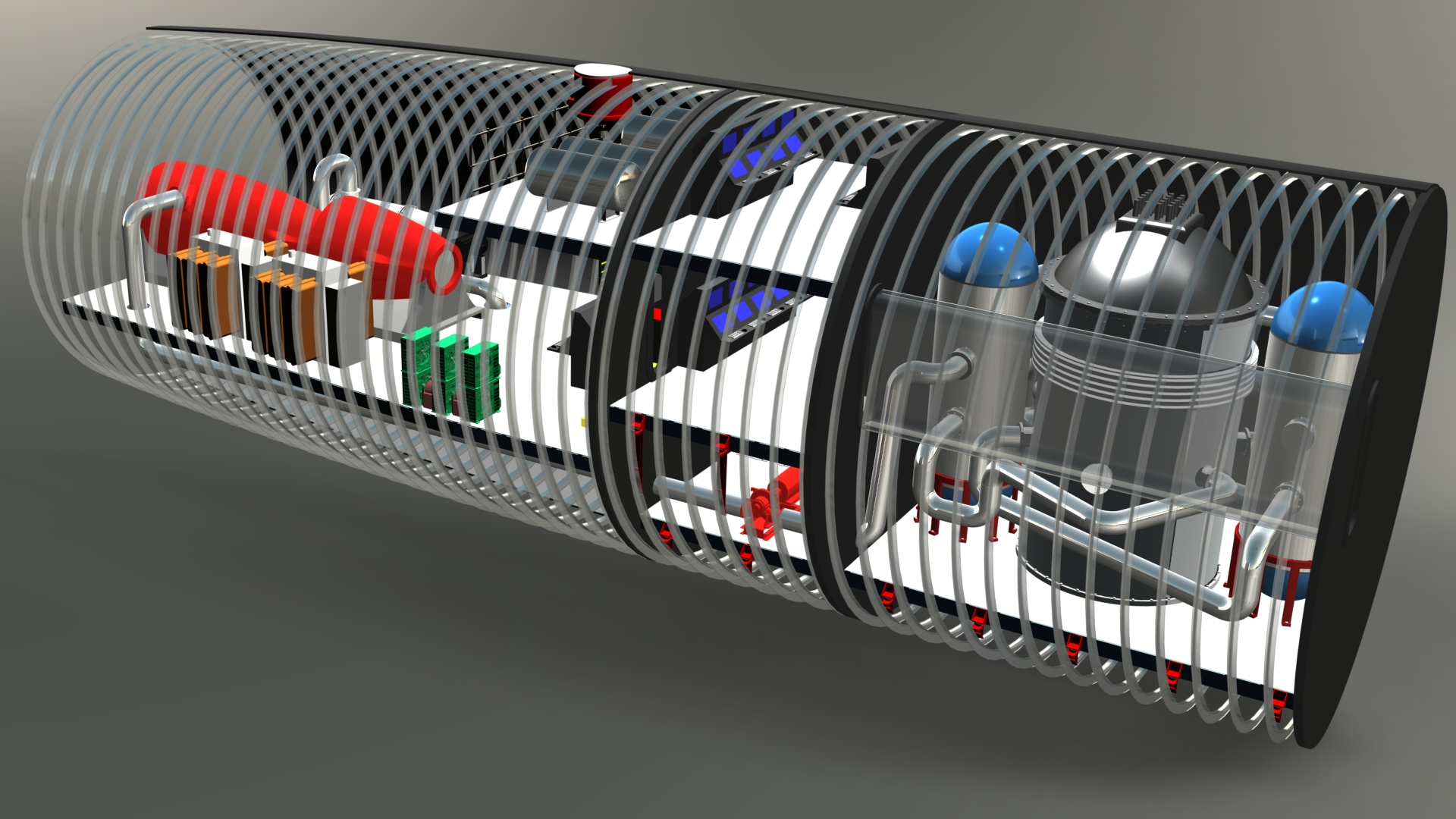

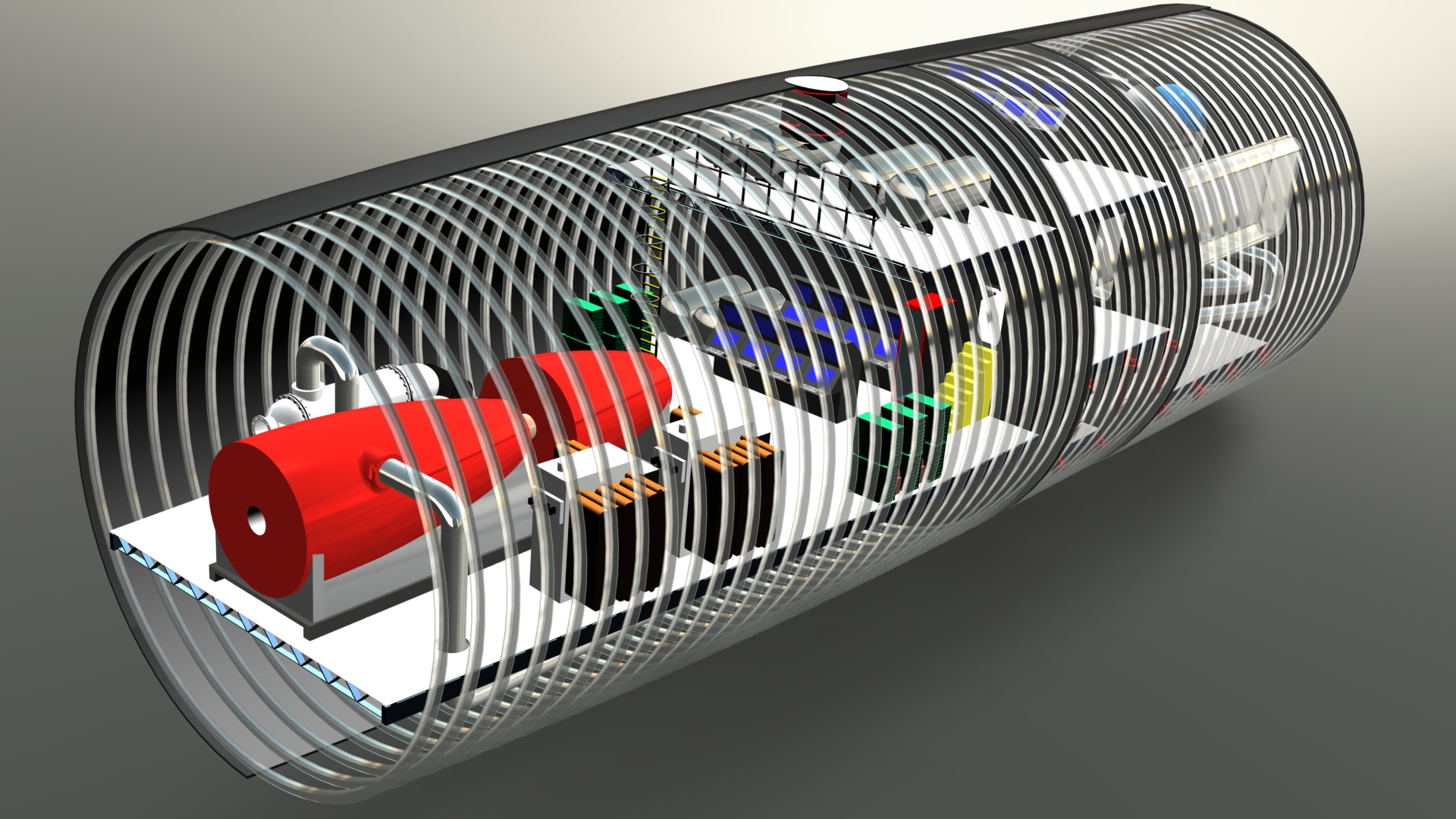

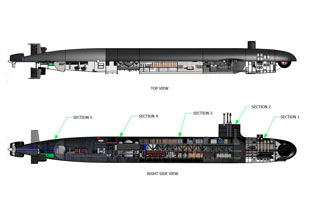

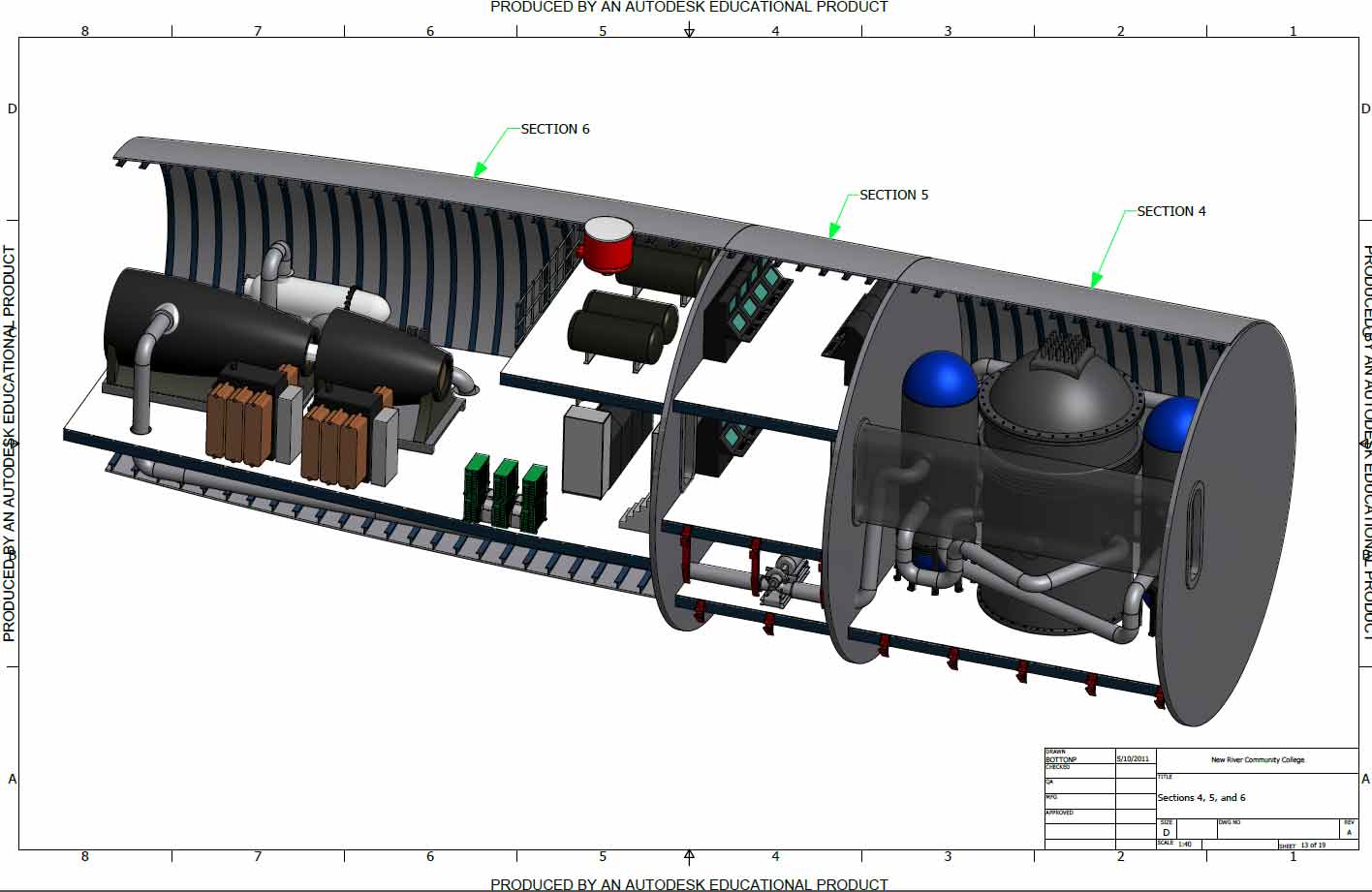

Section 4,5,6
Section 4,5, and 6

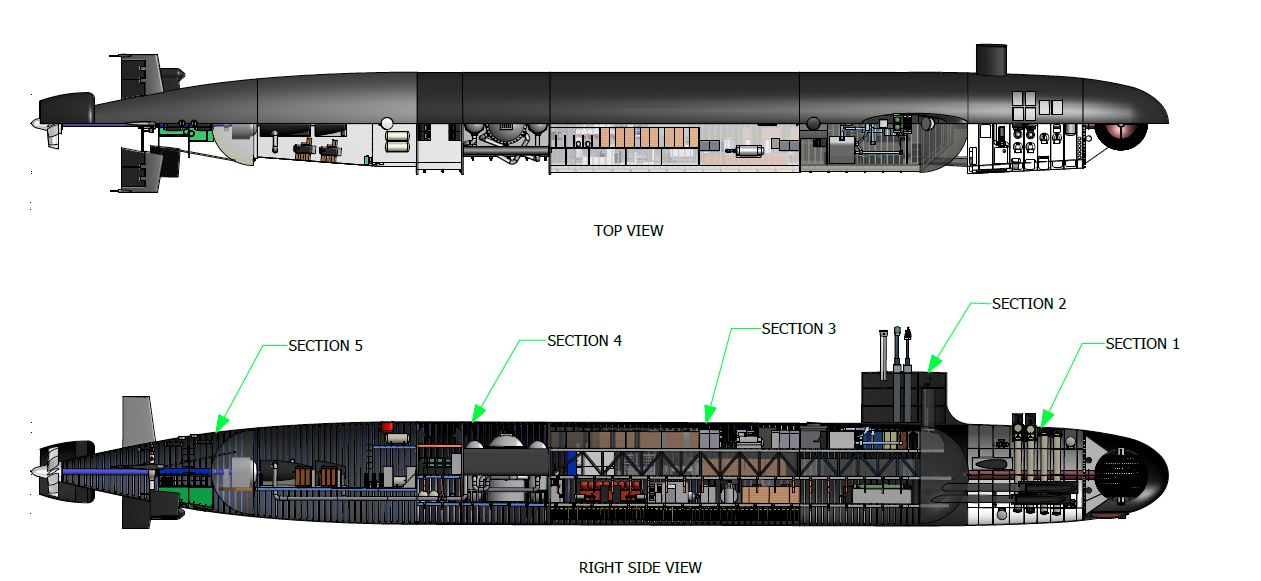

Full View

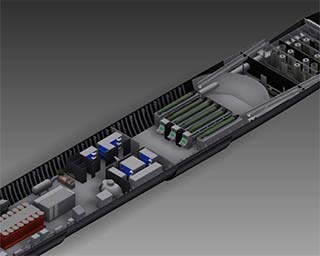

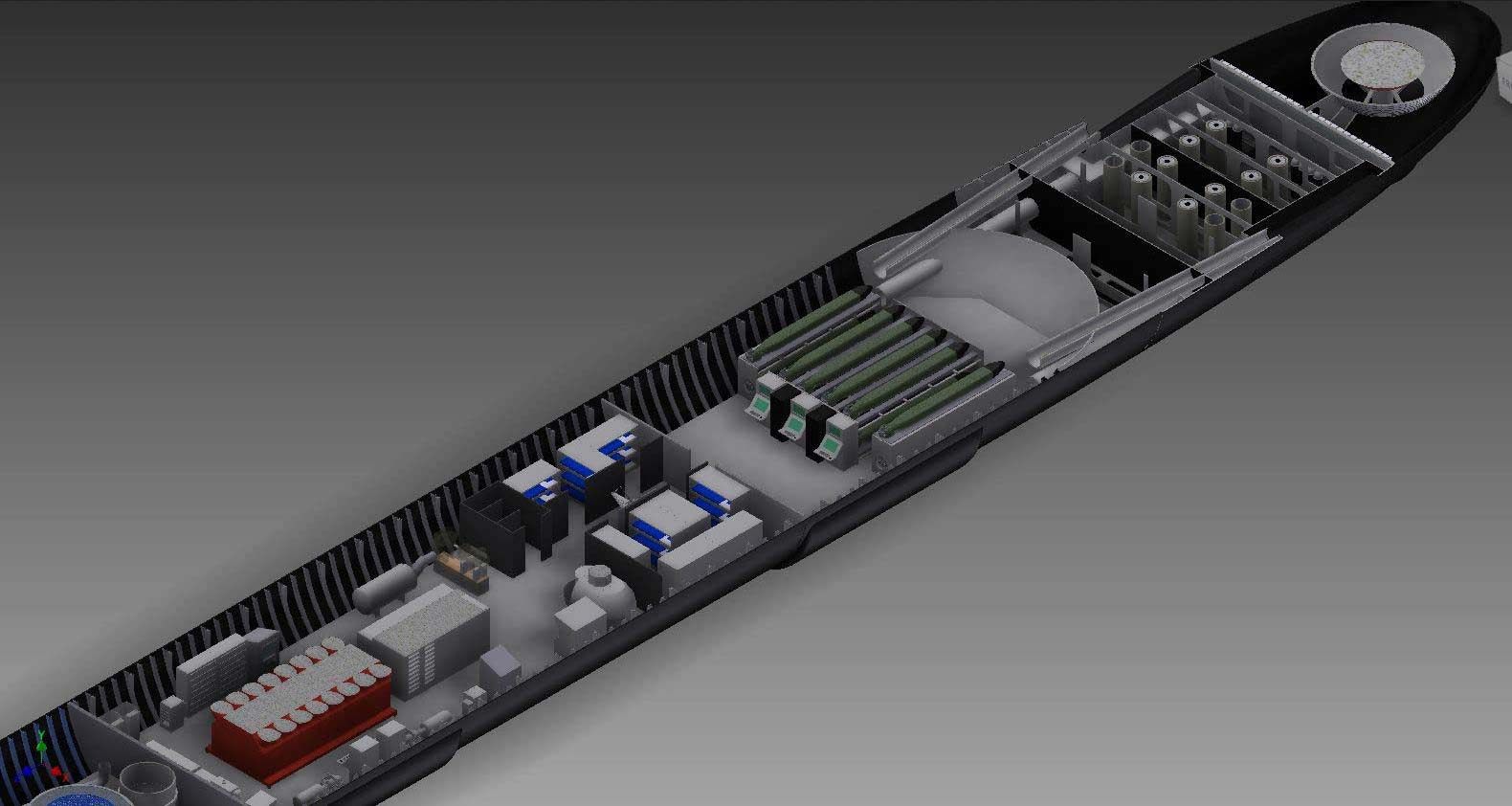

Section 3
Section 3
USS Virginia (SSN 774)
Section 7 Stem

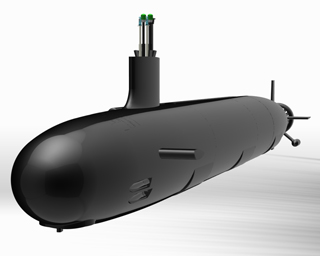

VA Class Renders

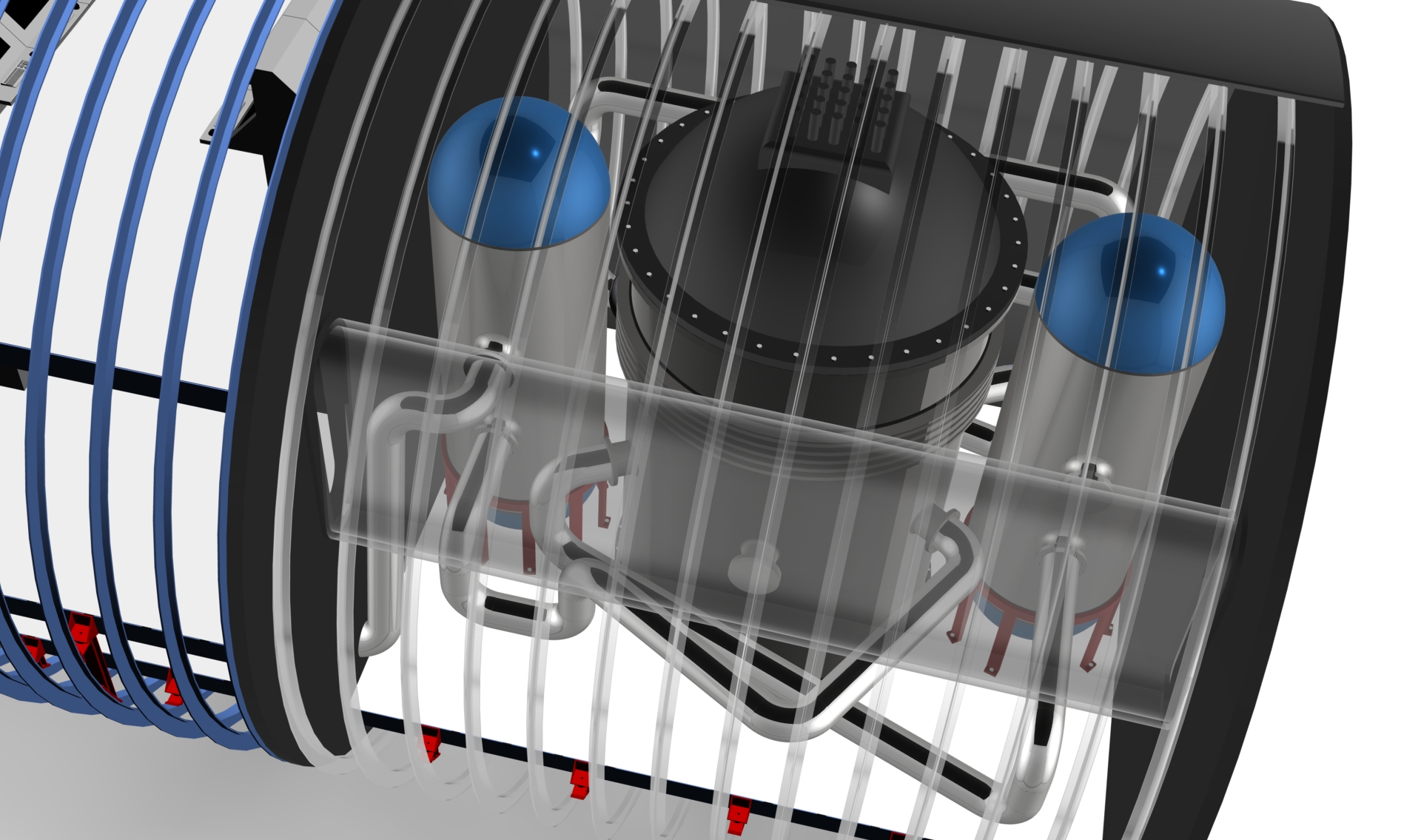

Reactor Room

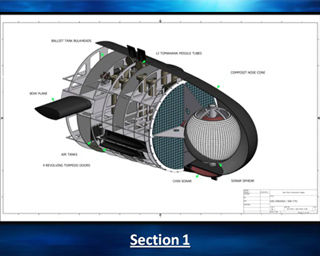

Section 1 Bow Dome

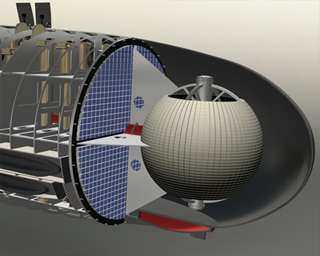

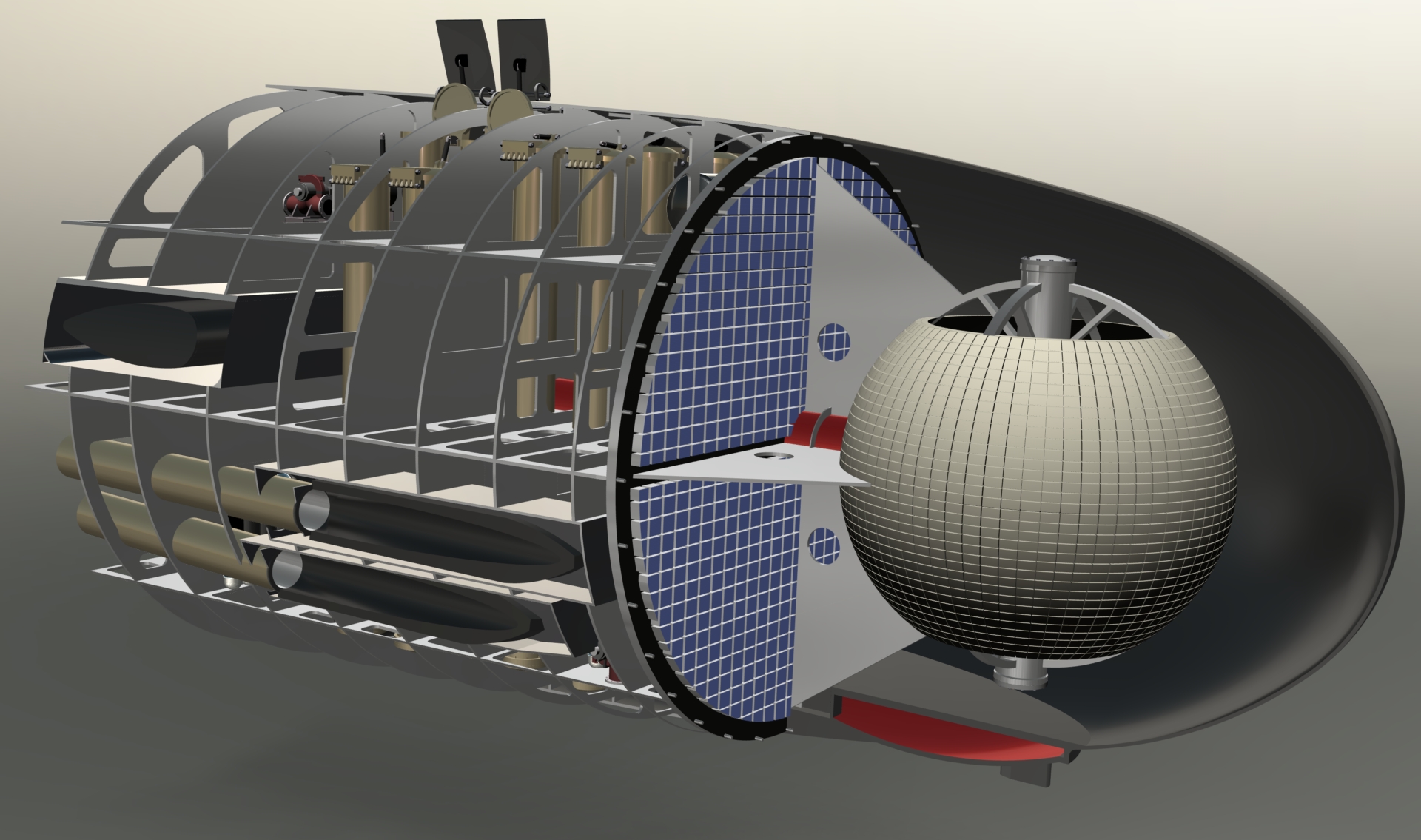

Section 1 Cut Away

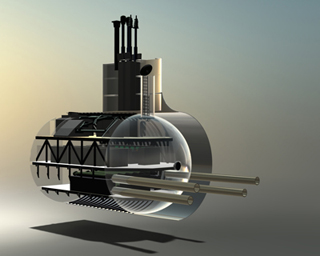

Section 2 Half Assembly ISO Right Site

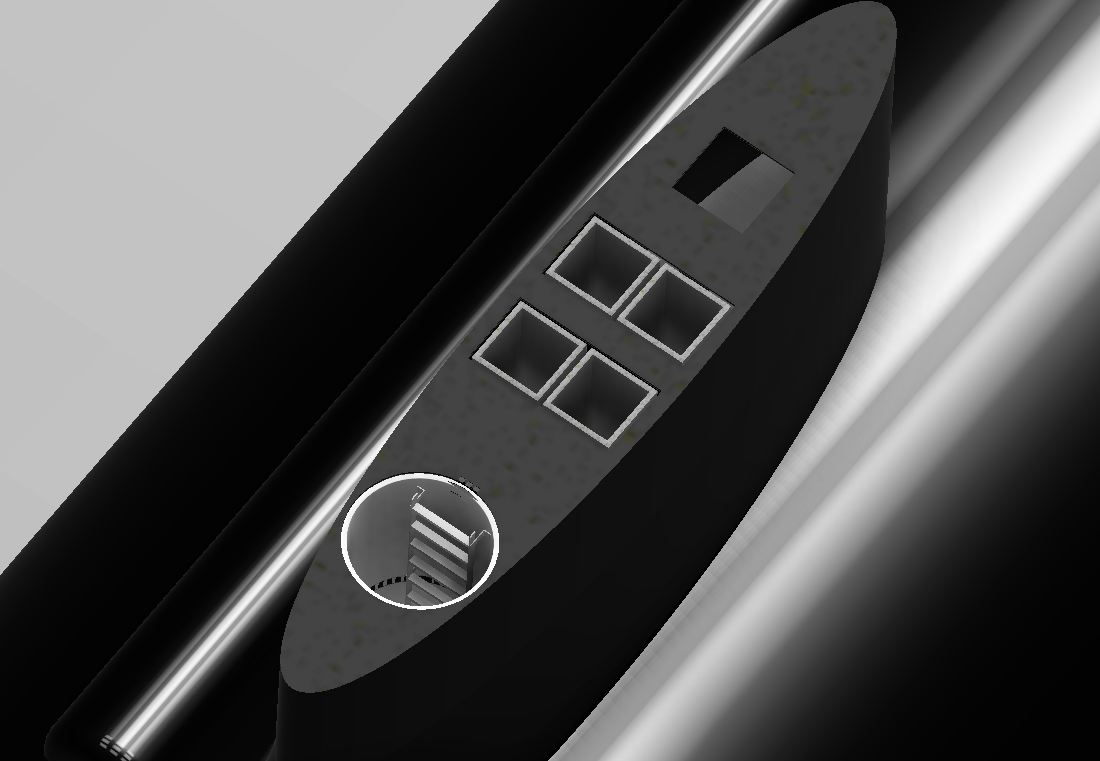

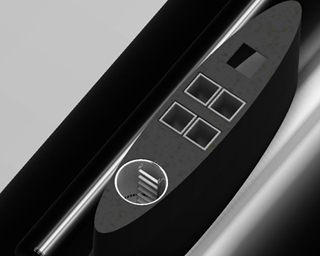

Section Ladder Mast Sail
Section 2 Half Assembly ISO Right Site
Section 4-5-6

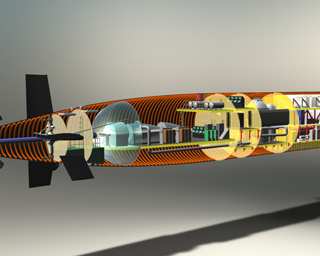

Stern Back

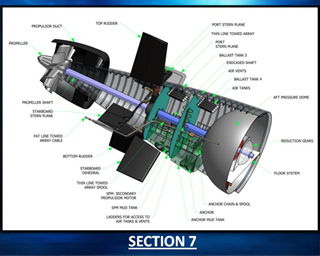

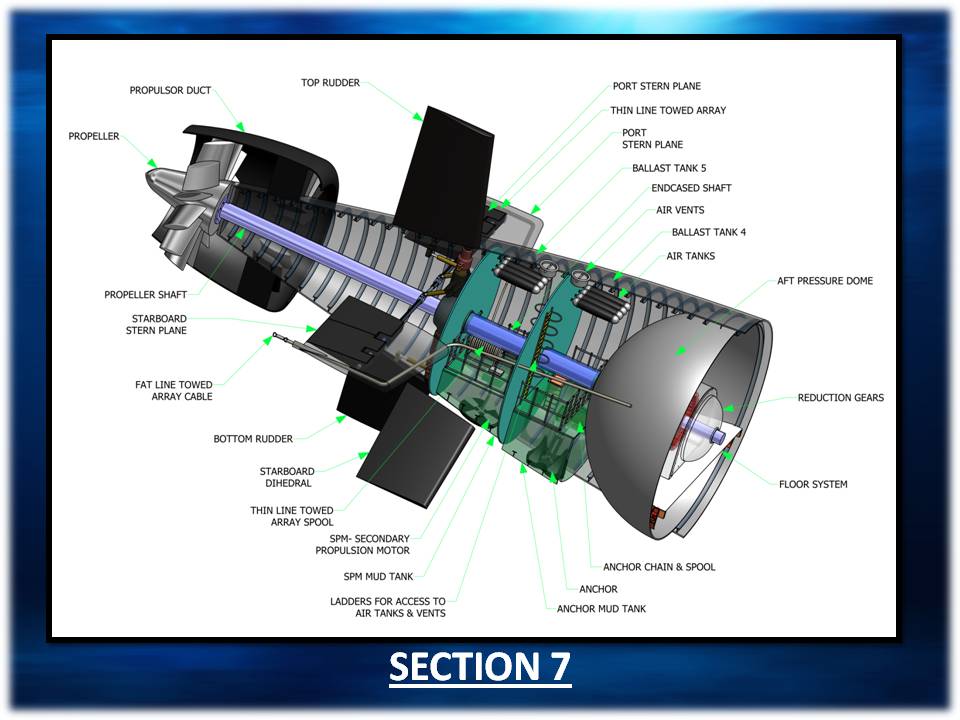

Section 7
Section 1
Under Water

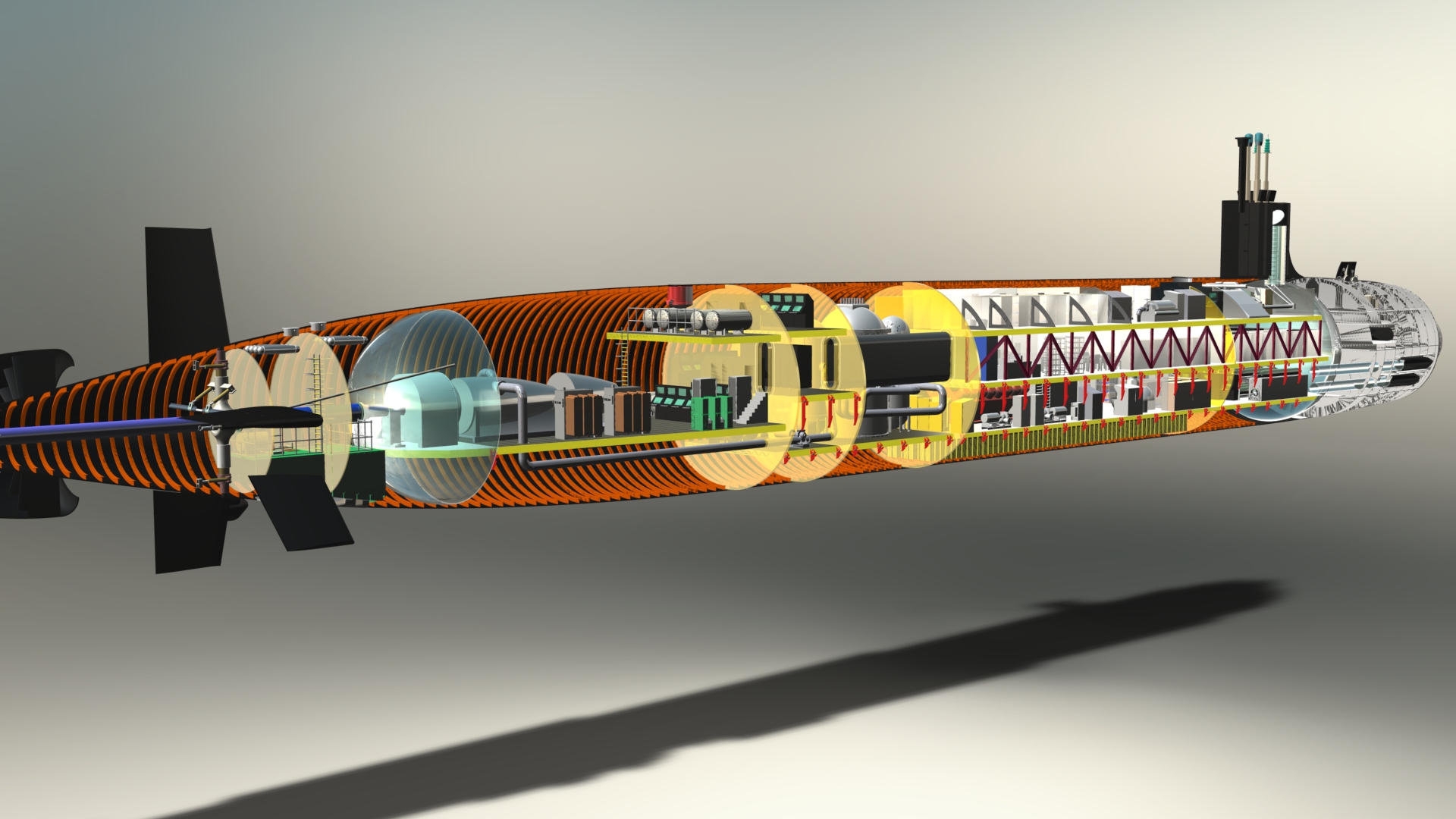

Half Assembly Front Side
Half Assembly Back Side

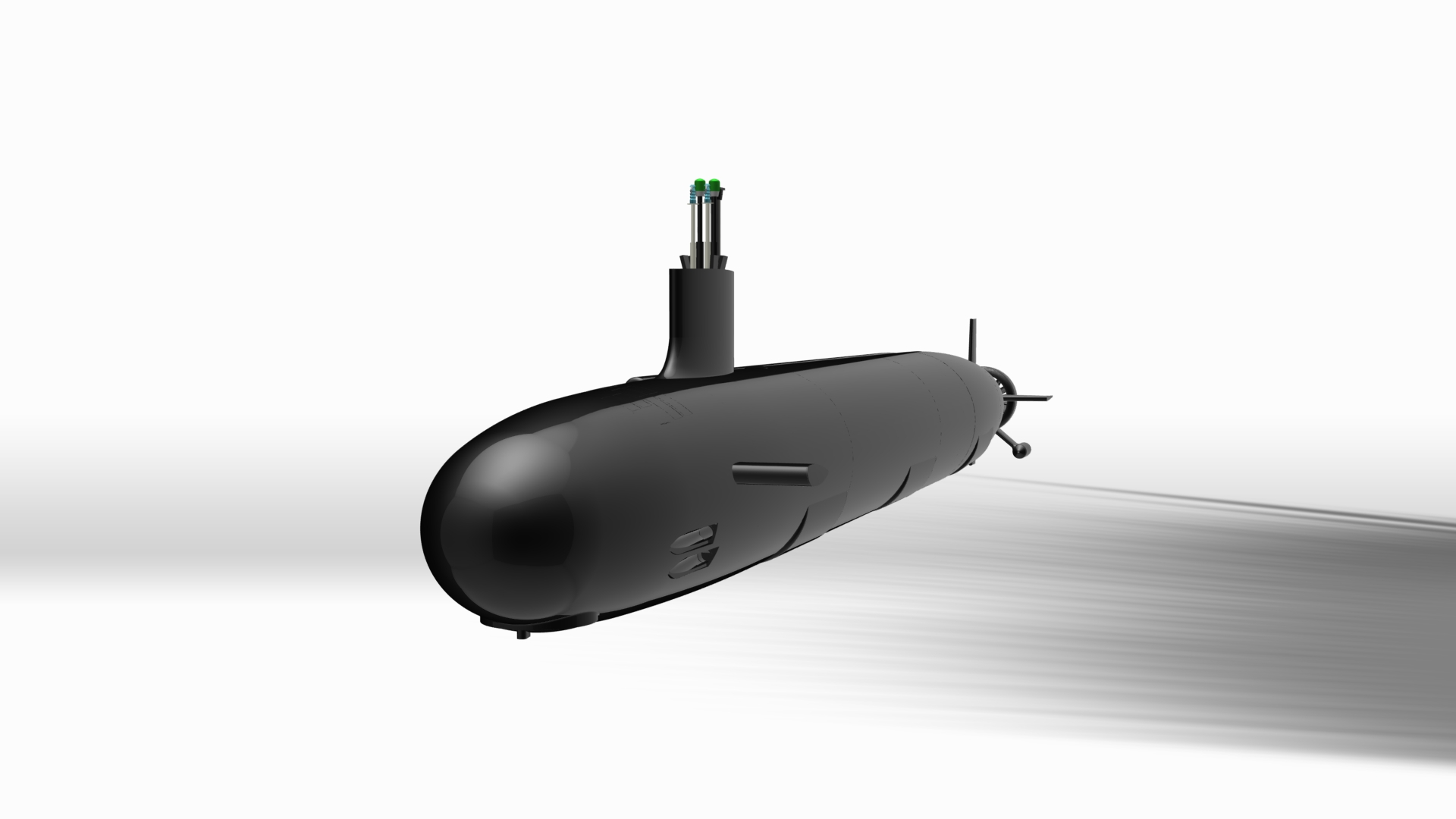

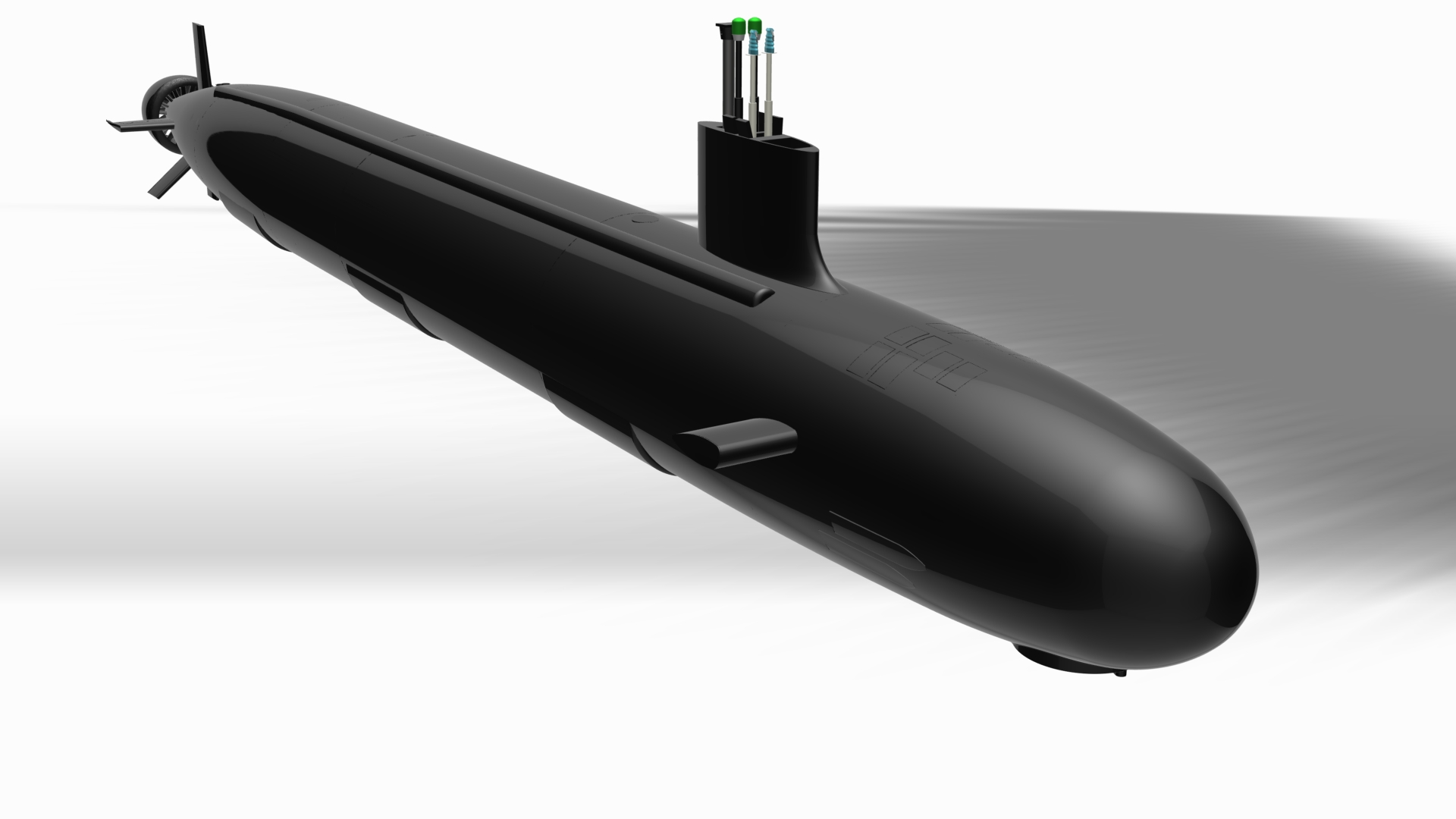

Full Assembly Left Side
Full Assembly Right Side

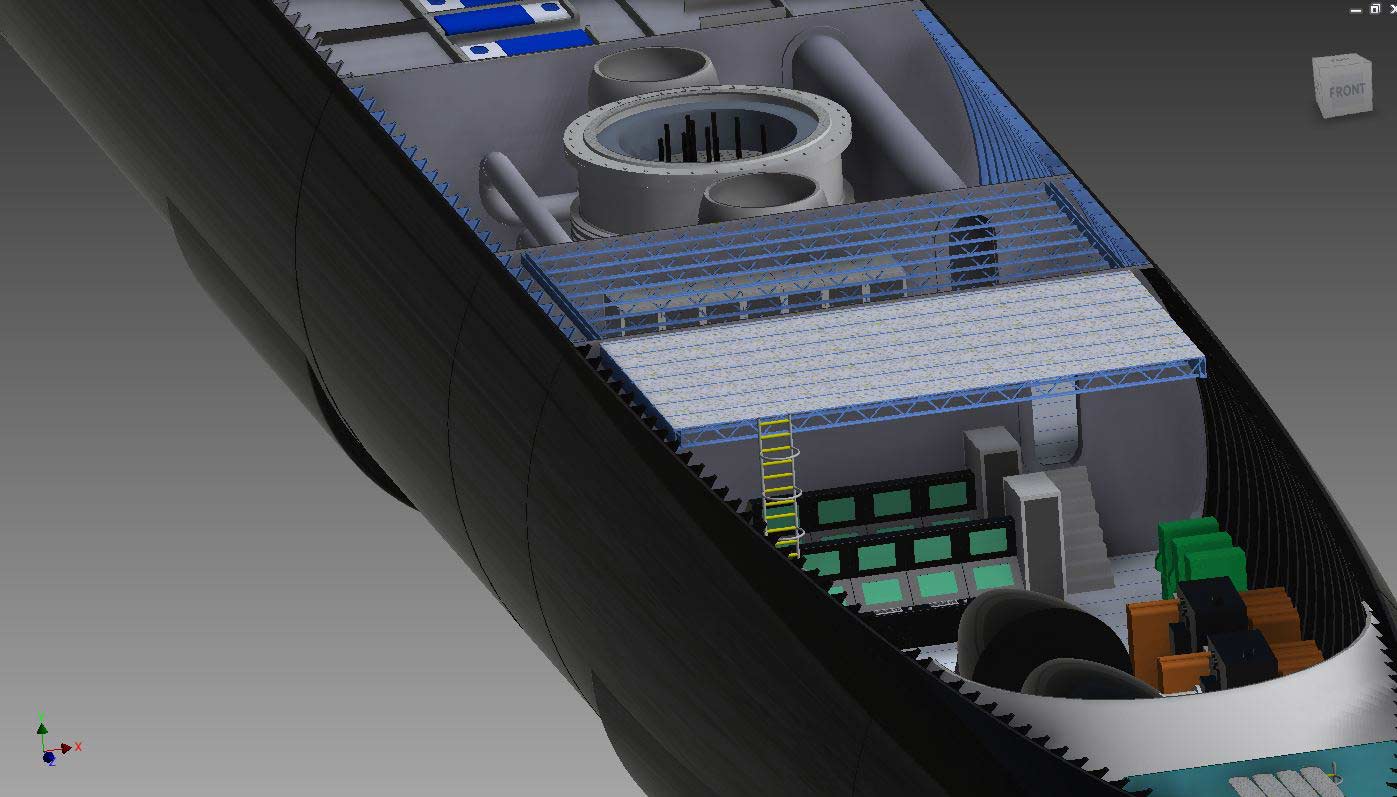

Section 2 Rear
Section 3 Rear
Section 4 Rear

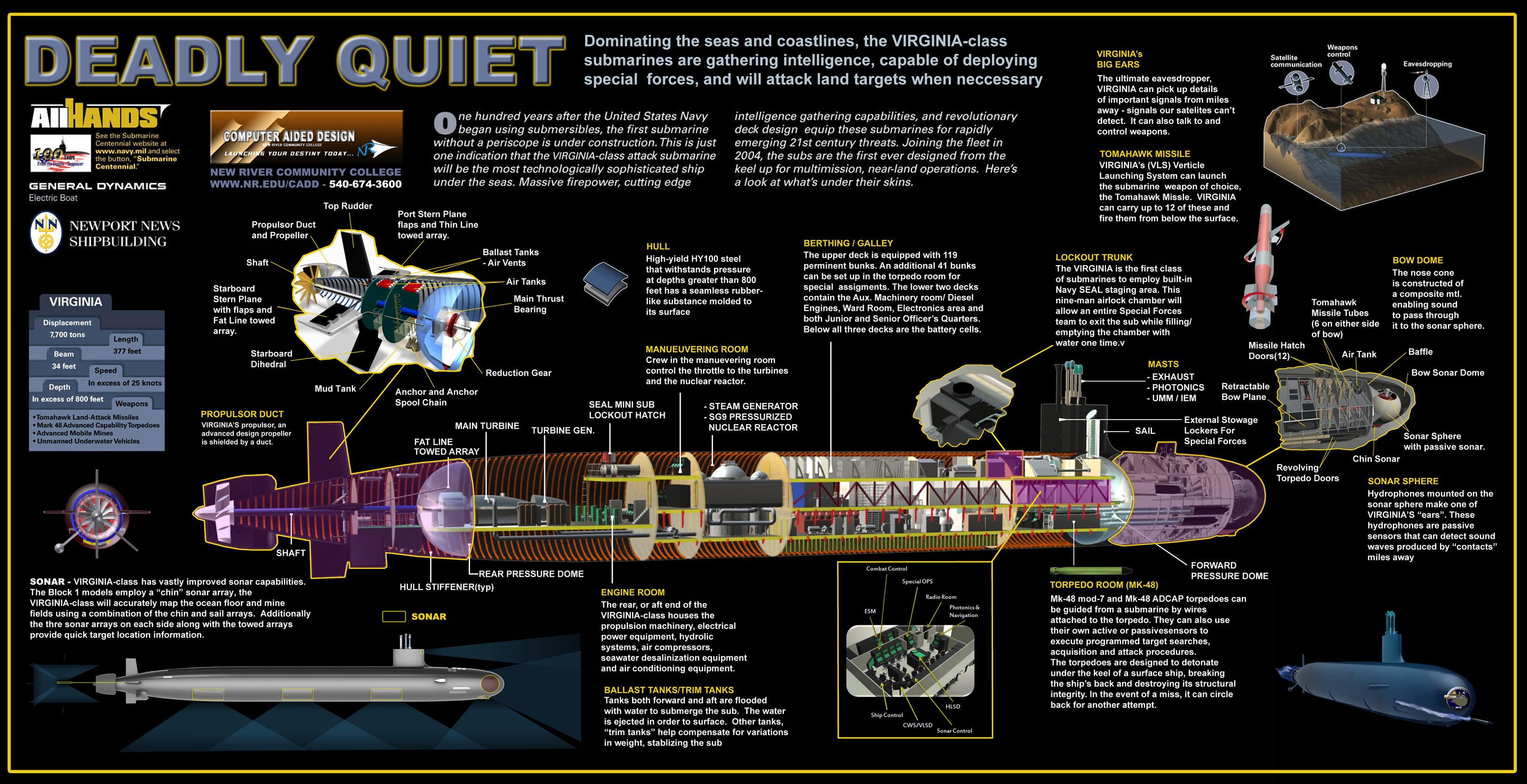

NRCC SSN774 Poster

VA Class Slides

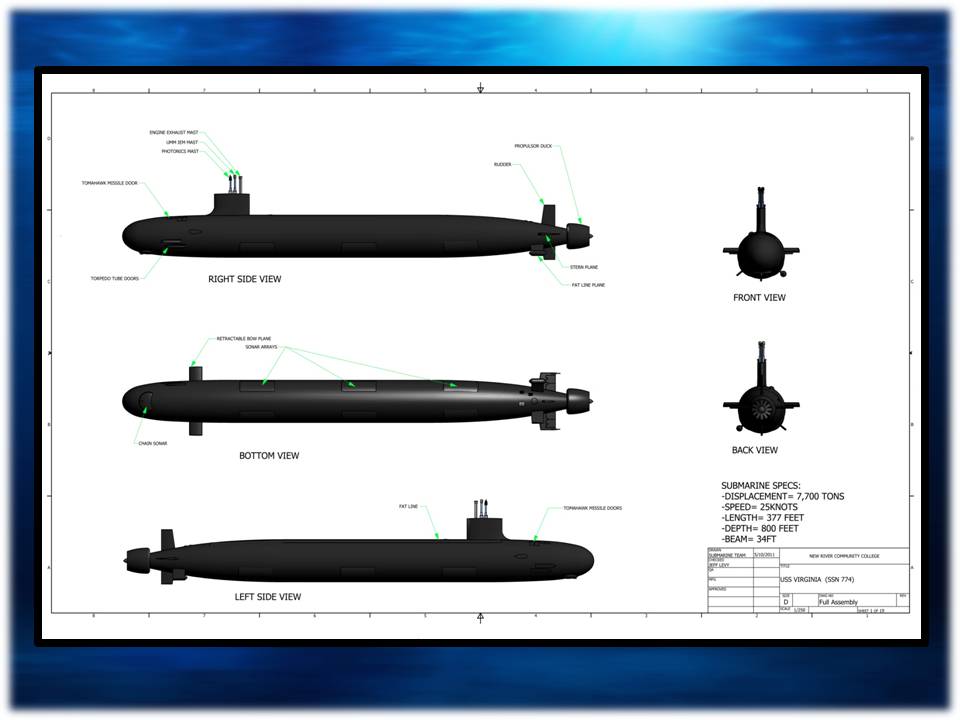

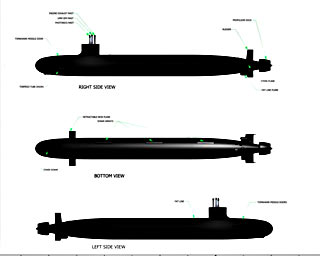

USS Virginia SSN 774

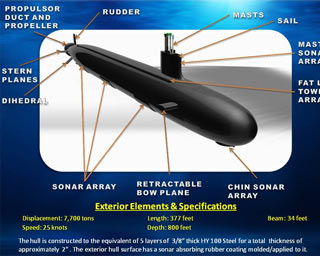

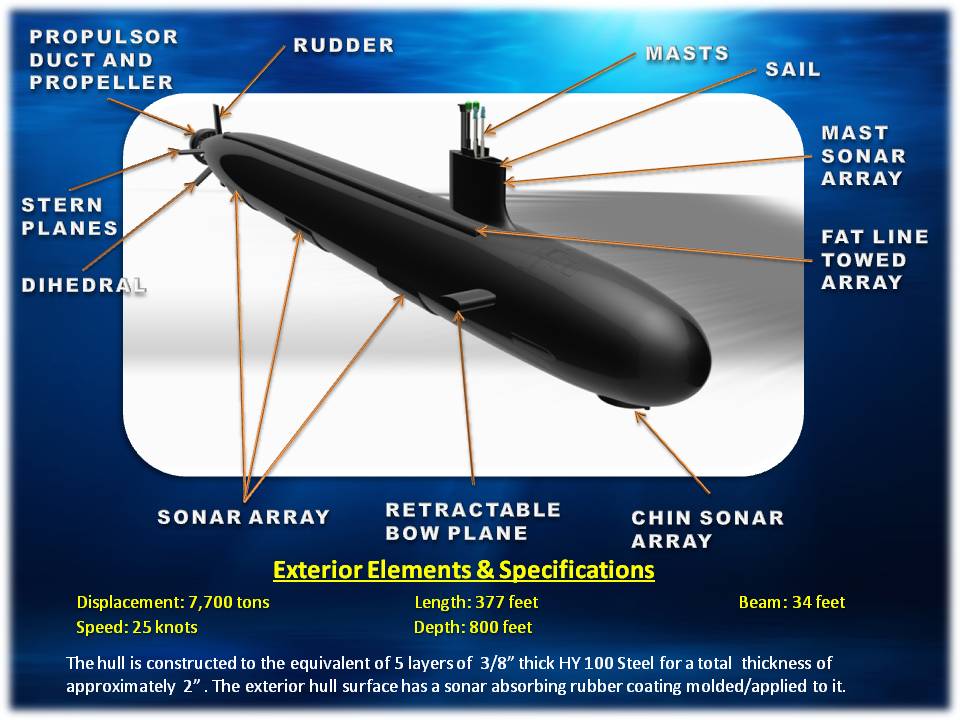

Exterior Elements & Specifications
USS Virginia SSN 774
Final USS Virginia SSN 774

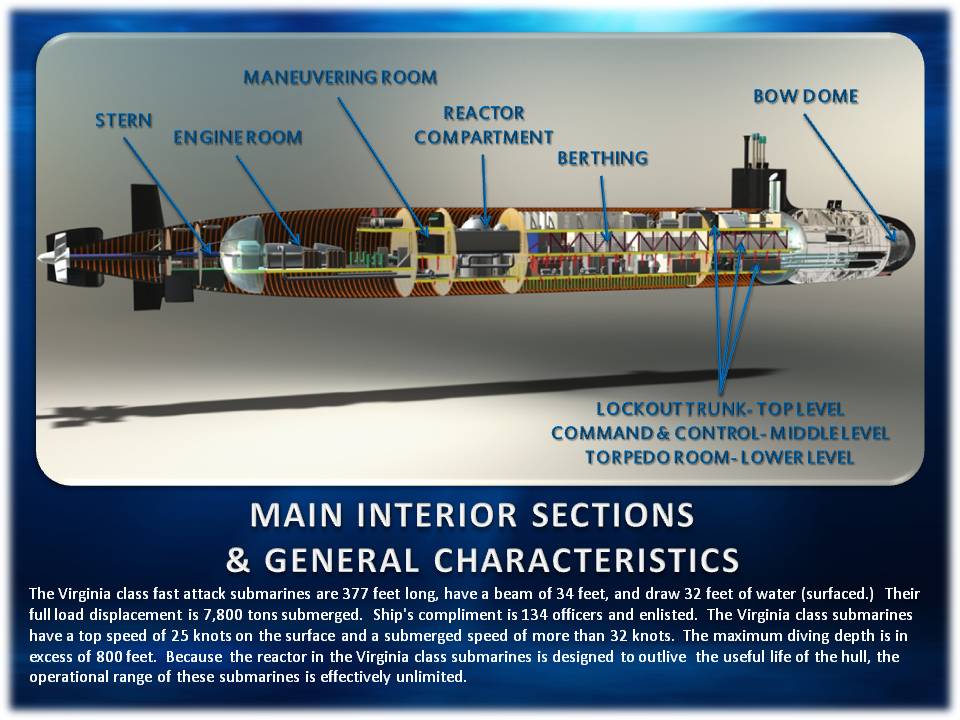

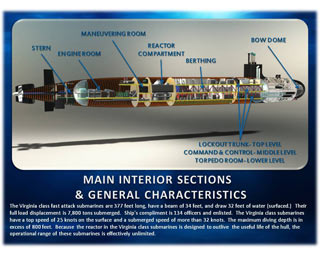

Main Interior Sections And General Characteristics

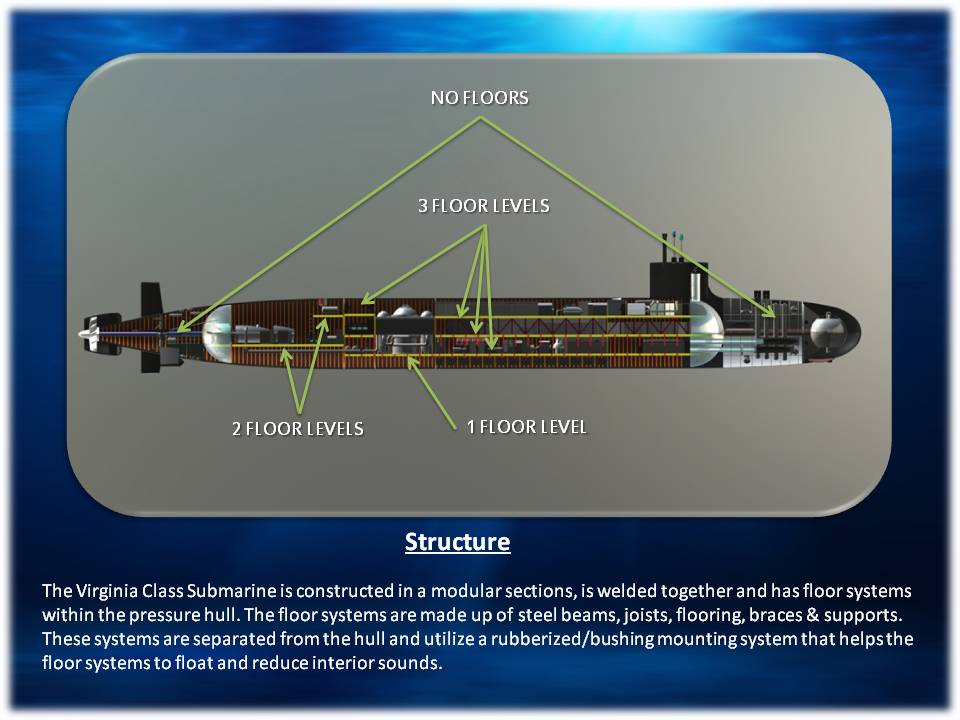

Structure
Weapons

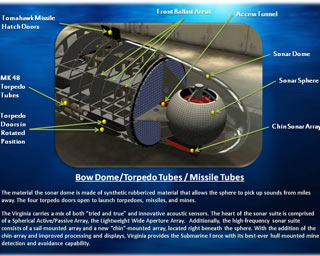

Bow Dome/Torpedo Tubes/Missile Tubes

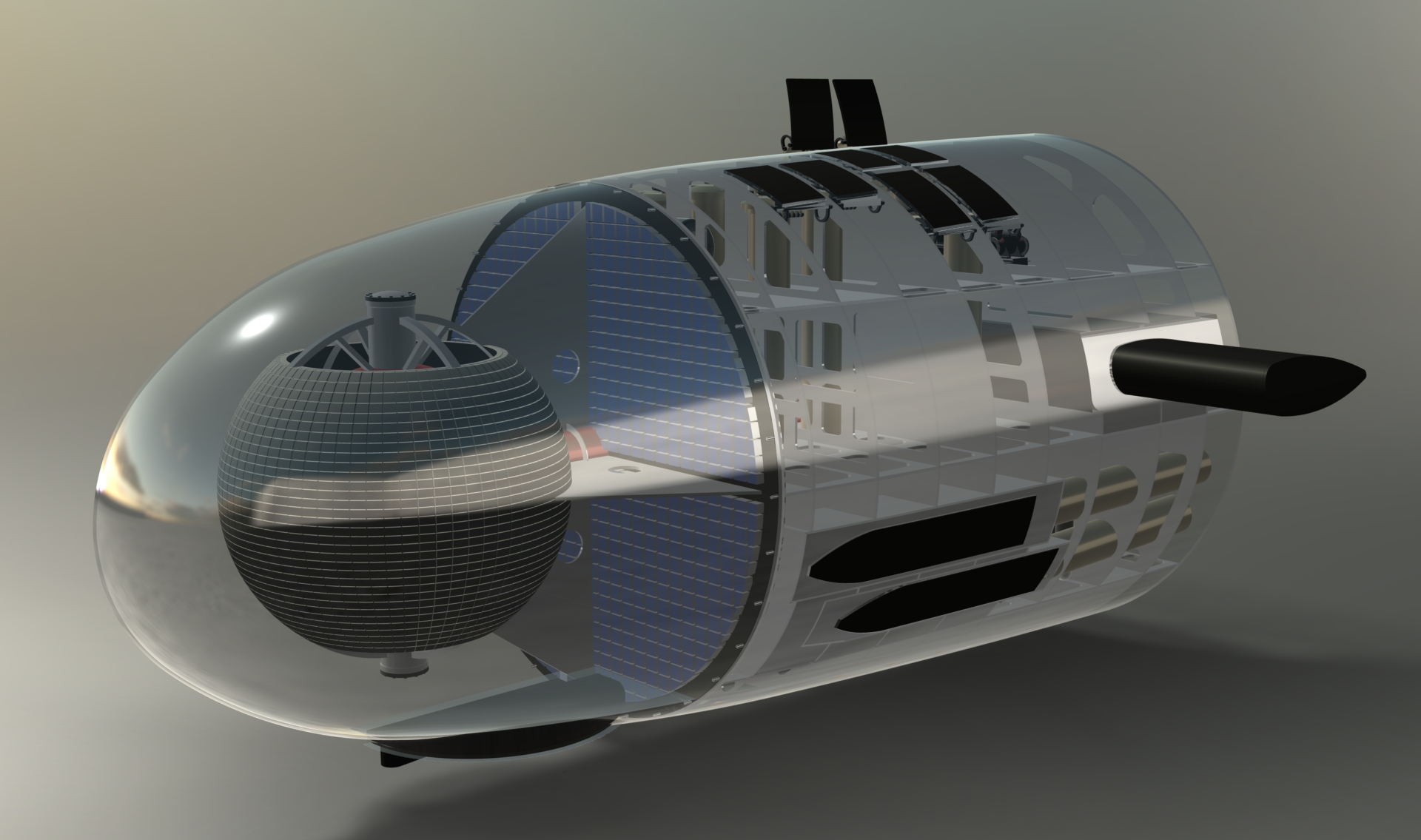

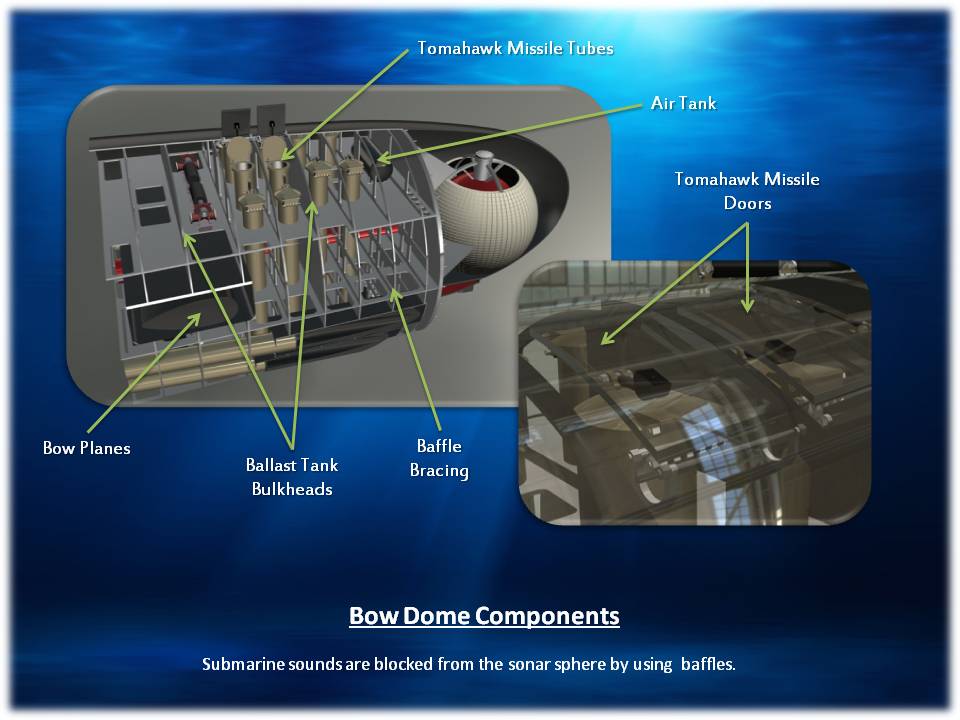

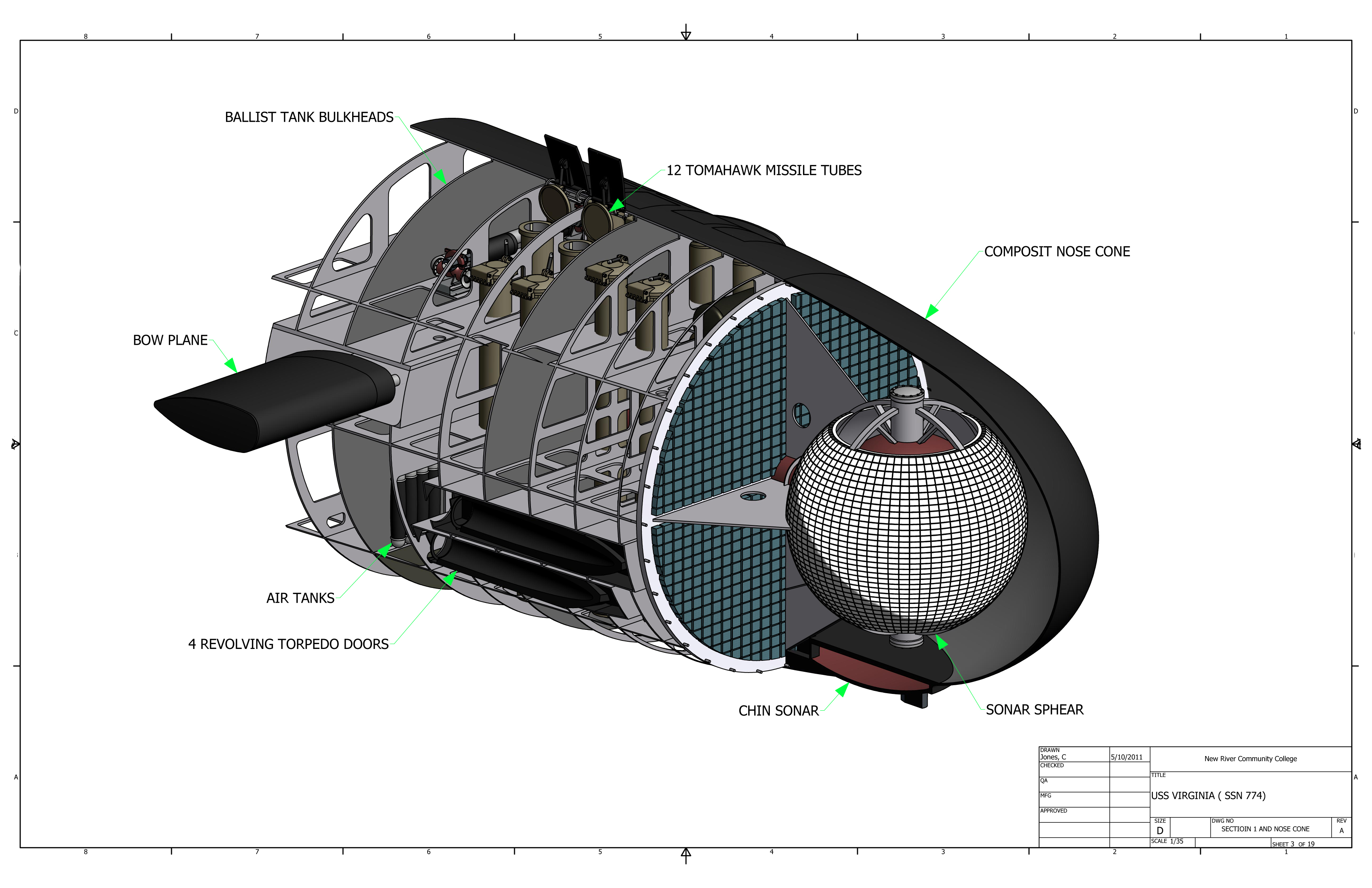

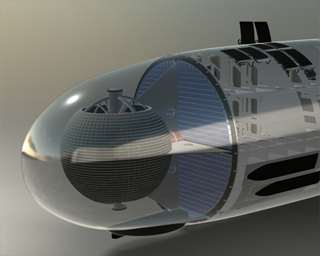

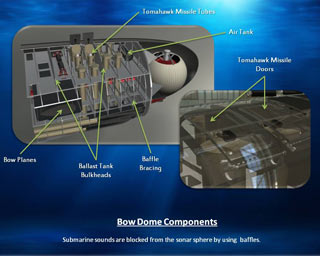

Bow Dome Components

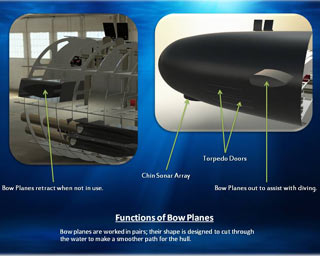

Functions of Bow Planes

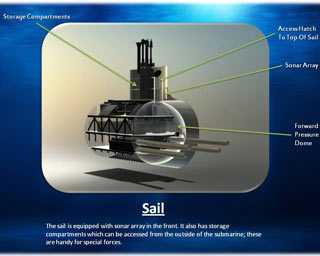

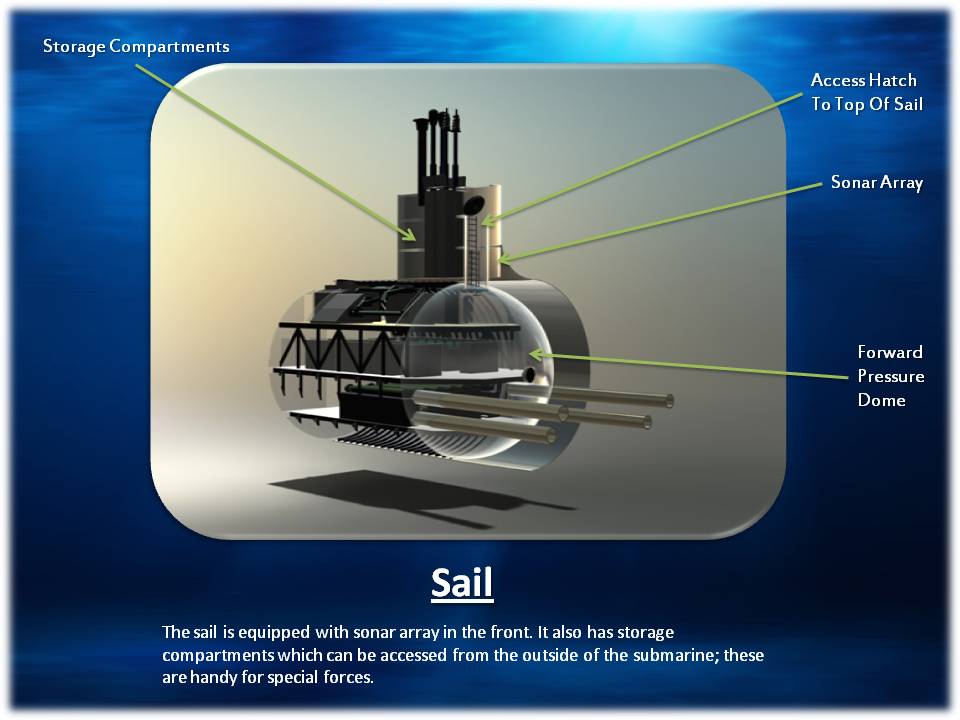

Sail

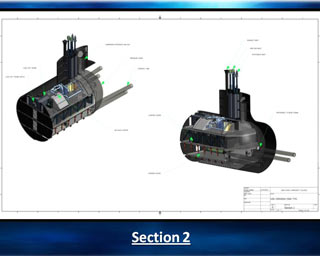

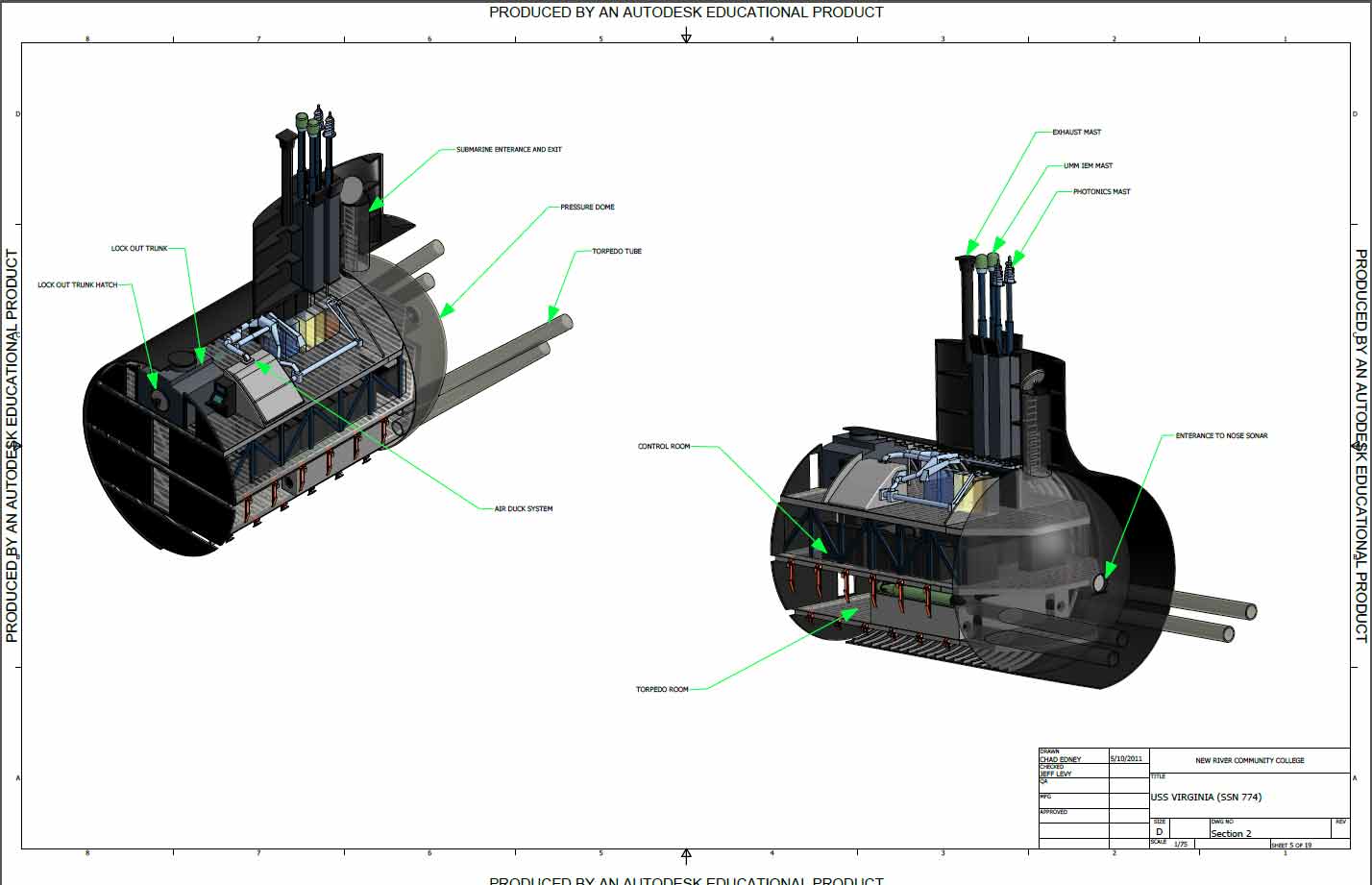

Section 2

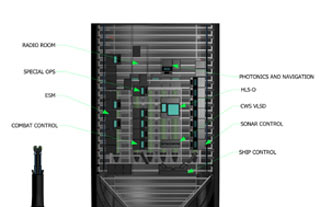

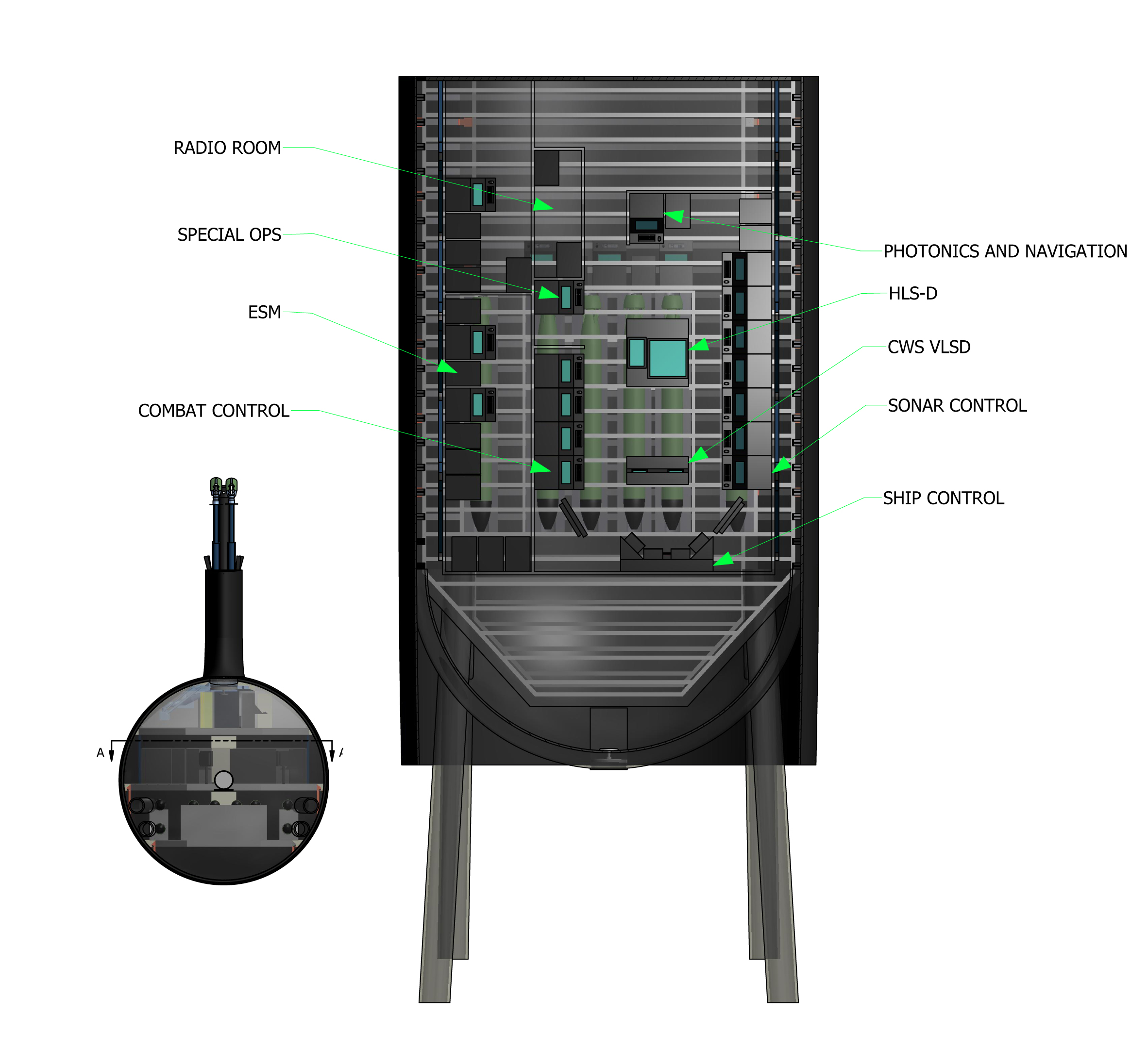

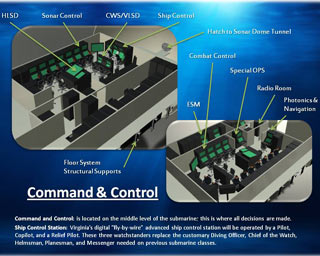

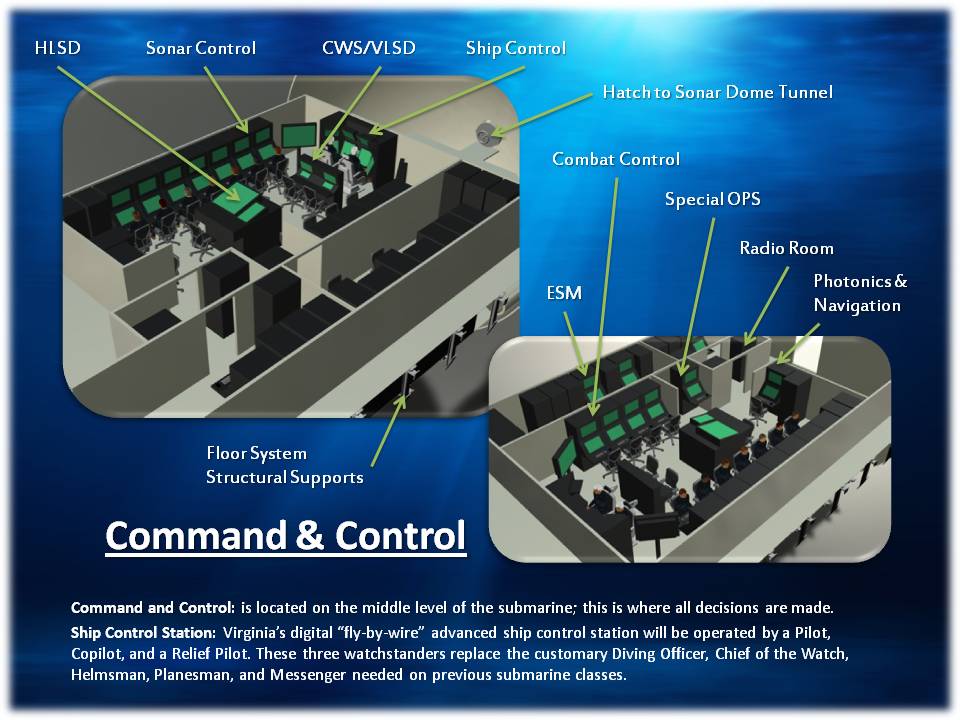

Command and Control

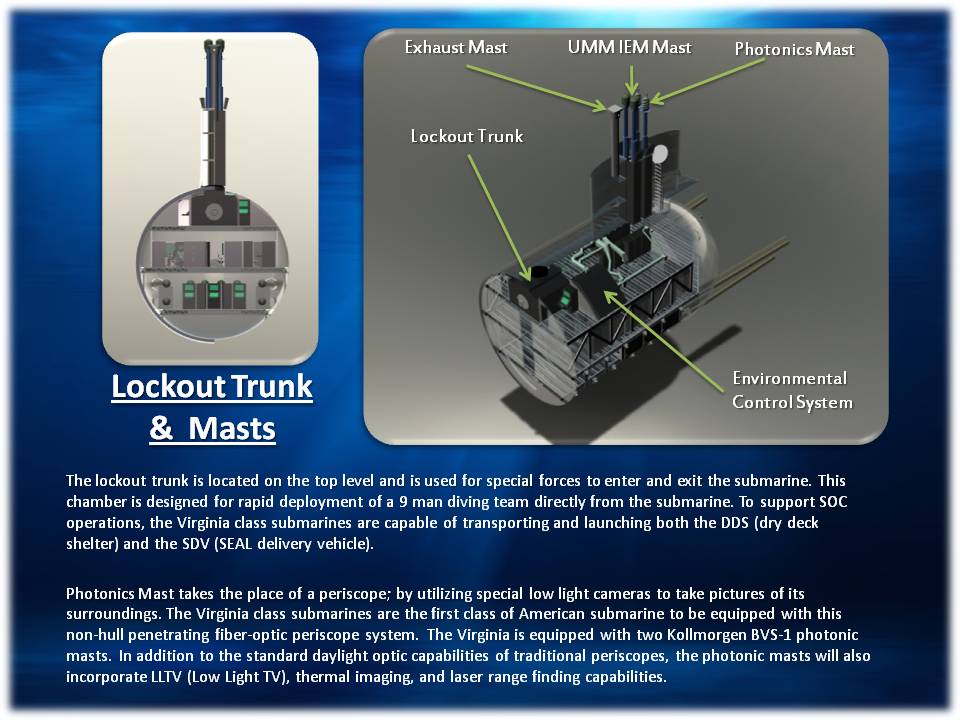

Lockout Trunk and Masts

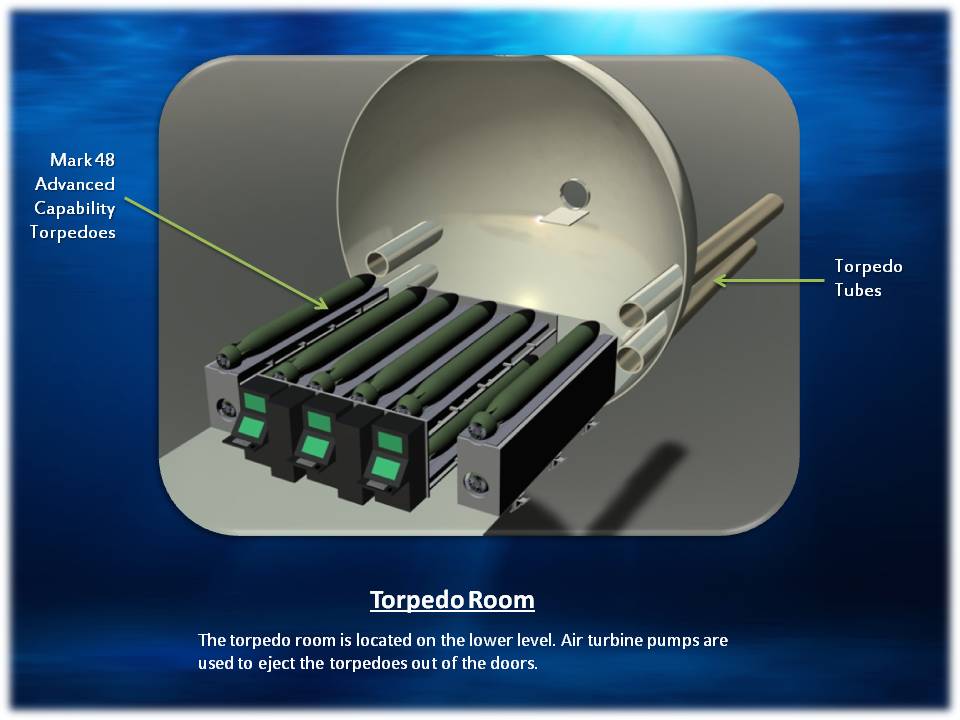

Tropedo Room

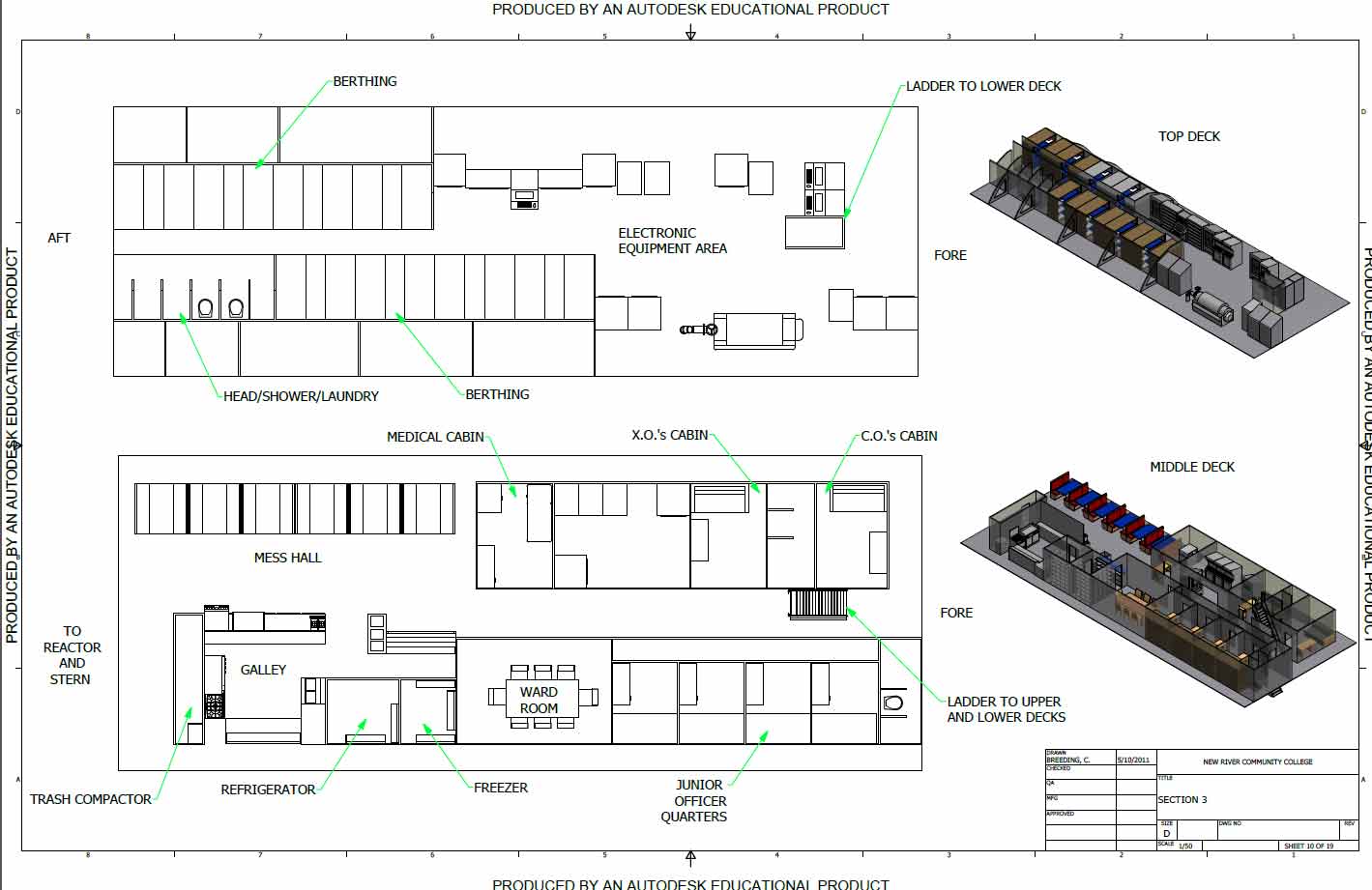

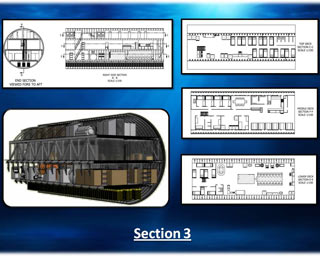

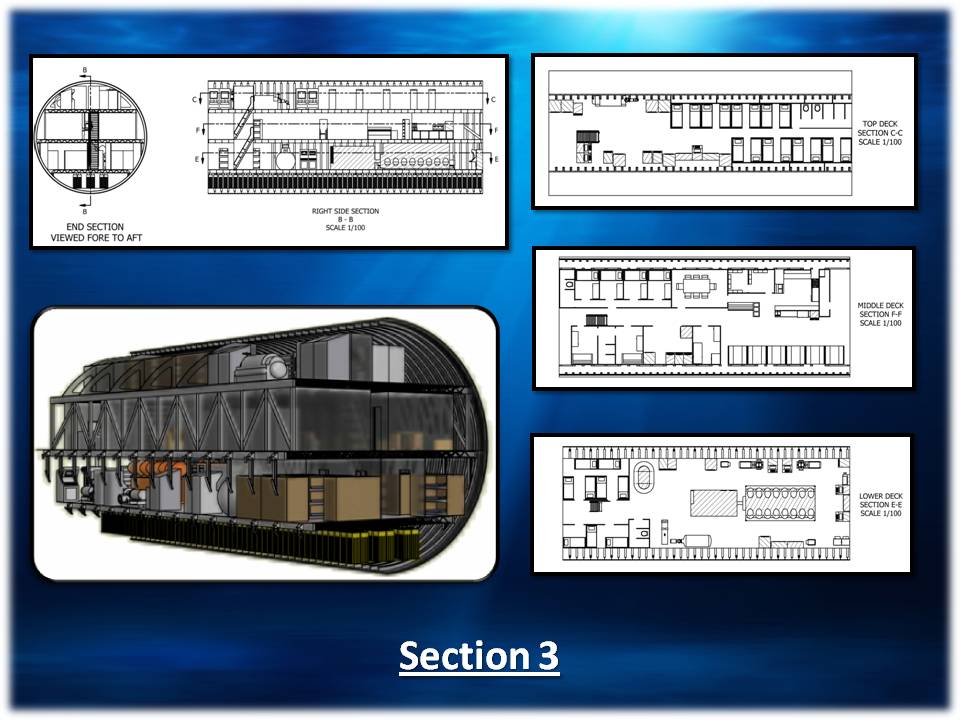

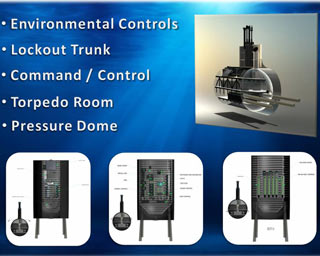

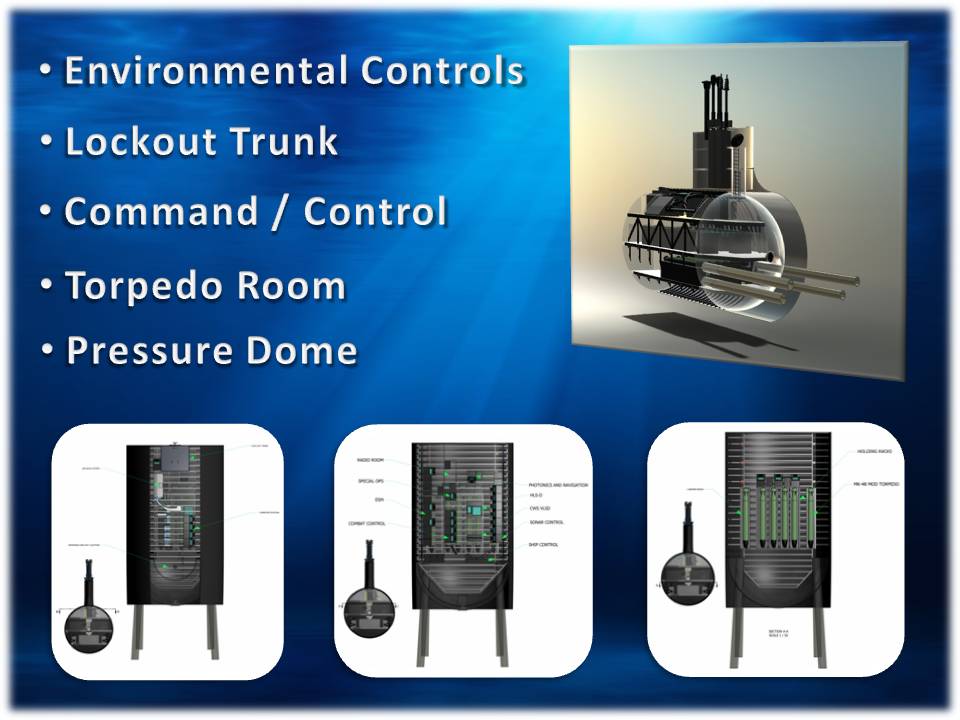

Section 3
Pressure Dome

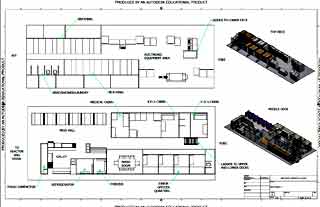

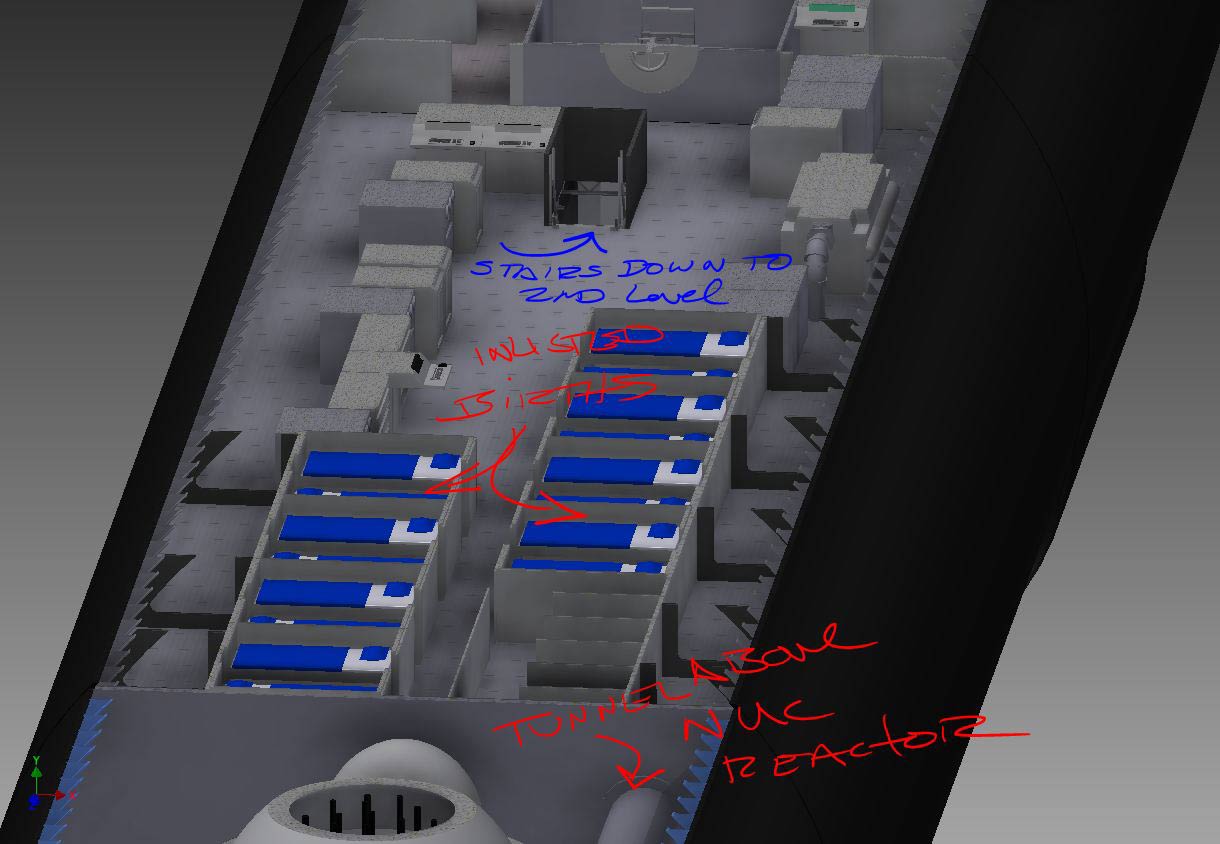

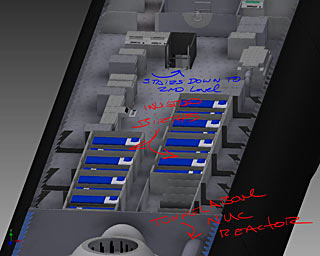

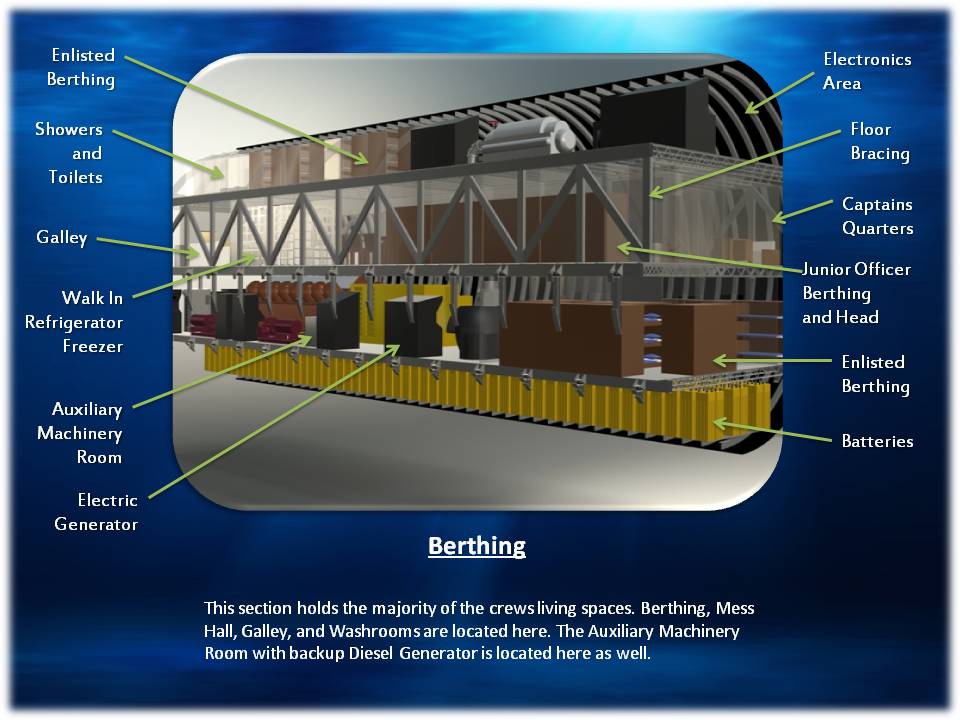

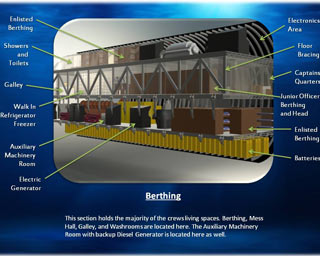

Berthing

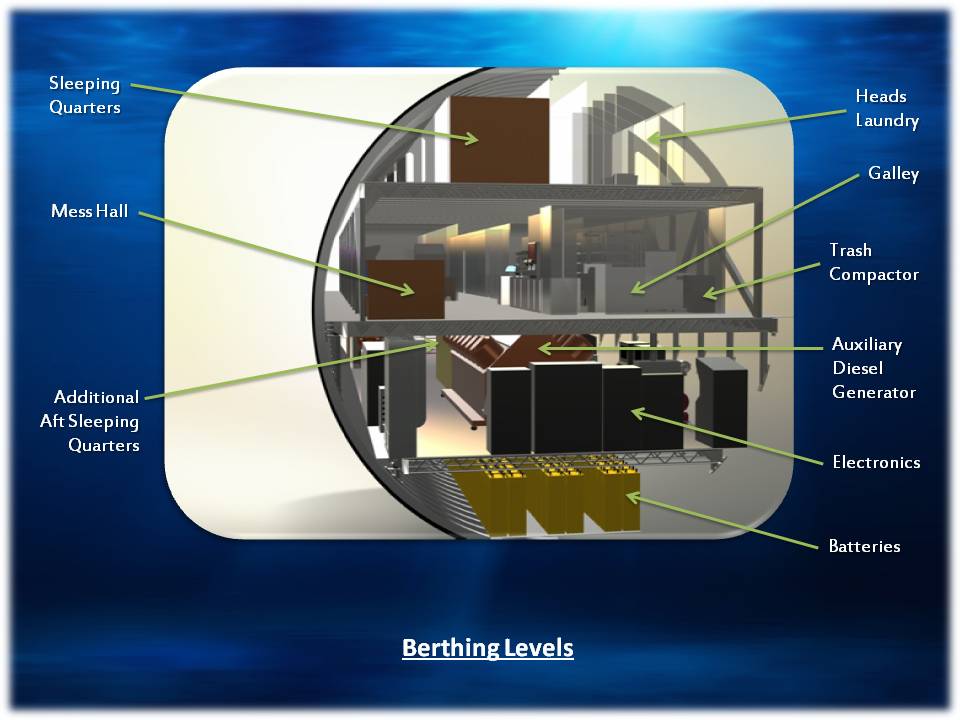

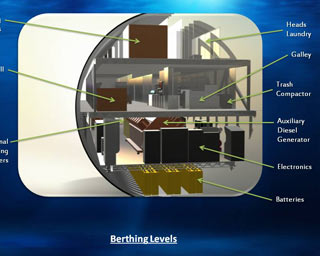

Berthing Levels

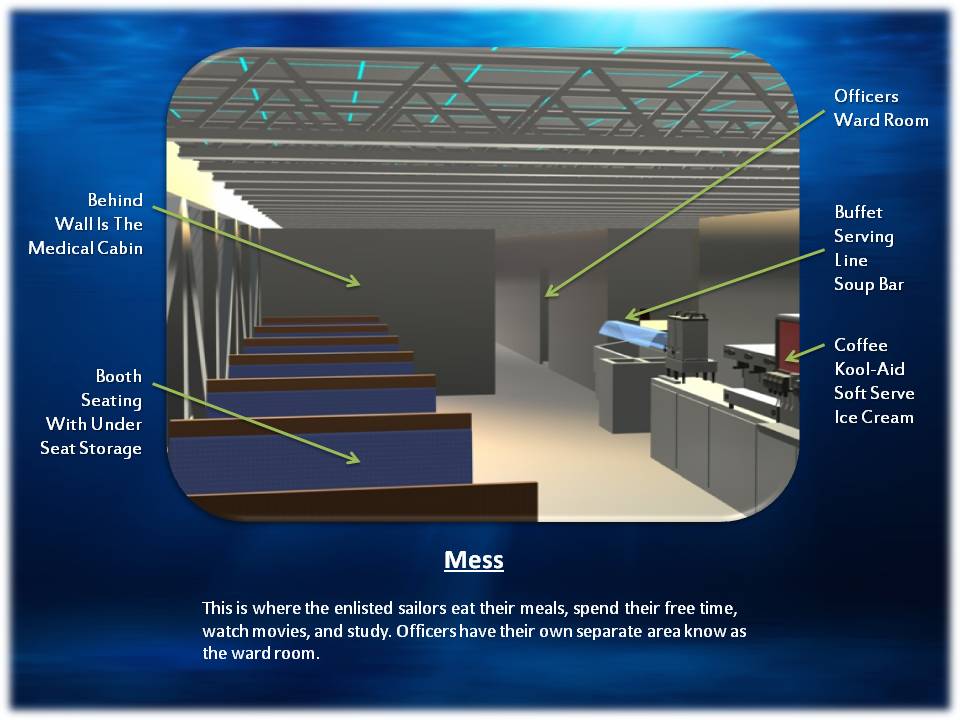

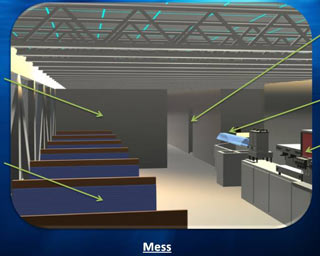

Mess

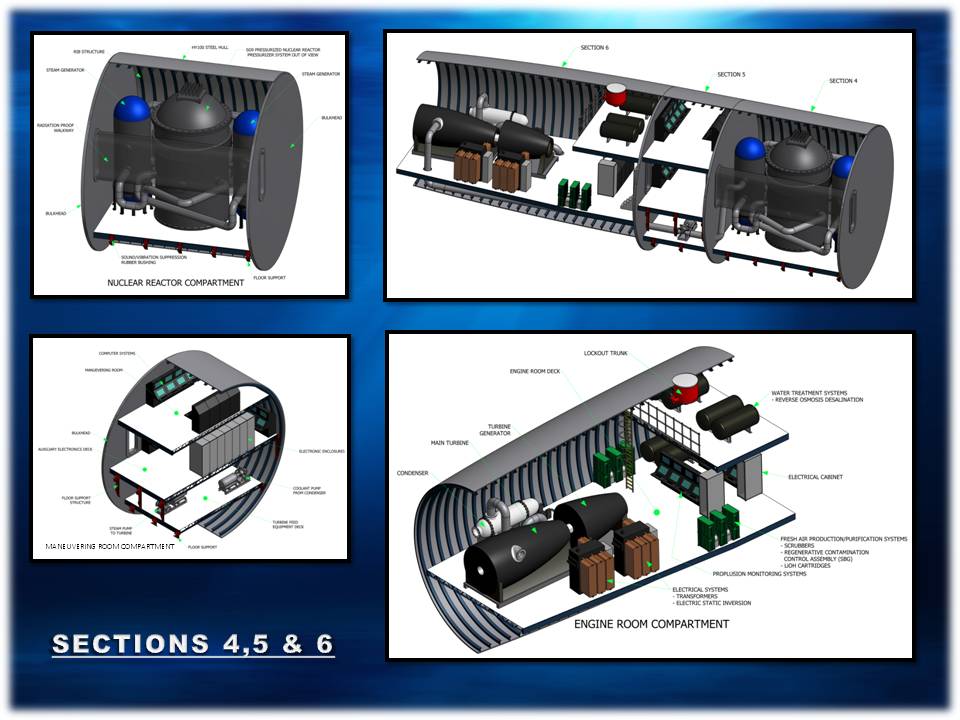

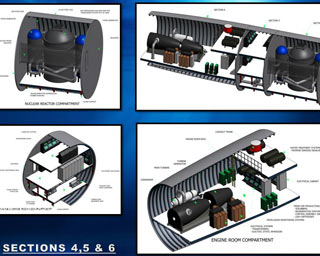

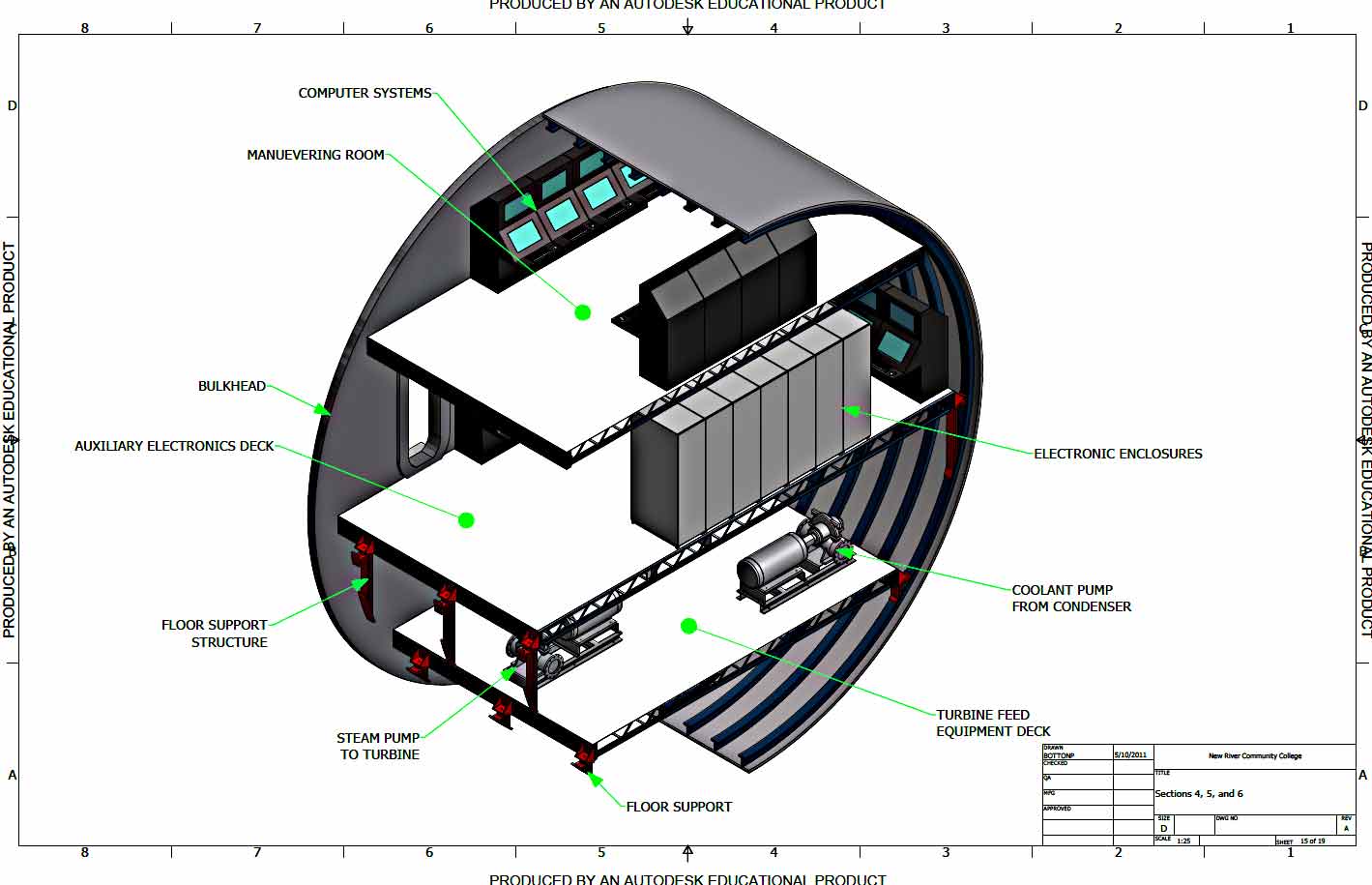

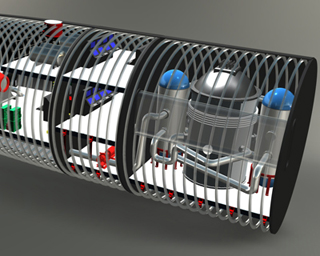

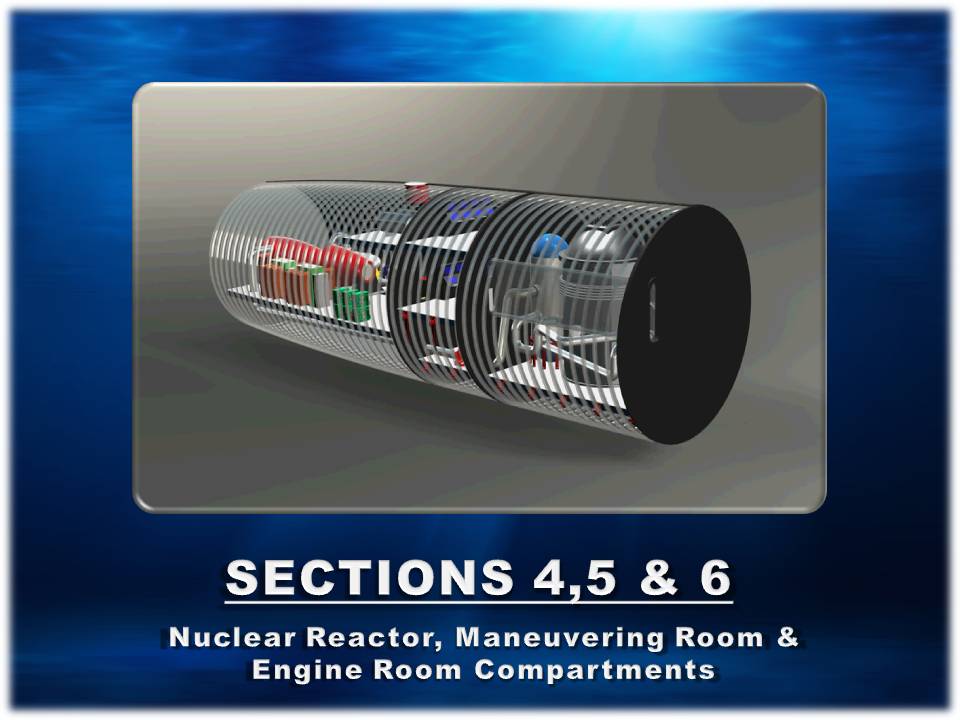

Sections 4,5 and 6
Sections 4,5 and 6

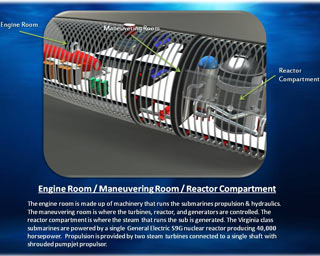

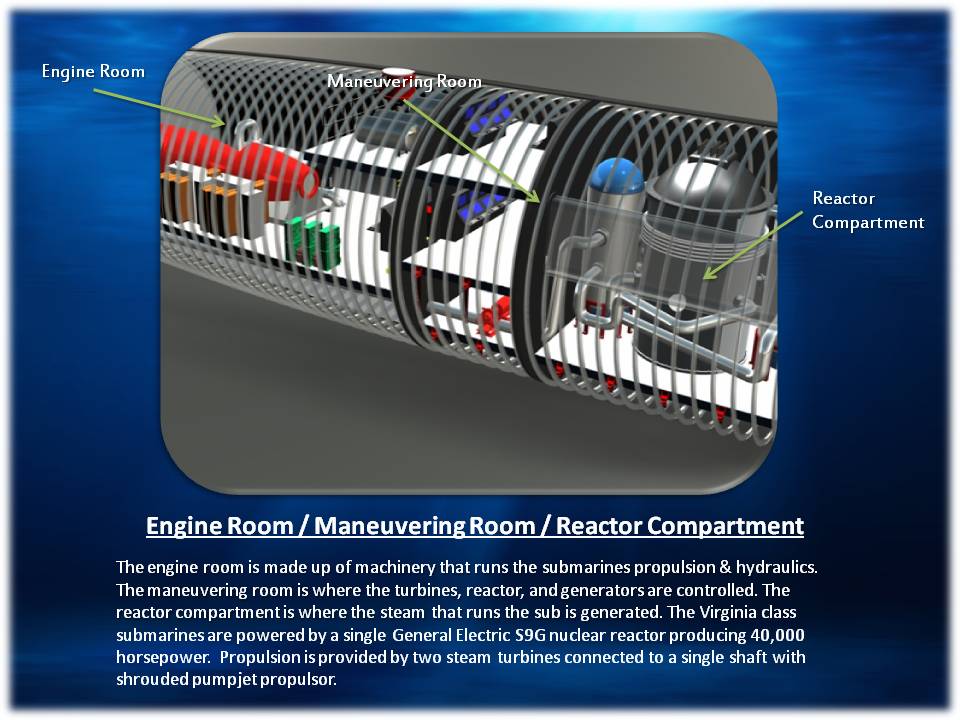

Engine Room/Maneuvering Room/Reactor Compartment

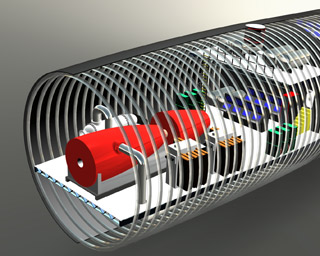

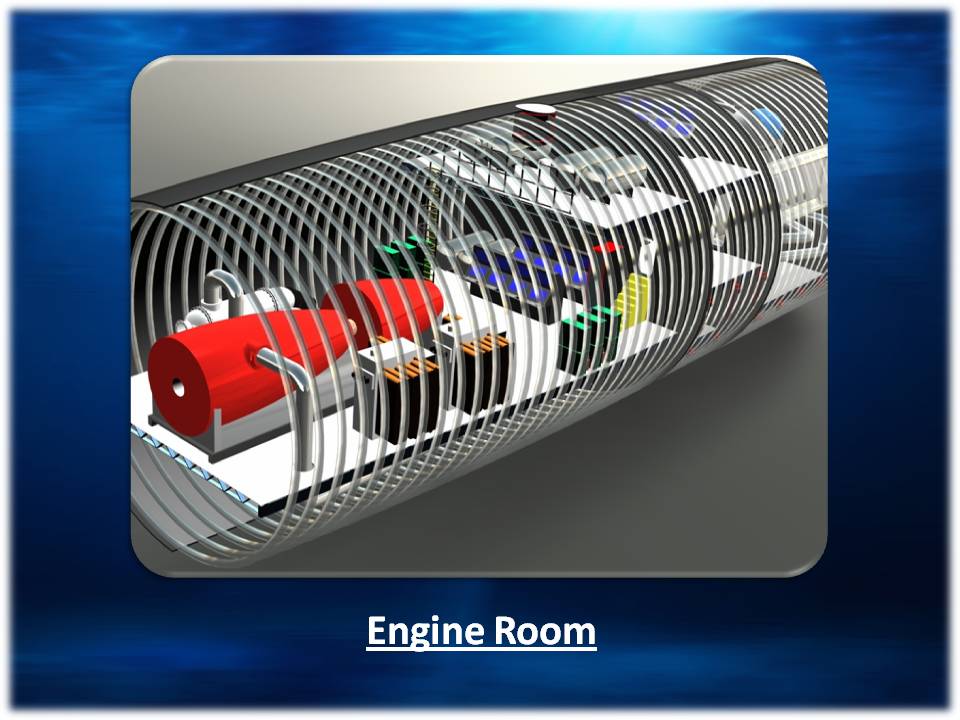

Engine Room

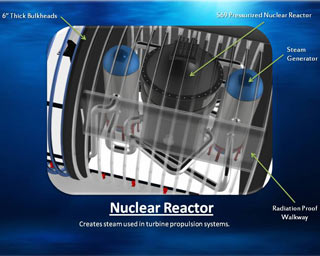

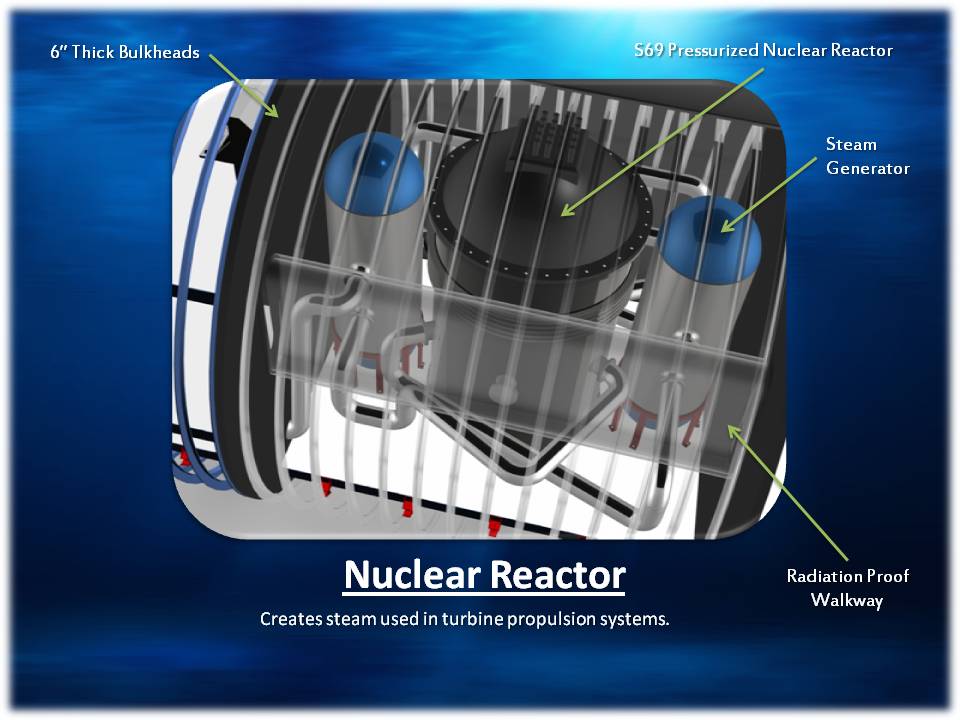

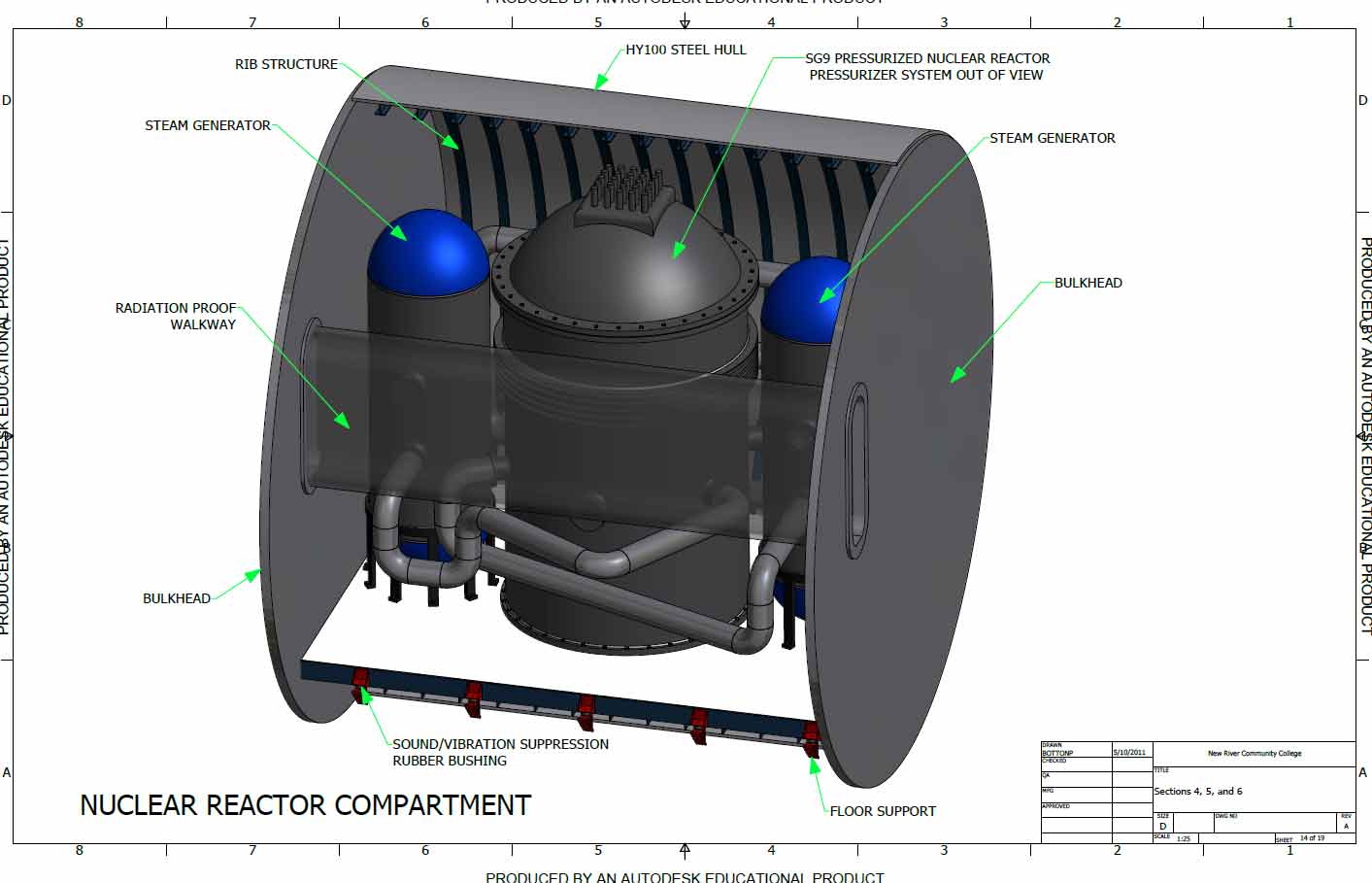

Nuclear Reactor

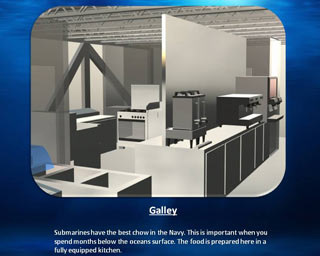

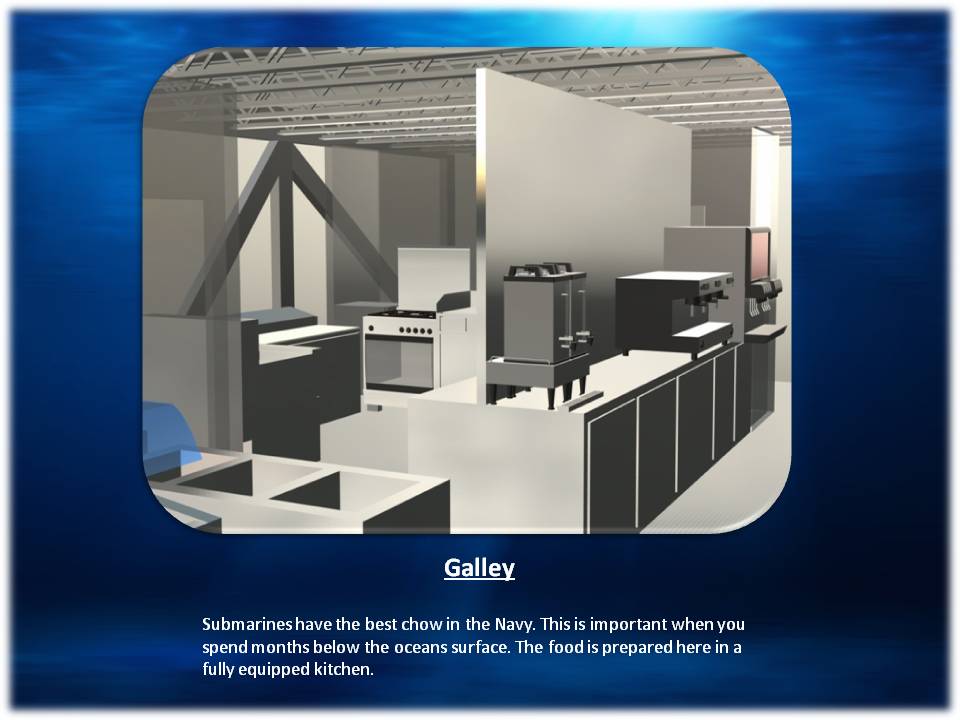

Galley

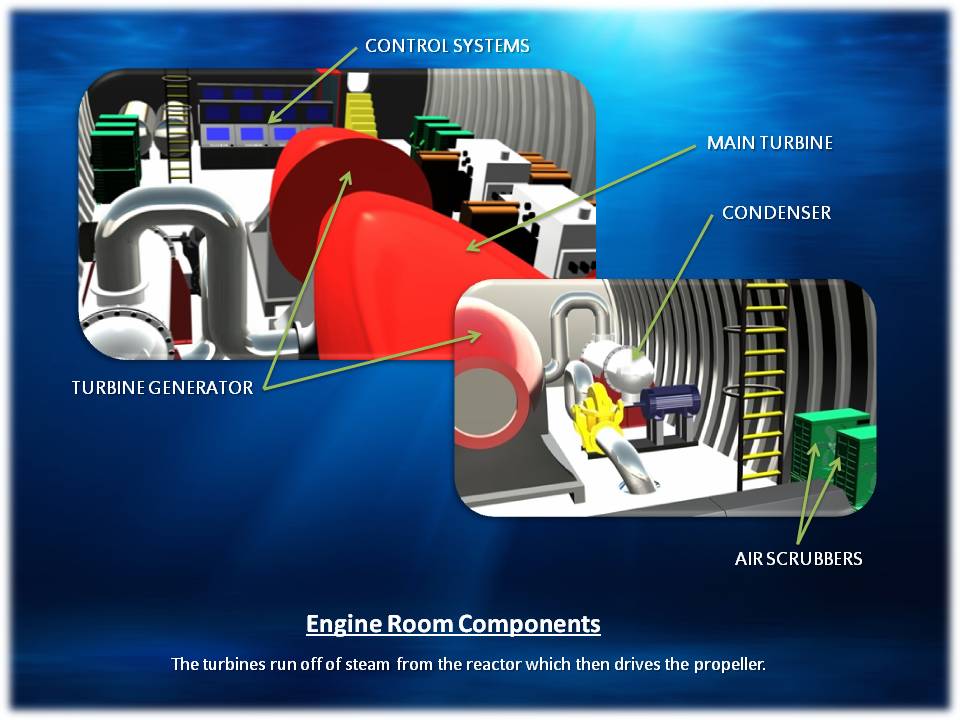

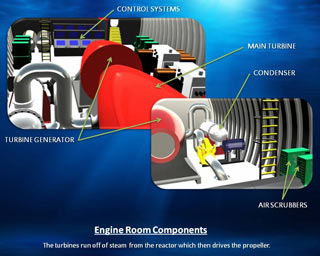

Engine Room Components

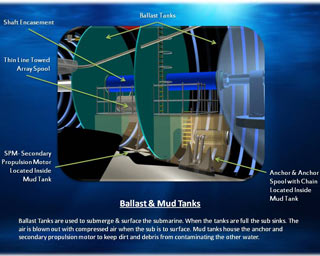

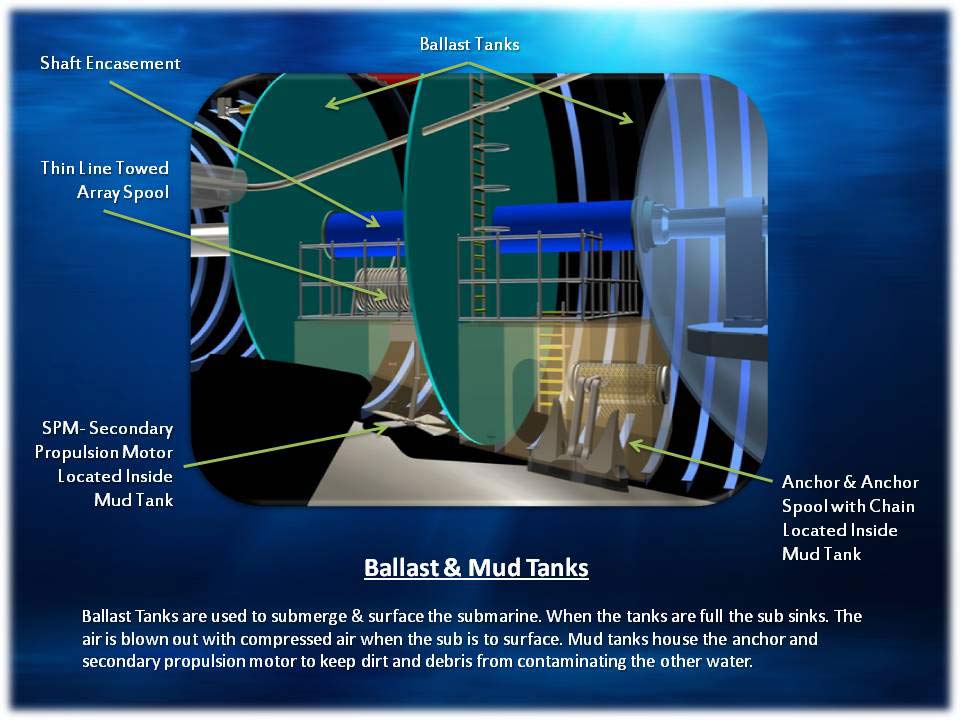

Ballast and Mud Tanks

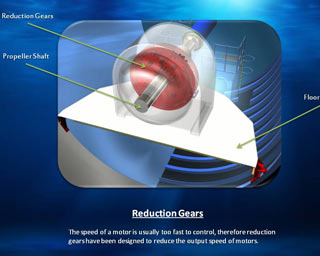

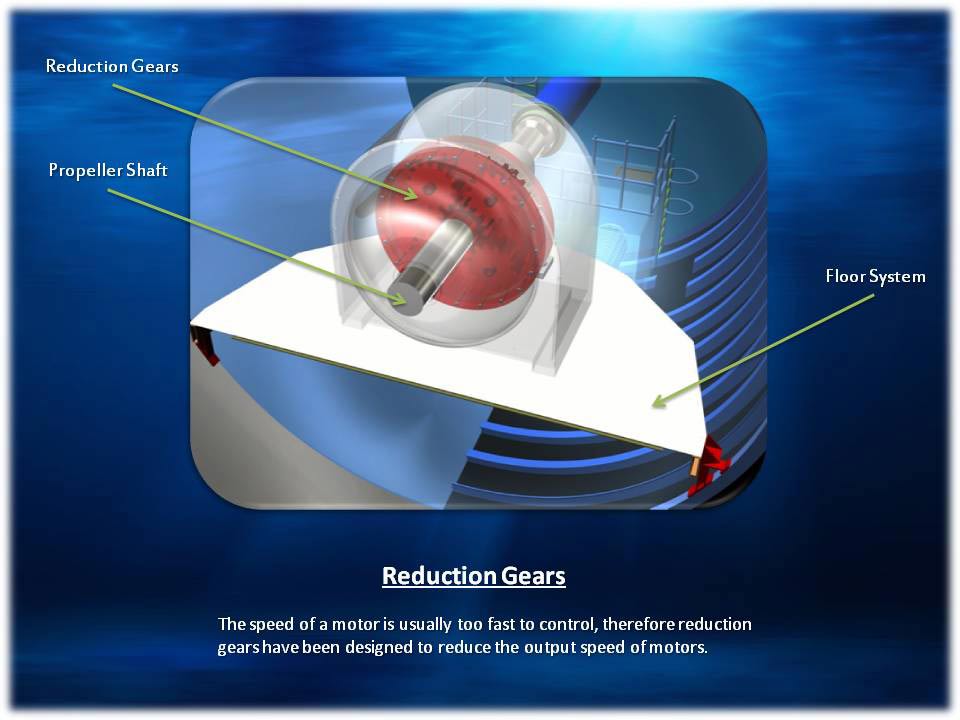

Reduction Gears

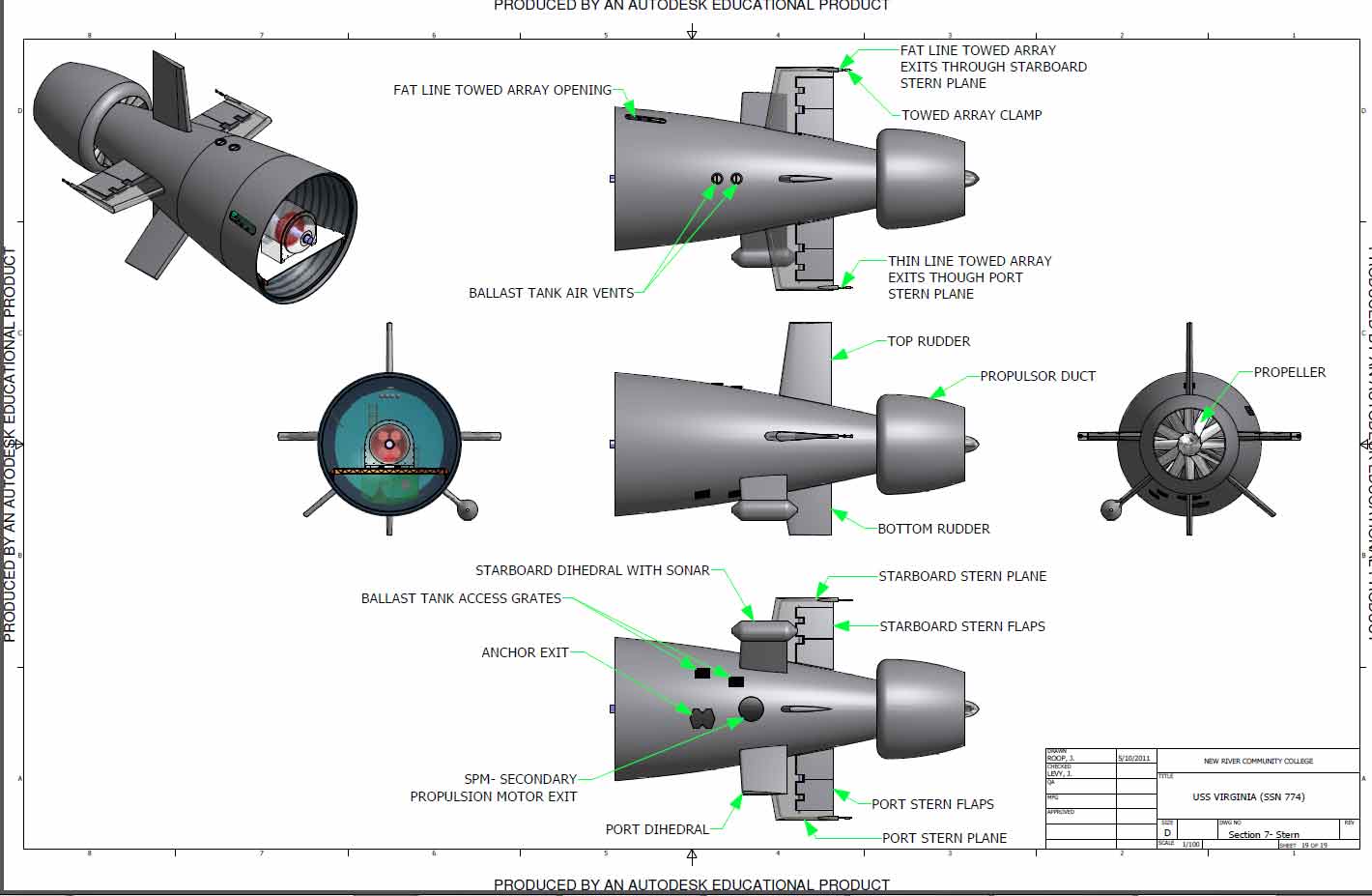

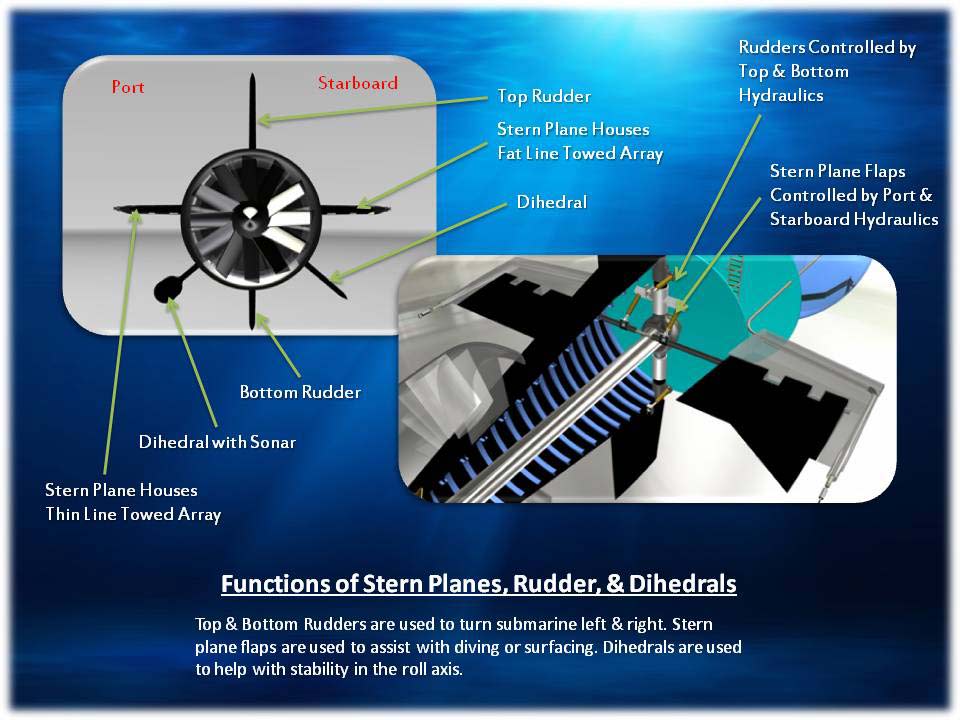

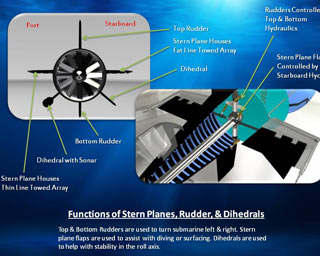

Functions of Stern Planes, Rudder, and Dihedrals

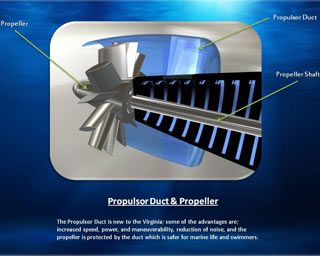

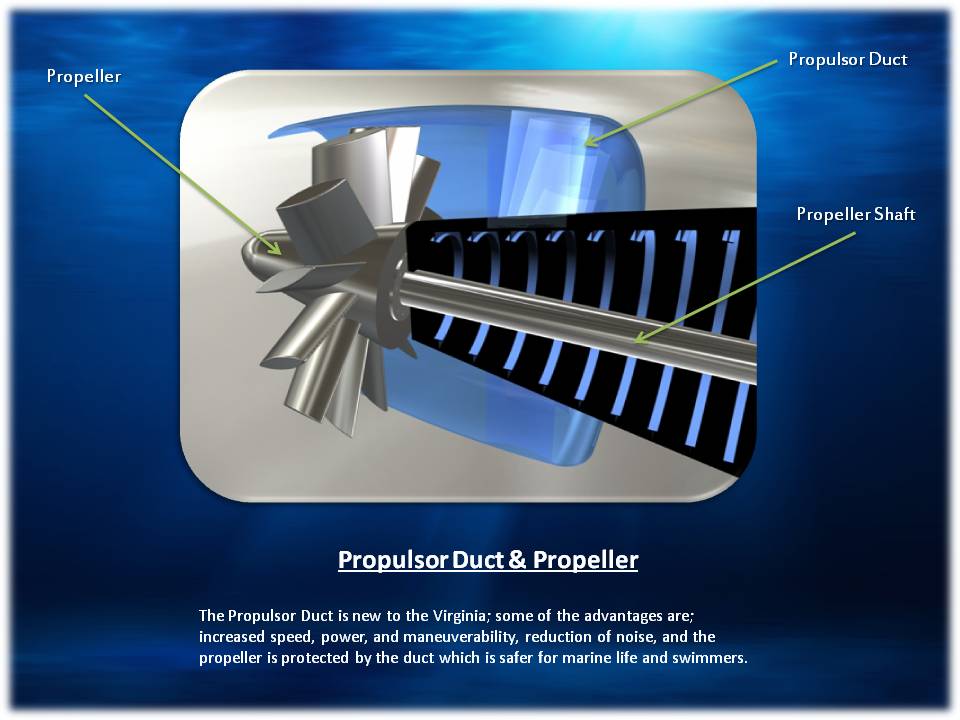

Propulsor Duct and Propeller
Submarine and American Flag

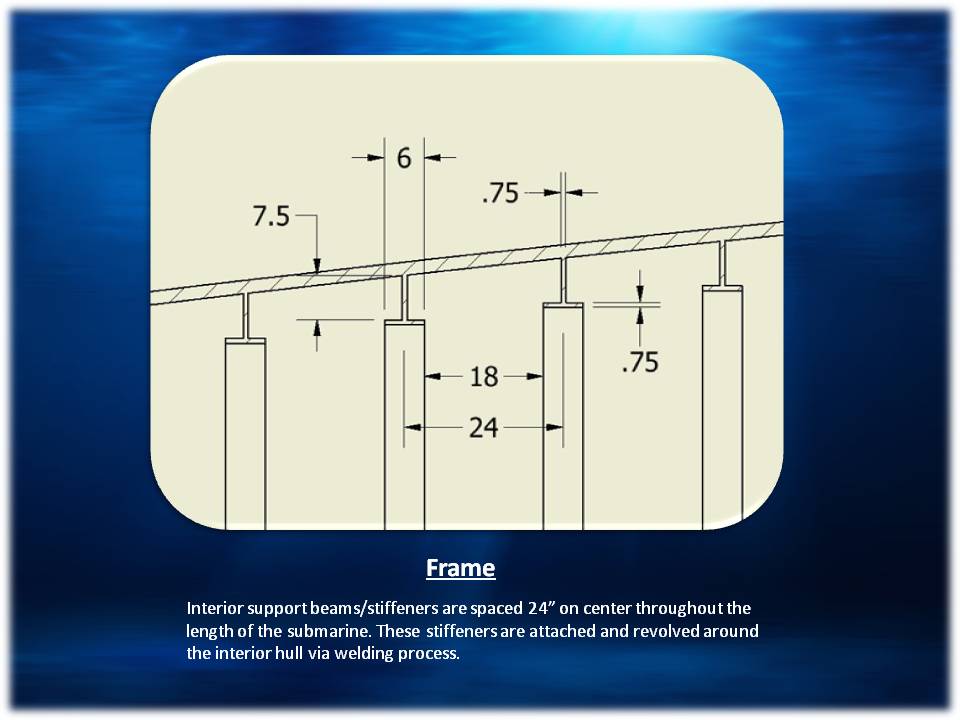

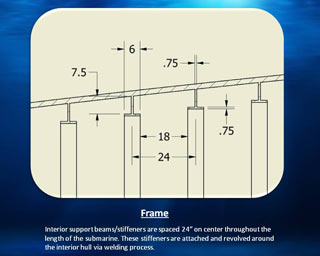

Section Frame
